Anritsu SC Series Screw-Mounted Surface Temperature Probes

Anritsu SC Series Screw-Mounted Surface Temperature Probes

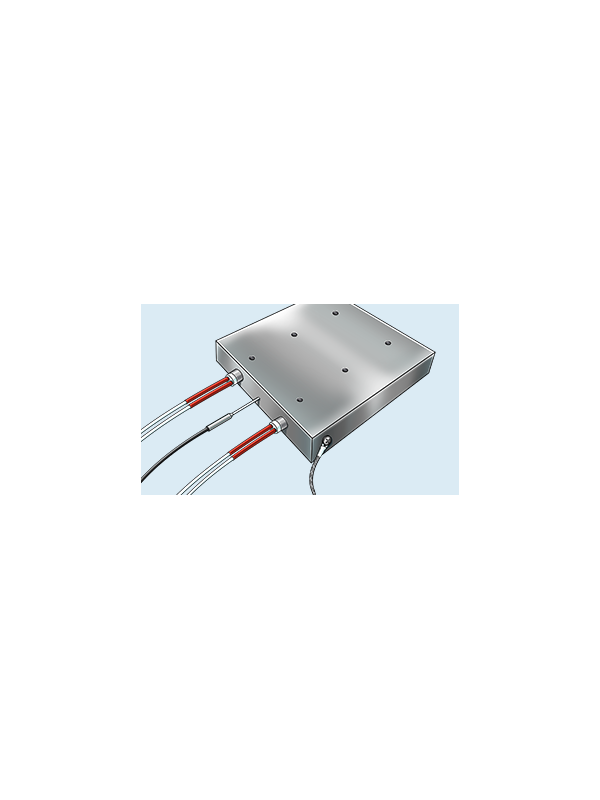

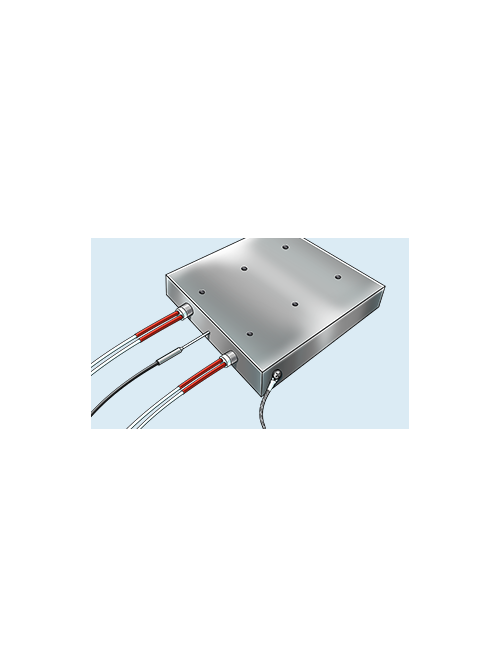

The Anritsu SC Series measures stationary surface temperature using a sensing element secured to the target with a screw.

  • M2, M3, M4 and M5 mounting sizes.
  • Type K and Type E thermocouple options.
  • Temperature ratings from −50°C to 150°C, 200°C, 300°C or 400°C, depending on the model.
  • Select the cable length and connector to suit your installation and instrument.

Anritsu SC Series Screw-Mounted Surface Temperature Probes

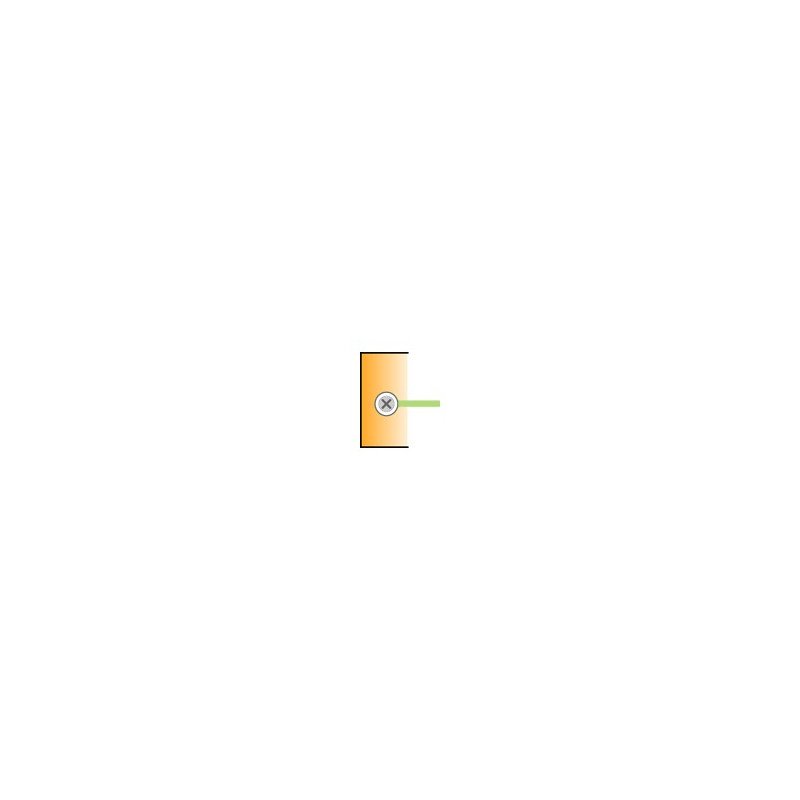

The Anritsu SC Series attaches to a stationary measurement surface using a screw. Select the mounting size and temperature rating to suit the installation, then match the thermocouple and connection to your instrument.

Key Features

  • Screw attachment for stationary surface measurements.
  • M2, M3, M4 and M5 mounting sizes.
  • Type K and Type E thermocouple options.
  • Model-dependent upper temperature limits of 150°C, 200°C, 300°C or 400°C.

Compare SC Probe Models

ModelScrew sizeTemperature rangeCable code
SC-21 M2 −50 to 200°C TA
SC-22 M2 −50 to 300°C GW
SC-31 M3 −50 to 150°C TS
SC-32 M3 −50 to 400°C SG
SC-41 M4 −50 to 150°C TS
SC-42 M4 −50 to 400°C SG
SC-51 M5 −50 to 150°C TS
SC-52 M5 −50 to 400°C SG

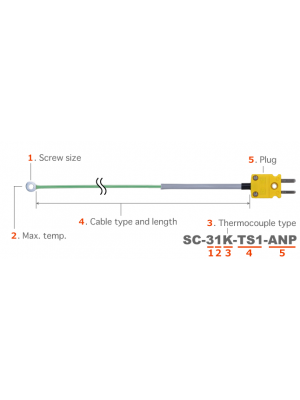

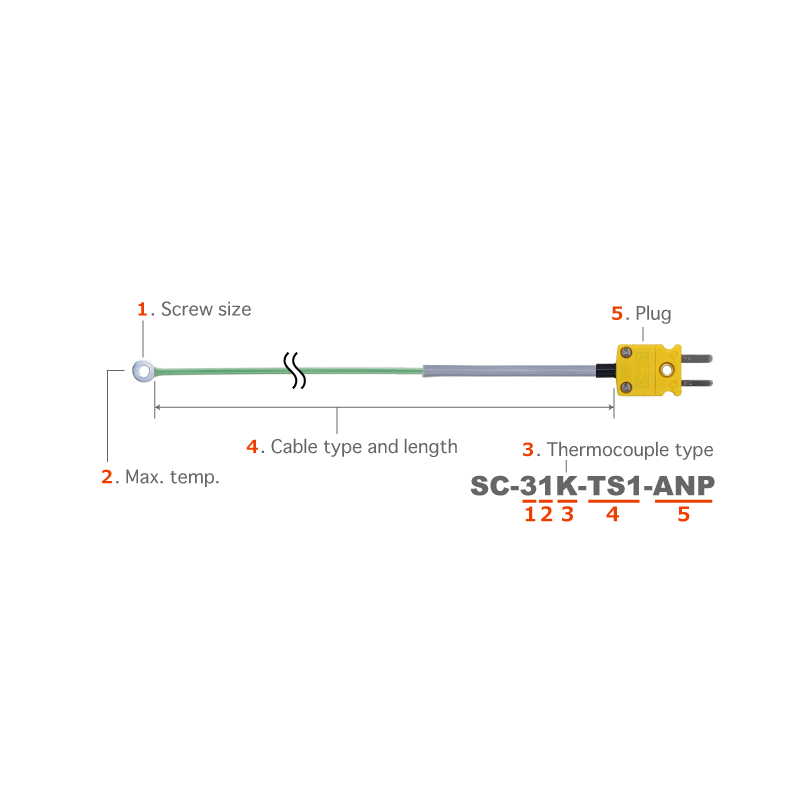

Probe Selection and Dimensions

Anritsu SC Series screw-mounted probe selection and dimensions

Model Details and Order Codes

The configurations below use a 1 m cable and an ANP miniature plug. Confirm the required cable length, thermocouple type and instrument connector before ordering.

M2 Mounting — SC-21 and SC-22

SpecificationSC-21SC-22
Screw size M2 M2
Type K example SC-21K-TA1-ANP SC-22K-GW1-ANP
Type E example SC-21E-TA1-ANP SC-22E-GW1-ANP
Temperature range −50 to 200°C −50 to 300°C

M3 Mounting — SC-31 and SC-32

SpecificationSC-31SC-32
Screw size M3 M3
Type K example SC-31K-TS1-ANP SC-32K-SG1-ANP
Type E example SC-31E-TS1-ANP SC-32E-SG1-ANP
Temperature range −50 to 150°C −50 to 400°C

M4 Mounting — SC-41 and SC-42

SpecificationSC-41SC-42
Screw size M4 M4
Type K example SC-41K-TS1-ANP SC-42K-SG1-ANP
Type E example SC-41E-TS1-ANP SC-42E-SG1-ANP
Temperature range −50 to 150°C −50 to 400°C

M5 Mounting — SC-51 and SC-52

SpecificationSC-51SC-52
Screw size M5 M5
Type K example SC-51K-TS1-ANP SC-52K-SG1-ANP
Type E example SC-51E-TS1-ANP SC-52E-SG1-ANP
Temperature range −50 to 150°C −50 to 400°C

Cable Options

CodeConstructionApplicable models
TA Fluororesin-insulated thermocouple SC-21
GW Glass fibre SC-22
TS Silicone rubber SC-31, SC-41, SC-51
SG Glass fibre with stainless steel SC-32, SC-42, SC-52

Measurement Notes

  • Tolerance: ±3°C at 100°C for the manufacturer’s example configurations. Tolerance changes with temperature; do not apply this figure across every operating condition.
  • Response: the specified 5 seconds is a 99% response test in boiling water or vapour. Response after installation on a surface can differ.
  • Temperature limits: the sensing section, cable and connector must each remain within their permitted conditions.
  • Construction: the screw-setting part is stainless steel. Anritsu lists SC probes as non-repairable and does not give a standard durability period for this special application.

Choosing the Right Screw-Mounted Probe

  • Mounting point: check the screw size, available contact area and clearance for the cable exit.
  • Surface contact: review the surface finish and how the sensing section will seat against the target. The mounting arrangement affects heat transfer.
  • Operating conditions: provide the normal temperature, expected peaks, vibration and any exposure to liquids or cleaning agents.
  • Cable route: identify the required reach and support the cable so it does not pull on the sensing point.
  • Instrument: confirm the thermometer or data logger’s thermocouple input and plug type.

Existing Seacom Order References

These references are retained from the previous listing. The final *** is a placeholder; confirm the required termination to complete the order code.

Model / referenceModel / reference
SC-31K-TS1-*** SC-32K-SG1-***
SC-41K-TS1-*** SC-42K-SG1-***
SC-51K-TS1-*** SC-52K-SG1-***

Related Anritsu Instruments and Probes

Confirm the complete probe and instrument combination before ordering.

Need Help Selecting an SC Probe?

Contact Seacom Process Instruments Sdn Bhd with the screw size, target material, temperature range, cable length and instrument model. Include a photograph or drawing of the mounting point, or the complete reference of the probe you are replacing.

Download

  SC Series Catalogue   (695.2k)
