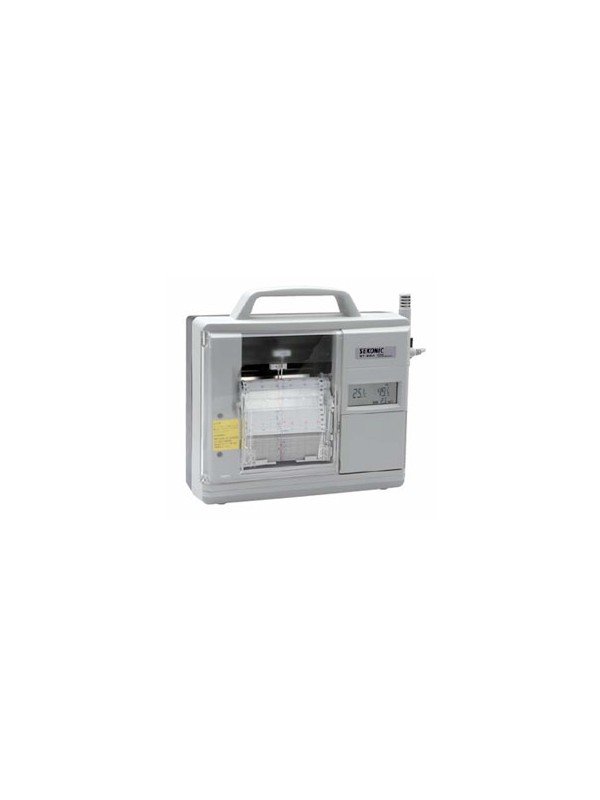

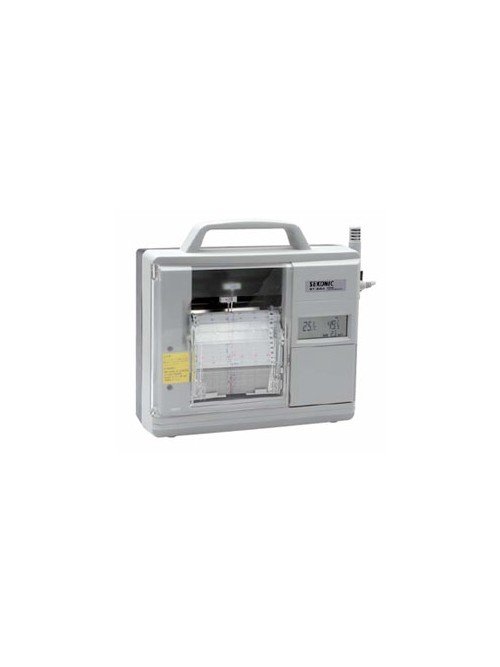

Digital ThermoHygrograph With Memory Card & Time Print ST-50M

Sekonic ST-50M is microprocessor based thermohygrograph. Apart from measuring and recording temperature and relative humidity, it also has large LCD display and alarm output. Remote application is applicable with its electronic remote sensor. ST-50M comes with extra memory slot for digital recording and time printing on chart.

Sekonic ST50
  • Long term continuous recording
  • SD Card Recorder Built-in
  • Displays and records temperature and humidity simultaneously.
  • With an electronic sensor of excellent responsiveness, it has been given a compact body for indoor installations.
  • Best suited for general environmental measurement, and monitoring in greenhouses, storage warehouses, laboratories and so on.


Sekonic ST50

Measurement
Methods
Temperature:
Humidity:
Semiconductor Sensor
High Molecular Electrostatic Capacity Sensor
Measurement
Ranges
Temperature:

Humidity:
-20 to 50℃ / -4 to 122゜F
-20 to 80℃ / -4 to 176゜F(with sensor Extension Cable)
20 to 90%RH(No Condensation)
0 to 100%RH(with Sensor Extension Cable, No Condensation)
Display(LCD)Resolution
Temperature:
Humidity:
Others:
- Dew Point
- Absolute Humidity
- Time
- LCD Display
0.1℃ / 0.1゜F 0.1%RH
-20 to 80℃ / -4 to 176゜F
0 to 100%RH
(-80 to 80℃ / -112 to 176゜F)
(0 to 290g/㎡)
Year, Month, Date, Time(24 hours)
Battery Checker, Alarm, Chart Speed, Setup Mode, etc
Recording
(Chart form)
Chart Paper
Working Width
Feeding
Feeding Accuracy
Z-Fold Type, 12m / 39.37feet(Length)113㎜ / 4.45inch(Width)
100㎜(3.94inch)for record both Temperature and Humidity Sprocket
± 3㎜ / 0.12inch(at 12m / 39.37 feet. Long Recording)
AccuracyTemperature
Humidity
±1.0℃ / ±1.8゜F at 0 to 50℃ / 32 to 122゜F
± 3 %RH(at 25℃ / 77゜F)
*Accuracy Guarantee Range on Humidity is 10 to 90%RH
CalibrationTemperature
Humidity
1 Point
1 or 2 Point
Recording RangeUser Selectable among
①②③ with Switch
*Temperature
①-20 to 80℃ / -4 to 176゜F
② 0 to 50℃ / 32 to 122゜F
③±10℃,±25℃,±25゜F,or 50゜F
*Humidity
① 0 to 100%RH
②±10%RH or ±25%RH
StorageStorage Media
Capacity of recording
SD CARD(128MB to 2 GB)*1
Maximum 16 months(Recorded per 1 minutes)
Environmental
Conditions
Ambient Temperature
Humidity
-20 to 50℃ / -4 to 122゜F
20 to 90%RH (No Condensation)
Power
Requirement
Battery
AC Adaptor Inlet
LR20, 1.5V x 4 pcs
Input 9 V 500mA
Dimension
Weight
W x H x D(mm / inch),
㎏, lbs(Without Batteries)
300 x 245 x 105 ㎜ / 11.8 x 9.6 x 4.1 inch,
2.1㎏ 4.6lbs
Other Features Desktop or Wall Mount Socket ( 2 holes)
3 ㎜(0.12 inch)marking on Temperature / Humidity Recording Pen Position Adjustment Automatically, or with Switch
Standard Accessories LR20, 1.5V x 4
1 Pcs Chart Paper
1 Pcs Blue / Red Fiber Tip Pen
Option Accessories Sensor Extension Cable
( 5 m / 16.40feet, 20m / 65.62feet, 50m / 164.04feet)
Chart Paper( 5 Sheets / Box)
Chart Pen( 2 Blue & 2 Red pens)/ Box

・Features and Specifications are subject to change without notice.
・*1:This SD recorder is not supported SDHC format(4GB or more)



 Name of productModel numberSupplement
OptionExtension Cable 5M HE04
Extension Cable 20M HE05
Extension Cable 50M HE06
external control output unit HE09 One point of common output
ConsumablesUsual chart paper HE12 / HE0140010 / HEGA  5pcs/set
cartridge pen HE13 / HEFA15330 / HEFA 2red & 2 blue/set
Clean chart paper HE11 5pcs/set
