DeltaTrak In-Transit Temperature Loggers and Recorders
Choose a transit temperature logger or recorder to document conditions during shipment. The DeltaTrak range below offers two record formats: a physical chart from the 16000 Series, or electronic reports from the FlashLink Mini PDF.
Compare Transit Loggers and Recorders
| Selection point | 16000 Series | FlashLink Mini PDF 31010 |
|---|
| Instrument type |
Disposable temperature chart recorder |
Single-use electronic temperature logger |
| Record format |
Paper strip chart |
PDF and CSV via USB |
| Recording period |
5–90 days, depending on model |
Up to 85 days |
| Temperature coverage |
Three ranges; see model table below |
−40 to 60°C |
| Receiving workflow |
Retrieve and retain the chart |
Download and save electronic files |

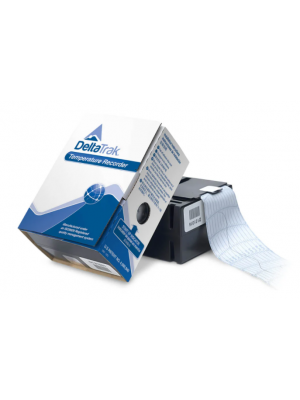

DeltaTrak 16000 Series Paper Chart Recorders
The DeltaTrak 16000 Series produces a paper record of temperature conditions during transport and storage. These disposable strip chart recorders are used with temperature-sensitive shipments where the receiver needs a physical record to review and retain.
Select the recorder by both journey duration and temperature range. Model 16000 is the 5-day standard-range version; the wider series includes longer recording periods and high- and low-range options.
16000 Series Features
- Paper temperature record with both Celsius and Fahrenheit scales.
- Recording periods from 5 to 90 days, depending on model.
- Pull-tab activation with a viewing port to check operation.
- Individual serial number for matching the recorder to shipment records.
- 36-inch strip chart for reviewing temperature changes during the journey.
Model Selection by Recording Duration
| Duration | Standard range
−29 to 38°C | High range
0 to 65°C | Low range
−40 to 27°C |
|---|
| 5 days |
16000 |
16002 |
16004 |
| 10 days |
16100 |
16102 |
16104 |
| 20 days |
16200 |
16202 |
16203 |
| 30 days |
16300 |
16302 |
— |
| 40 days |
16350 |
— |
— |
| 60 days |
16400 |
16402 |
16403 |
| 90 days |
16500 |
16502 |
— |
— indicates that no model is listed for that combination. Confirm availability of the required model when ordering.
16000 Series Specifications
| Specification | Details |
|---|
| Published temperature accuracy |
±2°F (±1°C) or better |
| Sensor |
Bimetal coil |
| Chart |
Pressure-sensitive strip, 36 inches (91.4 cm), dual °F/°C scale |
| Drive |
Solid-state quartz motor |
| Clock accuracy |
Average ±20 seconds per month |
| Battery type |
Standard: AA carbon zinc; high range: AA alkaline; low range: AA lithium |
| Published shelf life |
3 years |
| Dimensions |
5.5 × 4 × 2.5 inches (L × W × H) |
| Weight |
198 g |

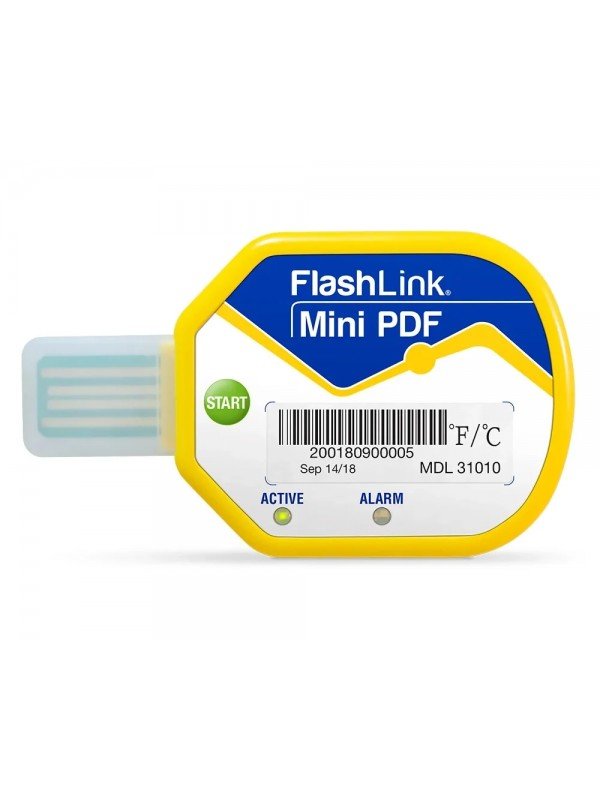

FlashLink Mini PDF In-Transit Temperature Logger
The FlashLink Mini PDF 31010 suits shipments requiring electronic records. Its built-in USB connection provides reports without installing dedicated logger software.
| Specification | FlashLink Mini PDF 31010 |
|---|
| Sampling interval |
10 minutes |
| Memory |
12,288 readings |
| Start delay |
30 minutes |
| Standard alarm configuration |
No alarms; confirm any required alarm configuration before ordering |
| Protection |
IP54 with silicone cap fitted |
| Published shelf life |
18 months |
Specify the recipient’s report requirements and computer connection when selecting this option. Confirm the supplied configuration before dispatch.
FlashLink Mini PDF USB Logger Model Selection
| Model | Alarm configuration | Logging interval | Data capacity | Maximum trip duration |
|---|
| 31010 |
No alarms |
10 minutes |
12,288 readings |
85 days |
| 31010-25 |
Low alarm: 7.2°C (45°F) |
10 minutes |
12,288 readings |
85 days |
| 31010-26 |
Low alarm: 5.0°C (41°F) |
10 minutes |
12,288 readings |
85 days |
All three models provide °C/°F reports. Select the complete model code for the required alarm setting and confirm availability when ordering.
Choosing a Transit Logger or Recorder
- Transit period: allow for collection, storage, customs clearance and delivery delays when selecting the recording duration.
- Temperature coverage: choose a range that covers the expected shipment conditions and possible excursions.
- Placement: agree where the recorder will travel within the load. The recorded temperature reflects conditions at that location, not necessarily the temperature inside every product.
- Traceability: record the serial number alongside the shipment reference and activation details.
- Receiving procedure: ensure the receiving team knows how to retrieve and retain the paper chart or electronic report.
Need Help Selecting a Transit Logger or Recorder?
Contact Seacom with your shipment temperature range, expected journey duration, quantity and preferred record format. For repeat orders, include the existing logger or recorder model number so we can check the appropriate option.
