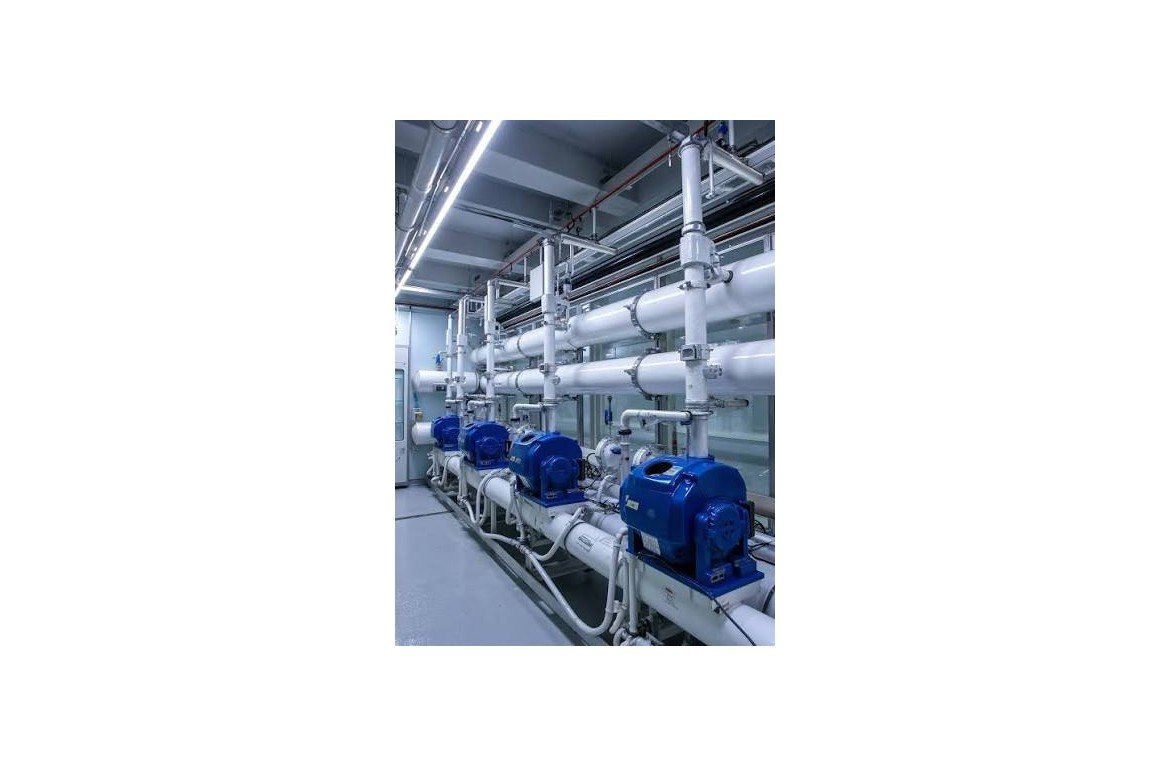

Choosing Flow Meters for Data Center Cooling Systems
Choosing a Flow Meter for Your Data Centre Cooling Circuit
A cooling-water pipe can be the correct size and still deliver less flow than the equipment needs. A pump-running signal does not confirm how much water reaches a particular branch or heat exchanger.
Flow meters help data centre operators measure cooling-water delivery and investigate changes in system performance. Selecting the right instrument starts with the fluid, operating flow range and installation location.
Seacom Process Instruments supports flow measurement requirements for data centres in Malaysia. We can review your cooling-system specification and help identify suitable instruments, including the Badger Meter ModMAG M2000 for compatible conductive liquids.
Where Is Flow Measurement Useful?
| Application | What the measurement helps assess | What to confirm |
|---|---|---|
| Chilled-water distribution | Water delivery through main headers and selected branches. | Minimum and maximum flow, pipe size and available installation space. |
| Chillers and heat exchangers | Flow through equipment under different operating conditions. | Required measurement range, fluid properties and equipment connections. |
| Cooling towers and make-up water | Circulation or incoming water volume, depending on the measurement point. | Water quality, totalisation requirements and operating conditions. |
| Liquid-cooling and CDU circuits | Coolant delivery on the selected side of the heat exchanger. | The actual coolant formulation, conductivity, cleanliness and material compatibility. |
The facility-water side and equipment-coolant side may have different requirements. Identify the exact circuit before selecting a meter; a suitable chilled-water instrument is not automatically suitable for every direct-to-chip or immersion-cooling fluid.
Electromagnetic or Ultrasonic Flow Measurement?
Electromagnetic Flow Meters for Conductive Liquids
An electromagnetic flow meter, also called a magmeter, measures liquids that meet its electrical-conductivity requirements. It is a useful option to review for permanent measurement of compatible cooling-water services.
The selected meter must suit the fluid, pressure, temperature and installation. Confirm full-pipe operation, grounding, wetted materials and the manufacturer's requirements for nearby fittings.
Clamp-On Ultrasonic Flow Meters for Existing Pipework
Clamp-on ultrasonic instruments use sensors mounted outside the pipe. They can be useful when cutting into an operating system is undesirable or when an existing circuit needs investigation.
Suitability depends on the pipe material, dimensions, lining, fluid and acoustic conditions. Transit-time instruments normally need a full pipe and a sufficiently clean liquid with limited entrained gas. External mounting does not remove the need for careful installation.
Browse Seacom flow measurement instruments
Badger Meter and ONICON Flow Meters for Data Centre Cooling
Both Badger Meter and ONICON offer electromagnetic flow meters that can be considered for compatible conductive cooling-water services. The choice should follow the project specification, installation conditions and required outputs.
Badger Meter ModMAG M2000
The Badger Meter M2000 is an electromagnetic flow meter for water and other suitably conductive liquids. It can be considered for permanent monitoring of compatible chilled-water and cooling-water circuits.
Review the liner and electrode materials, meter size, mounting arrangement and communication configuration. BACnet and Modbus options are available, but the exact interface and any required additional hardware should be confirmed before ordering.
View Badger Meter M2000 electromagnetic flow meters
ONICON FT-3000 Series
The ONICON FT-3000 series comprises inline electromagnetic flow meters for electrically conductive liquids in commercial HVAC applications. Typical services include chilled water, condenser water and other compatible water circuits.
The series provides analogue and digital flow-rate outputs, with programmable pulse outputs for totalisation and/or alarms. Meters are individually wet-calibrated and supplied factory-configured. Confirm the selected transmitter, outputs and project requirements when specifying the instrument.
View ONICON FT-3000 electromagnetic flow meters
Which Model Should You Specify?
| Requirement | Badger Meter M2000 | ONICON FT-3000 |
|---|---|---|
| Permanent cooling-water flow measurement | Review for compatible conductive chilled-water and cooling-water circuits. | Review for compatible conductive HVAC water circuits. |
| Connection to monitoring or controls | Confirm the selected analogue, pulse or communication option. | Confirm the selected transmitter and flow-rate, pulse or digital outputs. |
| Fluid compatibility | Check conductivity, additives, liner and electrode materials. | Check conductivity, additives and wetted-material compatibility. |
| Installation | Check pipe conditions and straight-run requirements for the configuration. | Check pipe conditions and installation requirements for the selected model. |
Send us the specification or equipment schedule if a particular model has already been nominated. If you are comparing alternatives, include the required performance and interfaces so we can review the differences that matter to your installation.
Check the Coolant Before Choosing a Magmeter
For either brand, confirm the actual coolant formulation and conductivity. Do not assume suitability for ultrapure water, dielectric coolant or every water/glycol mixture. Fluid compatibility and installation requirements must be checked against the selected model.
Browse electromagnetic flow meters for conductive liquids
Check the Coolant Before Choosing a Magmeter
Ask for the coolant datasheet and conductivity information. Do not assume that demineralised water, ultrapure water, dielectric coolant or every water/glycol mixture meets a magmeter's requirements. The manufacturer must also confirm compatibility with the wetted materials.
Installation Details That Affect the Result
Before ordering, review the proposed measurement point with the pipework drawing:
- Flow range: Include low-load operation as well as the design maximum. Pipe diameter alone is not enough to select the measuring range.
- Nearby equipment: Identify pumps, valves, elbows, reducers and other fittings around the meter.
- Pipe conditions: Check that the location supports the manufacturer's required operating conditions.
- Access: Allow room for installation, wiring, inspection and future maintenance.
- Controls: Specify power supply, output, units, totalisation and alarm requirements.
Where a manufacturer offers reduced or zero straight-pipe installation, confirm the applicable sizes, flow conditions and accuracy. It should not be treated as a blanket rule for every configuration.
Flow Measurement Is Not the Same as Cooling-Energy Measurement
A flow meter measures flow rate and may also totalise volume. Determining cooling power additionally requires the supply-to-return temperature difference and appropriate fluid properties. Cooling energy is calculated by accumulating that power over time.
For water/glycol systems, the calculation must account for the mixture. Temperature-sensor selection, installation and combined measurement uncertainty also matter.
If your specification calls for thermal-energy or BTU metering, request a complete measurement arrangement rather than assuming a standalone flow meter provides the result.
Explore Vaisala TMI110 water-temperature measurement
Example: Reviewing a Cooling-Water Branch
Suppose an operator wants to investigate a cooling branch that appears to perform differently at low load. Start by establishing the expected flow range, actual fluid and available measurement location.
A compatible electromagnetic meter may be considered for permanent monitoring. A suitable clamp-on ultrasonic instrument may be considered when access to the pipe is available but opening the circuit is undesirable. The final choice depends on the installation and the quality of measurement needed.
Review the flow trend alongside supply and return temperatures and the relevant equipment operating data. This provides more context than judging the circuit from a single reading.
Connect Cooling-Water Measurements with Room Monitoring
Water-side readings describe the cooling circuit. Humidity and temperature measurements describe conditions around the IT equipment and air-handling system. Both can contribute to understanding a data centre's cooling operation.
Read our data centre humidity and temperature monitoring guide
Need a Flow Meter for a Data Centre Project?
Send Seacom your equipment schedule, proposed meter location or existing model number. Include the following details where available:
- Fluid name, additives and coolant datasheet
- Minimum, normal and maximum flow
- Pipe size, material and connection standard
- Operating pressure and temperature
- Available straight pipe and nearby fittings
- Required power supply, output or BMS protocol
- Quantity and whether flow-only or thermal-energy measurement is required
We can help review the application and identify suitable measurement options for your installation.
