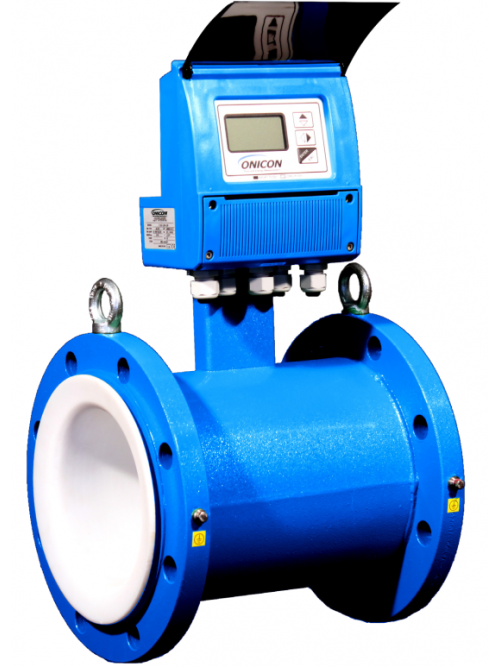

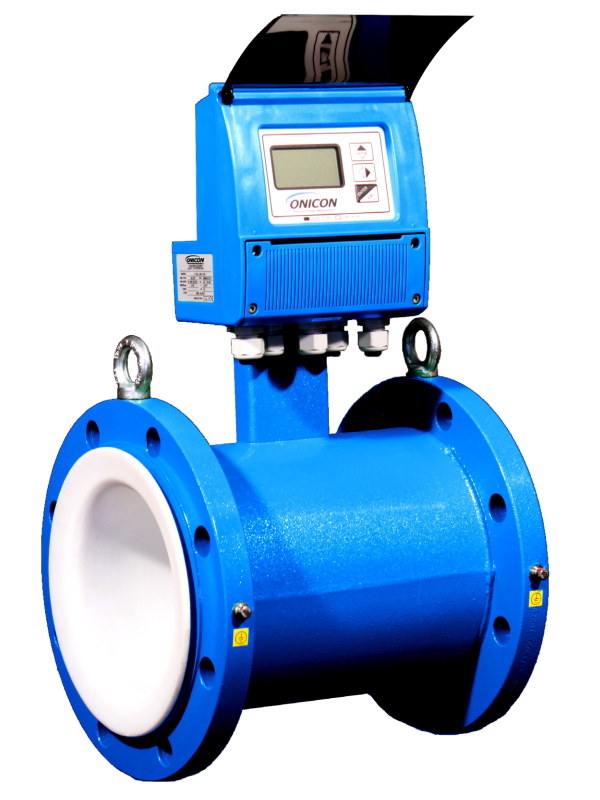

ONICON's FT-3000 Series family of Inline Electromagnetic Flow Meters are suitable for measuring electrically conductive liquids in a wide variety of commercial HVAC applications. The FT-3000 series provides analog and digital outputs for flow rate and programmable pulse outputs for flow totalization and/or alarms.
The ONICON FT-3000 Inline Electromagnetic Flow Meters are available in various sizes and arrive factory-configured for ease of installation and start-up. All FT-3000 series flow meters are wet calibrated in a flow laboratory against standards that are directly traceable to international standards. A certificate of calibration accompanies every meter. Typical applications include monitoring of cooling water, heating water, condenser water and domestic water.
Download |
.
The flow meter for gas mixing uses a KOFLOC multiple flow meter to mix multicomponent fluids. Connection of pipes to respective gas inlets and the mixed gas outlet permit gases to be mixed. This flow meter is ideal for easy gas mixing in laboratories and studies.
Kent Elster Helix Woltmann cold water meter can be installed in horizontal, vertical or inclined pipelines without loss of accuracy. This meter not only conforms to relevant BS, ISO and EEC standards, but offers user benefits which greatly exceed these specifications.
TOKICO FLOWMETER, TOKICO OIL FLOWMETER a high accuracy displacement type flow meter composed of two roots and measures flow directly. Tokico Oil Flowmeter has little deterioration in the instrument accuracy because a couple of roots rotates with non-contact. This flow meter measures with high accuracy and wide flow range
Aichi Tokei Turbine gas meters TBZ and TBX series, developed to measure gas consumption of a small boiler, an individual furnace, or other individual gas equipment, are achieved to have high accuracy consists with the light-weighted compact stylish body.
They can widely correspond to maximum working pressure and maximum measuring flow-rate.
The built-in 2-systems pulse transmitter allows your configuration of a remote reading system or of an advanced energy management system. Also, TBZ series even offers temperature / pressure compensation function that is to display gas consumption converted to its volume at the standard conditions (0,1 atms ), etc.
Ryutai Kogyo Pitot Cell Flowmeter PFT is an economic flowmeter that measures large flow rate of water in large pipe. It is suitable for both hot and cold water, installation is easy and has very little pressure loss. In addition, the reading is displayed in liter / min
TOKICO FLOWMETER, TOKICO OIL FLOWMETER is a high accuracy displacement type flow meter composed of two roots and measures flow directly. Tokico Oil Flowmeter has little deterioration in the instrument accuracy because a couple of roots rotates with non-contact. This flow meter measures with high accuracy and wide flow range.
Ryutai Kogyo Model ADF is in-line type, installed directly in your pipe line, and measure instantaneous flow rate of water with high accuracy. Simple design and rigid construction enable you to check or disassemble the unit without any special knowledge. Besides above feature, you can select the material from our wide variety of materials to meet your specific application.
The RCM Flo-Gage is a direct reading flow meter with a large, easy to read dial calibrated in engineering units (GPM, SCFM, l/m, etc.) The Flo-Gage measures flow based on a pressure diffential created across a built-in calibrated nozzle. The meter is self-contained and complete, seperate orifices, or blocking, purging or equalizing valves
The Flo-Gage is suitable for measuring water, oil and most other low viscocity liquids which do not deposit out and which are compatible with the materials of construction. The Flo-Gage is also suitable for measuring compressed air, oxygen, carbon dioxide and many other non-toxic compressed gases. (Specify Option I). Saturated steam can also be measured up to 120 psig. (Option K).
RCM general purpose Flo-Guard II flow switches (liquid) reed switches make or break contacts by detecting the position of a magnet permanently attached to the bellow. Our reed switches can also be ordered for use in hazardous location (Option IS), when fitted with LED's (Option LED) it provides viewing at a glance when flow rate goes below or above the set point and makes field calibration easy
The Kofloc mass flow controllers and meters, which measure the mass flow rate, are less influenced by the temperature and pressure as compared with mechanical flow meters and valves, and can electrically exchange information about the flow rate. They are used in a wide range of processes and equipment in the fields where high levels of accuracy, repeatability, responsiveness and cost effectiveness are required, such as semiconductors, optic fibers, various analyses, fuel cells, liquid crystal, organic electroluminescence, biotechnology, foods, environmental measurement, combustion gas control, plant facilities and examination equipment.
Models:
EXE-Flow Model EX-700R Series
EX-250S Series
EX-550 series
8700 series
3660 series
3760 series
3200 series
3100 series
5100 series
5410 series
Ryutai Kogyo MCF can be linked with a remote indicator, integrator and recorder A reliable electronic transmitter housed in the aluminum indicator case provides current signals (DC, analog) proportional to measured flow rates for remote instruments.
MCF series are now used in the computer-controlled flow system. Output signals are analog DC current of high linearity and agree with any inputs of remote instruments. Well suited design on applications The body that measures fluid flow has been designed with consideration having been given to many factors such as flow direction, flow rate, pressure, temperature, presence or absence of slurries and accessories required.
The Precisely manufactured transmitter which is enclosed in the indicator case provides reliable output signals.
Tokico PFA resin series flowmeter has no moving parts, and the parts in contact with liquid are composed by PFA resin, and excellent in corrosion resistant and clean vortex flowmeter
The parts that come into contact with the liquid are made of PFA resin with excellent corrosion resistance, so there are no seals or pockets apart from the parts where pipes are connected. This makes the series suitable for measuring fluids like liquid chemicals, corrosive fluids and ultrapure water.

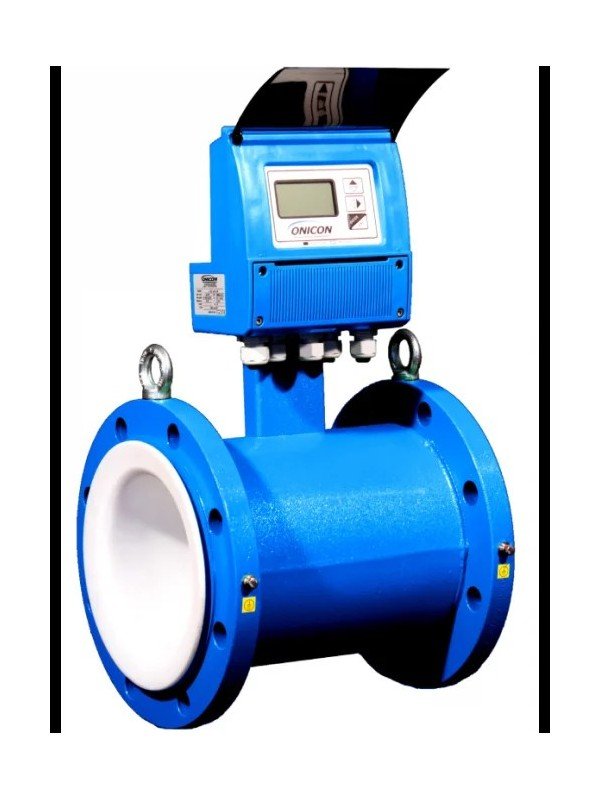

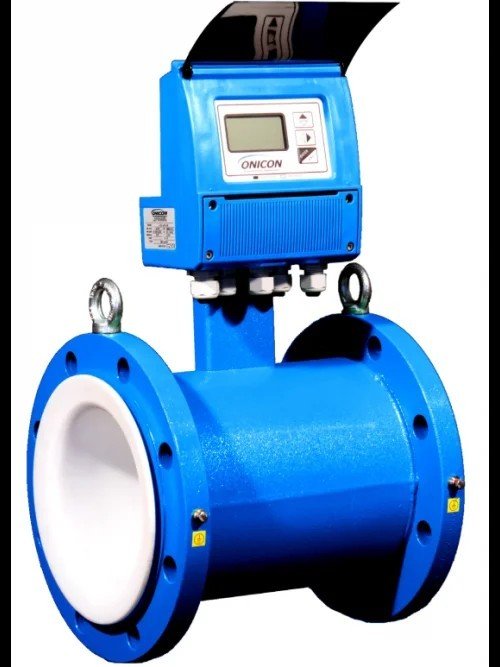

ONICON's FT-3000 Series family of Inline Electromagnetic Flow Meters are suitable for measuring electrically conductive liquids in a wide variety of commercial HVAC applications. The FT-3000 series provides analog and digital outputs for flow rate and programmable pulse outputs for flow totalization and/or alarms.
The ONICON FT-3000 Inline Electromagnetic Flow Meters are available in various sizes and arrive factory-configured for ease of installation and start-up. All FT-3000 series flow meters are wet calibrated in a flow laboratory against standards that are directly traceable to international standards. A certificate of calibration accompanies every meter. Typical applications include monitoring of cooling water, heating water, condenser water and domestic water.
.png)

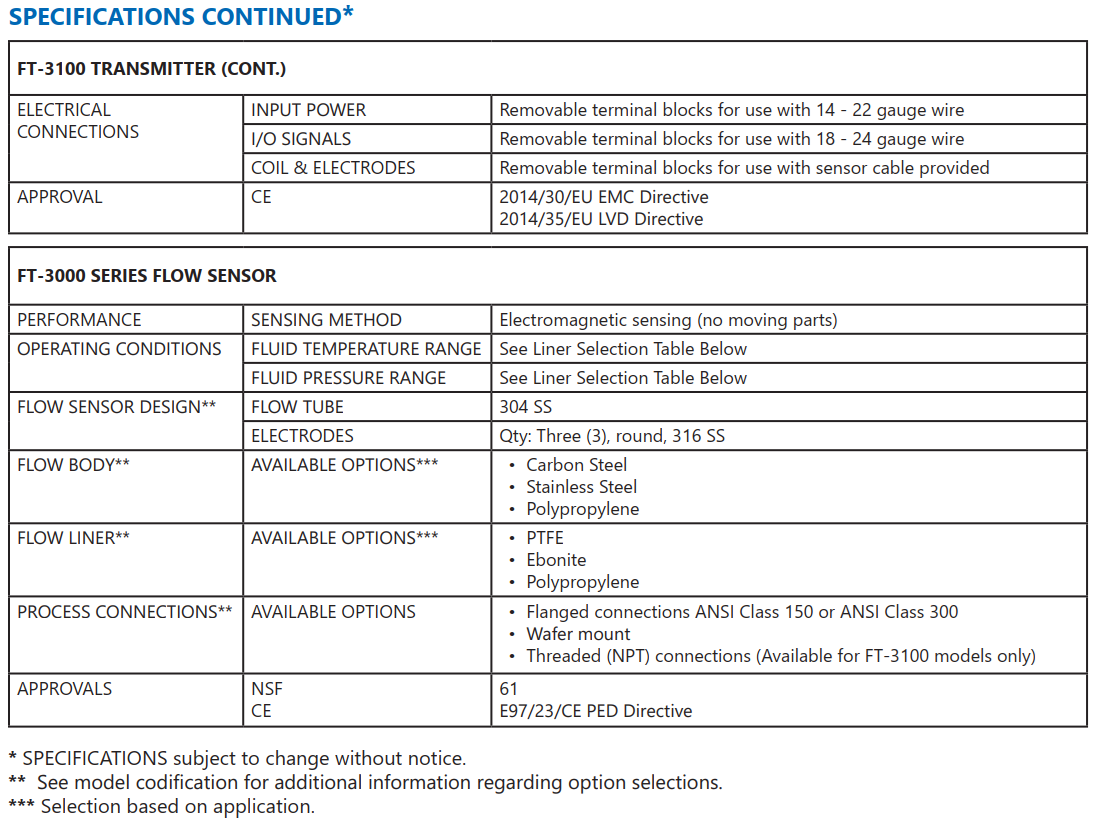

Onicon FT3000 Catalogue
-
(5.2M)
