Anritsu ACSII Series Surface and Internal Temperature Calibrators
The Anritsu ACSII Series provides controlled temperature sources for checking and calibrating contact temperature probes. Choose a surface model for contact-head probes, an internal model for insertion probes, or a combined system for both tasks.
A suitable calibration setup helps you compare measurements at repeatable temperature points. Select the system according to your probe geometry, required range and calibration procedure.
Key Features
- Four models covering surface, internal or combined calibration.
- 30 to 300°C range for ACSII-1000; 30 to 500°C for the other models.
- PID control with automatic tuning.
- Separate control and calibration units.
- Internal calibration models with eight holes made to specified dimensions.
Compare ACSII Models
| Model | Calibration task | Temperature range | Calibration area |
|---|
| ACSII-1000 |
Surface |
30 to 300°C |
78 mm diameter surface |
| ACSII-2000 |
Surface |
30 to 500°C |
100 mm diameter surface |
| ACSII-3000 |
Internal / insertion probes |
30 to 500°C |
Eight specified holes |
| ACSII-4000 |
Surface and internal |
30 to 500°C |
150 mm square surface and eight specified holes |

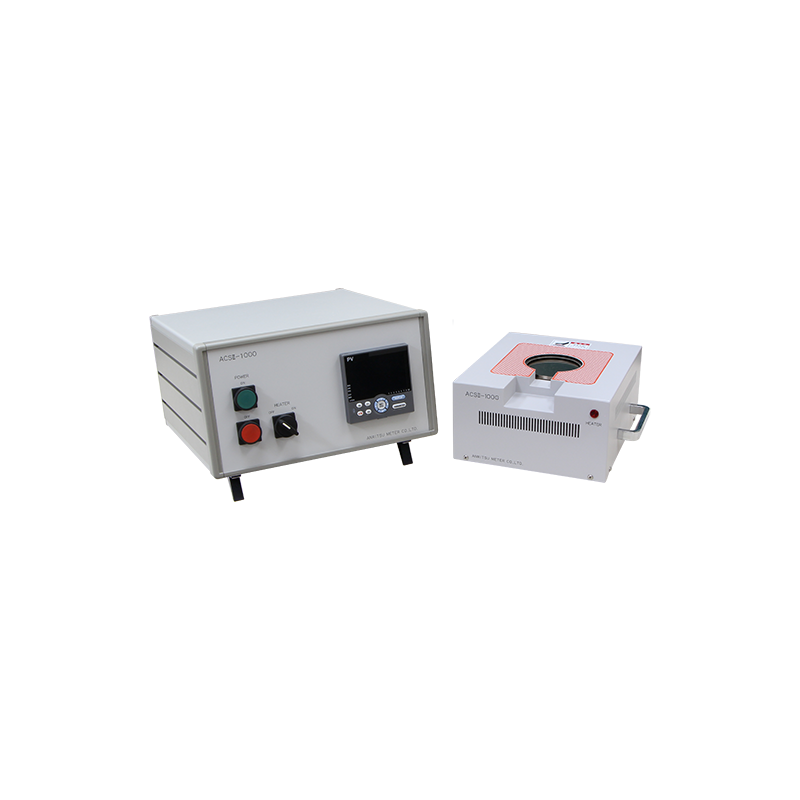

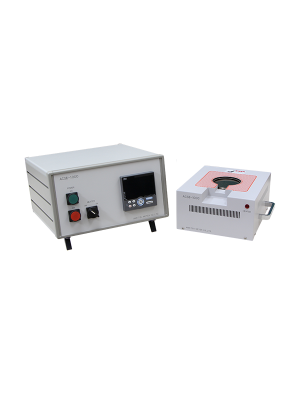

ACSII-1000 — Surface Calibration to 300°C
| Specification | ACSII-1000 |
|---|
|
|
| Calibration task |
Surface |
| Temperature range |
30 to 300°C |
| Control unit: W × H × D; weight |
320 × 177 × 350 mm; 4.5 kg |
| Calibration unit: W × H × D; weight |
260 × 130 × 260 mm; 7 kg |
| Approximate power consumption |
250 W |

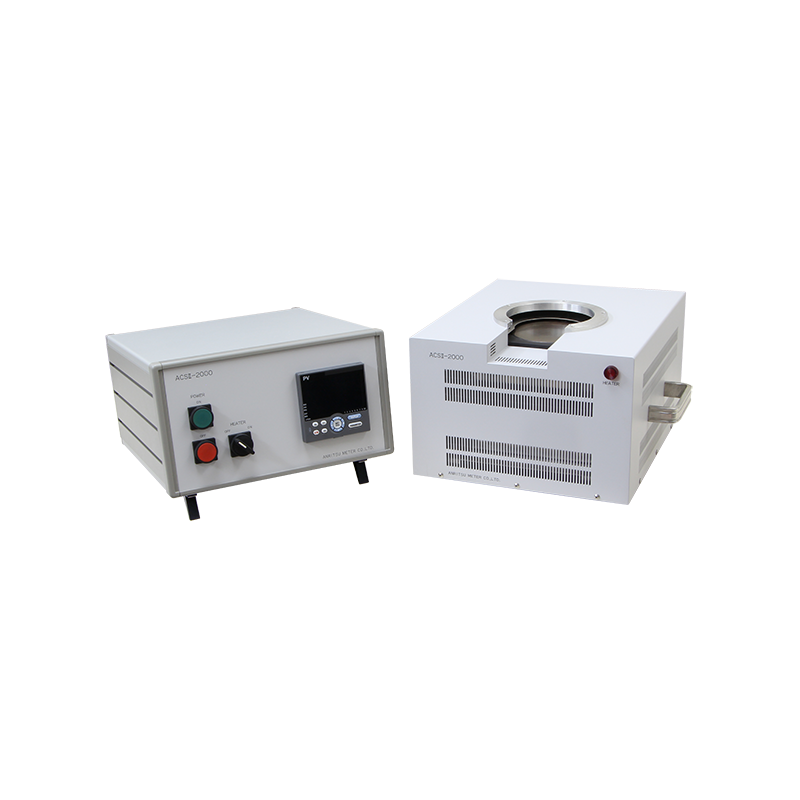

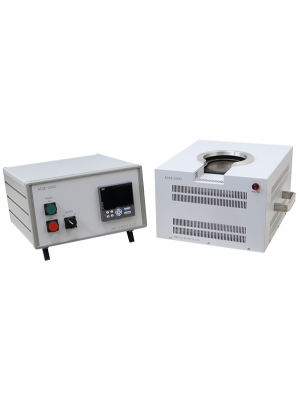

ACSII-2000 — Surface Calibration to 500°C
| Specification | ACSII-2000 |
|---|
|
|
| Calibration task |
Surface |
| Temperature range |
30 to 500°C |
| Control unit: W × H × D; weight |
320 × 177 × 350 mm; 4.5 kg |
| Calibration unit: W × H × D; weight |
390 × 221 × 360 mm; 20 kg |
| Approximate power consumption |
1,100 W |

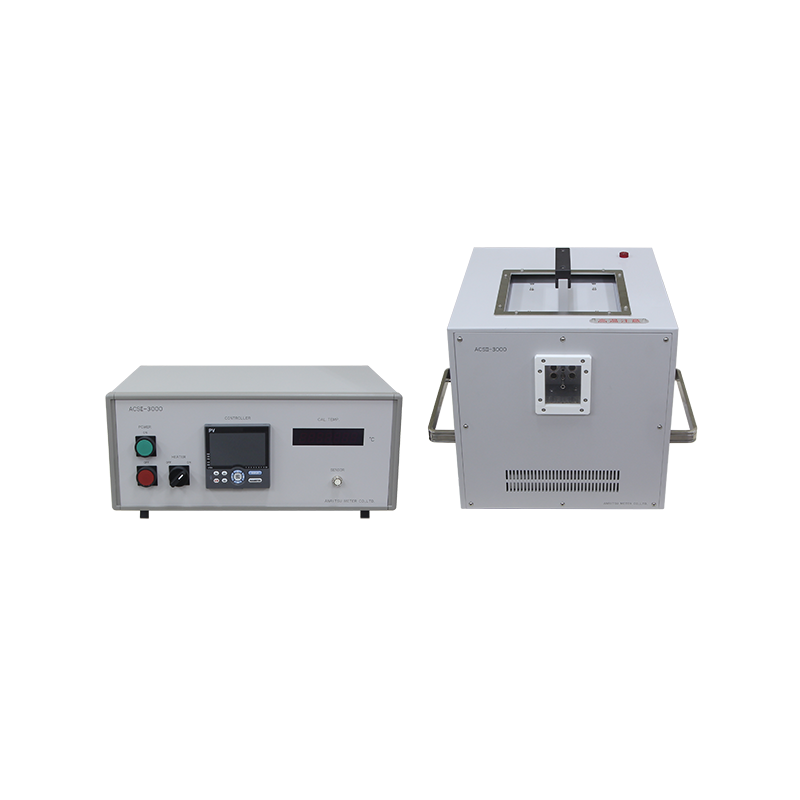

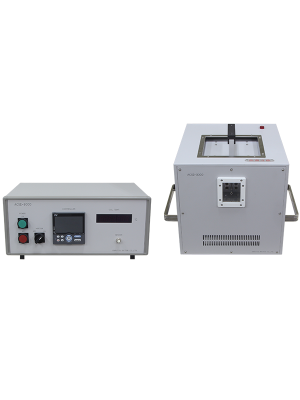

ACSII-3000 — Internal Calibration to 500°C
| Specification | ACSII-3000 |
|---|
|
|
| Calibration task |
Internal / insertion probes |
| Temperature range |
30 to 500°C |
| Control unit: W × H × D; weight |
420 × 177 × 350 mm; 5 kg |
| Calibration unit: W × H × D; weight |
450 × 405 × 400 mm; 70 kg |
| Approximate power consumption |
1,600 W |

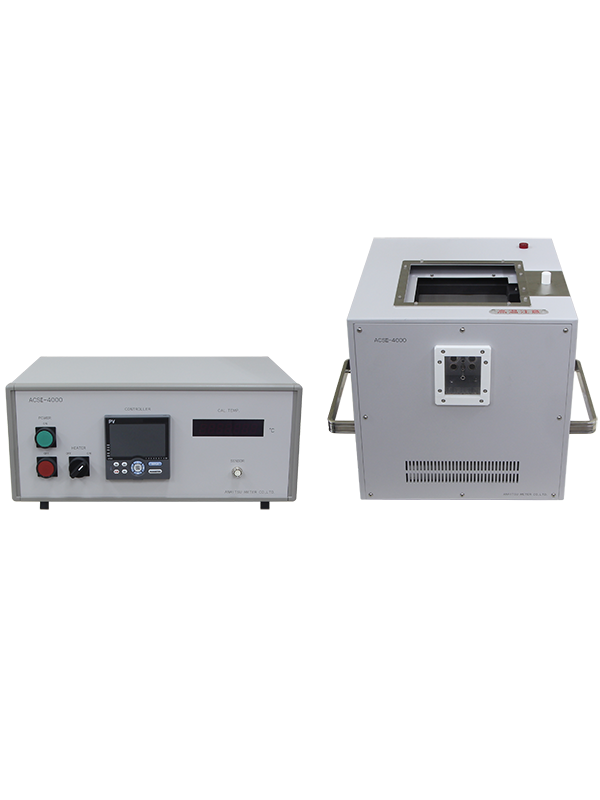

ACSII-4000 — Surface and Internal Calibration
| Specification | ACSII-4000 |
|---|
|
|
| Calibration task |
Surface and internal |
| Temperature range |
30 to 500°C |
| Control unit: W × H × D; weight |
420 × 177 × 350 mm; 5 kg |
| Calibration unit: W × H × D; weight |
450 × 405 × 400 mm; 70 kg |
| Approximate power consumption |
1,600 W |
Overall Accuracy: Surface Calibration
The limits below are signed upper and lower deviations. Where both values are negative, the published interval lies below zero; it should not be rewritten as a symmetrical ± value.
| Temperature band | ACSII-1000 | ACSII-2000 | ACSII-4000 |
|---|
| 30.0 to 100.0°C |
+0.5 / −0.7°C |
+0.5 / −0.7°C |
+0.4 / −0.6°C |
| 100.1 to 200.0°C |
+0.5 / −1.1°C |
+0.5 / −1.1°C |
+0.3 / −0.9°C |
| 200.1 to 300.0°C |
+0.5 / −1.5°C |
+0.5 / −1.5°C |
+0.1 / −1.1°C |
| 300.1 to 400.0°C |
Outside range |
+0.4 / −2.0°C |
−0.2 / −1.5°C |
| 400.1 to 500.0°C |
Outside range |
−0.1 / −2.9°C |
−0.9 / −2.2°C |
Overall Accuracy: Internal Calibration
| Temperature band | ACSII-3000 and ACSII-4000 |
|---|
| 30.0 to 100.0°C |
±0.26°C |
| 100.1 to 200.0°C |
±0.32°C |
| 200.1 to 300.0°C |
±0.37°C |
| 300.1 to 400.0°C |
±0.43°C |
| 400.1 to 500.0°C |
±0.48°C |
Overall system accuracy, controller accuracy and temperature distribution describe different properties. They should not be treated as interchangeable figures or as the uncertainty of every calibration performed with the system.
Control and Reference Measurement
| Parameter | Specification |
|---|
| Control method |
PID automatic tuning |
| Control input |
Pt100 resistance sensor |
| Controller accuracy |
±(0.2% of reading + 0.3°C) |
| Controller display |
8 mm-high LED characters |
| Reference sensor on ACSII-3000 / ACSII-4000 |
Pt100, 4.8 mm diameter; JIS C 1604 |
| Reference measurement accuracy |
±(0.05% of reading + 0.05°C) |
| Reference display |
12.5 mm-high LED characters |
| AC supply |
Select the required supply at purchase within the listed 100–240 VAC options |
| Overtemperature protection |
Bimetal breaker |
Specify the mains supply when requesting a quotation. Do not assume every supplied unit automatically accepts all voltages.
Heating and Cooling Times
Allow time for both the temperature change and the stabilisation required by your procedure. The published times below are planning references, not a guarantee of readiness for a particular calibration.
| Model | Heating examples | Cooling examples |
|---|
| ACSII-1000 |
30 → 150°C: 25 min
30 → 300°C: 50 min |
300 → 150°C: 80 min
150 → 50°C: 120 min |
| ACSII-2000 |
30 → 250°C: 30 min
30 → 500°C: 60 min |
500 → 250°C: 40 min
250 → 50°C: 90 min |
| ACSII-3000 / ACSII-4000 |
30 → 250°C: 60 min
30 → 500°C: 150 min |
500 → 250°C: 220 min
250 → 100°C: 450 min |
Supplied Accessories
- Power, heater and sensor cables.
- Instruction manual and test report.
- ACSII-1000 / ACSII-2000: protective calibration-block cover.
- ACSII-3000 / ACSII-4000: Pt100 standard calibration sensor.
Selecting the Right Calibration Setup
- Surface probes: check head size, shape and the contact method on the calibration surface.
- Insertion probes: provide shaft diameters and usable insertion lengths so the hole arrangement can be specified.
- Temperature points: choose points relevant to your normal measurements and acceptance limits.
- Workspace: allow adequate bench capacity and room for the separate controller and calibration unit.
- Documentation: specify the reference calibration, traceability and reporting required by your quality procedure.
A supplied test report does not by itself establish an accredited calibration service. Agree the required documentation and measurement uncertainty before ordering.
