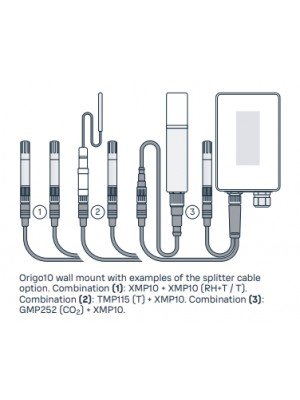

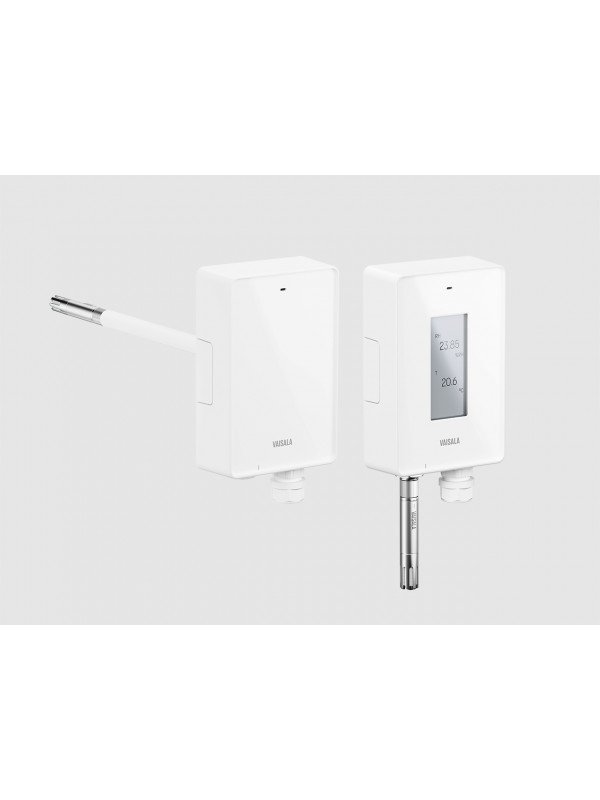

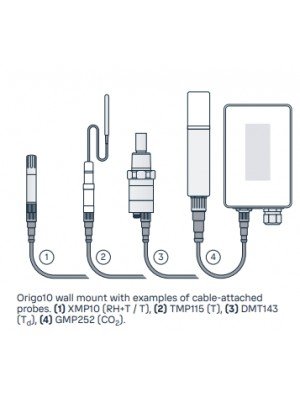

The Vaisala Origo10 Series comprises modular HVAC transmitters with interchangeable probes for humidity, temperature, CO2 and dew-point measurement.
Available with analog, Modbus RTU and BACnet MS/TP outputs, wall or duct mounting, an optional display and an IP65-rated enclosure.
The Vaisala Origo10 Series provides modular measurement solutions for HVAC and building-automation applications. Interchangeable measurement probes allow the transmitter to measure humidity, temperature, carbon dioxide and dew point according to the selected configuration.
Origo10 transmitters combine reliable long-term measurement stability with flexible analog and digital outputs. Wall-mounted and duct-mounted versions are available for commercial buildings, data centres, hospitals, cleanrooms and demanding industrial facilities.
The modular platform enables users to select the appropriate probe, measurement accuracy, output signal and installation arrangement for each application.
Seacom Process Instruments supplies the Vaisala Origo10 Series in Malaysia. Our team can assist with selecting the Origo10A or Origo10L transmitter, compatible measurement probes, output signals and mounting accessories.
Contact Seacom for an Origo10 configuration suitable for HVAC systems, data centres, hospitals, cleanrooms, commercial buildings and industrial facilities.
Download |
.
Vaisala Miniature size dew point transmitters DMT143 and DMT143L are ideal choices when you want to measure dew point accurately in small compressed air dryers, plastic dryers, additive manufacturing and other OEM applications. They are easy to integrate and can be used in Vaisala DM70 hand-held. The long version has replaced the DMT242.
for ppm-level measurements in agriculture, refrigeration, demanding HVAC, and for plant growth manufacturers
The Vaisala CARBOCAP® Carbon Dioxide Probe GMP252 is an intelligent, stand-alone, ppm-level probe. It's intended for measuring CO2 in agriculture, refrigeration, greenhouses, demanding HVAC applications, and for plant growth chamber manufacturers. It is suitable for harsh and humid CO2 measurement environments where stable and accurate ppm-level CO2 measurements are needed. The operating temperature range is -40 … +60 °C and the measurement range is 0 … 10 000 ppm CO2, and even up to 30 000 ppm CO2 with a slightly reduced accuracy.
The GMP252 can also be placed inside the Vaisala Radiation Shield DTR250 for measuring dynamically outdoor CO2 levels.
The GMP252 probe is part of the Indigo product family and can also be connected to the Indigo500 and Indigo200 series transmitters to extend its features, for example, for a display or relays.
The GMP252 can also be used with with the free Insight PC Software.
For spot-checking, the ideal choice is the Handheld CO2 Meter GM70.|
The GMP252 replaces the following discontinued products: GMM222 and GMT222
The Vaisala XMP10 Series comprises compact humidity and temperature probes offering accuracy levels up to ±1% RH and ±0.1 °C for demanding HVAC, data-centre and critical-environment applications.
The probes feature analog or Modbus RTU outputs, a standard M8 connector, an IP65-rated body and compatibility with Vaisala Origo10 modular HVAC transmitters.
.
The Vaisala HUMICAP® Humidity and Temperature Probe HMP9 is designed for easy installation in rapidly changing environments where a fast response time, measurement performance, and chemical tolerance are essential. The compact size enables installation even in tight spaces, with the probe head only 5 mm (0.2 in) in diameter.
The HMP9 complements the Indigo product family and is ideal for applications such as inlet monitoring in dryers, air handling units, data centers, test chambers, and other humidity measurement applications with temperatures under 120 °C (248 °F) that don’t involve high pressure. The HMP9 is compatible with Indigo500 and Indigo200 series transmitters and Insight PC Software.
Humidity and Temperature Probe HMP155
Superior Accuracy for Harshest Environments
Vaisala Humidity and Temperature Probe HMP155 provides reliable humidity and temperature measurement. It is designed especially for demanding outdoor applications.
Vaisala Humidity and Temperature Module HMM170 is a robust open frame transmitter for integration into environmental chambers that need accurate and reliable measurement even in demanding conditions including vacuum or high pressure.
The module is built to last for years and it is easy to integrate into the chamber and the circuit board. Both digital and three configurable analog output channels are available, ensuring compatibility for most chamber types. In addition to relative humidity and temperature, dew point and other calculated parameters are available.
The HMM170 provides a digital RS-485/Modbus RTU output and three freely configurable analog output channels. The module provides relative humidity, temperature, dew point, and other calculated parameters.
Vaisala HMT330 series are easy-to-use transmitters for demanding industrial and air conditioning applications. The transmitters measure relative humidity and temperature and from these calculate dew point and wet bulb temperature, mixing ratio and absolute humidity.
They can be configured to the customer's requirements on the production line, but configuration and parameters can also be set by the user. The series has both analogue and serial outputs as well as several options: different cable lengths, power supply modules and serial interface modules as well as a local display.
Vaisala HMT360 humidity and temperature transmitter is designed for use in potentially explosive atmospheres. The electronics are designed so that the transmitter is intrinsically safe. The whole transmitter can be installed directly into an explosive area, even into areas classified as having a constant risk of explosion (Zone 0). HMT360 fulfils all requirements of current standards. The microprocessor-based HMT360 is easy to install, maintain and calibrate due to its modular structure. The interchangeable probes are easy to remove and enable on-site calibration. They make the HMT360 series versatile and ensure its suitability for almost any application
Also suitable for measuring water activity of Jet Fuel
Vaisala HUMICAP® Humidity and Temperature Transmitter Series HMD110, HMW110, HMS110 series measure relative humidity and temperature in multiple HVAC applications.
The series includes transmitters for duct mounting HMD110, IP65-classified wall transmitters, and outdoor transmitters with integrated radiation shieldsHMS110.
Vaisala HMD110, HMW110, HMS110 series transmitters are equipped with trusted HUMICAP® 180R sensors. They are individually adjusted and delivered with a calibration certificate. The factory calibration is traceable to NIST.
Transmitters can be field-calibrated using either an HM70 Hand-Held Humidity and Temperature Meter, or a PC connection.
for Vaisala's Smart Humidity, Temperature, Dew Point, Moisture in Oil, CO2 and H2O2 Probes
Vaisala Indigo200 Series host devices are part of Vaisala Indigo product family and intended for Vaisala's intelligent, stand-alone humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8), temperature probe (TMP1), CO2 probes (GMP251 and GMP252), moisture in oil probe MMP8, as well as our vaporized hydrogen peroxide probe series HPP270: including HPP271 to measure hydrogen peroxide vapor (ppm), or the HPP272 to measure hydrogen peroxide vapor (ppm), temperature, and humidity (relative humidity and relative saturation). The HPP272 probe includes other calculated parameters such as dew point and vapor pressure measurements..
Looking for a transmitter with a metal enclosure? See Indigo500 series with dual-probe support and many more additional features.
Typical applications for the Indigo200 include industrial and compressed air drying, life science incubators, hatchers and setters, greenhouses, cold storage & refrigeration, food transportation, CO2 safety, hydraulic and lubrication oil monitoring, demanding HVAC such as animal shelters, swimming pools, parking garages, and facilities using vaporized hydrogen peroxide decontamination.
Vaisala Indigo 200 allows for easy evaluation and visualization of data, also wirelessly. The installation is uncomplicated, which saves time. Watch video on how to install Indigo201 and configure analog outputs. Also the probe types are interchangeable reducing downtime. The enclosure with an IP65 classification is safe for harsh environments and resistant to dust and most chemicals. The smooth surface of the enclosure makes cleaning easy.
The Vaisala XMP10 Series comprises compact humidity and temperature probes offering accuracy levels up to ±1% RH and ±0.1 °C for demanding HVAC, data-centre and critical-environment applications.
The probes feature analog or Modbus RTU outputs, a standard M8 connector, an IP65-rated body and compatibility with Vaisala Origo10 modular HVAC transmitters.
The wall-mounted Vaisala GMW90 Series CARBOCAP® Carbon Dioxide, Temperature and Humidity Transmitters are especially suited for green building projects and demand controlled ventilation. The devices measure carbon dioxide and temperature and have an option for an additional humidity measurement.
The instruments come with a calibration certificate that meets traceability and compliance requirements. Traceability is easily maintained with field-exchangeable intelligent measurement modules. The transmitter can be blended into the interior design of the space where it is installed using the optional decorative cover.
The Vaisala Indigo, Indigo 510, Indigo 520 transmitter has 4 analog channels that can be configured to mA or voltage type and 2 configurable relays. The Vaisala Indigo510 has 2 analog channels. Any of the output parameters from the connected probes can be assigned to control the analog channels and relays. Digital output protocol is Modbus TCP/IP over Ethernet. Besides Modbus TCP/IP, the transmitter's Ethernet connection provides a web interface and cyber-security that meets the modern standards
The touchscreen display provides local data visualization and easy access to probe configuration. The transmitter also extends the options for connectivity, supply voltage and wiring, compared to using just a smart probe. It also provides mechanical support when wall-mount probe installation is preferred. Rugged IP66- and NEMA4-rated metal enclosure ensures reliable performance even in the harshest conditions.
The Indigo-compatible smart probes include humidity probes (HMP1, HMP3, HMP4, HMP5, HMP7, HMP8 and HMP9), dew point probes (DMP5, DMP6, DMP7 and DMP8), carbon dioxide probes (GMP251 and GMP252), moisture in oil probe (MMP8), temperature probe (TMP1), and vaporized hydrogen peroxide probes (HPP270). The Indigo520 is also compatible with MHT410 Moisture, Hydrogen and Temperature Transmitter for power transformer online monitoring
The Indigo520 dual-probe support allows simultaneous measurements with two Vaisala Indigo-compatible probes for humidity, temperature, dew point temperature, carbon dioxide, vaporized hydrogen peroxide, and moisture in oil measurements. If you need just one probe, the Indigo510 is an ideal choice.
The Vaisala HMD60 Series duct-mounted humidity and temperature transmitters provide accurate and stable measurement for demanding HVAC applications.
Available models include the HMD62, TMD62 and HMD65, with 4–20 mA, 0–10 V, Modbus RTU and BACnet MS/TP output options.
The Vaisala HMP110 is a high-accuracy humidity and temperature probe designed for demanding equipment integration, environmental chambers, data loggers, incubators and controlled-environment applications.
It provides ±1.5% RH accuracy, a 0–100% RH range, −40 °C to +80 °C temperature measurement, a chemically resistant HUMICAP 180R sensor and analog or Modbus RTU output options.
The Vaisala Origo10 Series comprises modular HVAC transmitters with interchangeable probes for humidity, temperature, CO2 and dew-point measurement.
Available with analog, Modbus RTU and BACnet MS/TP outputs, wall or duct mounting, an optional display and an IP65-rated enclosure.
.png)
GMP252 Catalogue
- CO₂ Probe GMP252
(172.51k)
