Vaisala XMP10 Series Humidity and Temperature Probes

Vaisala XMP10 Series Humidity and Temperature Probes

The Vaisala XMP10 Series comprises miniature probe-style humidity and temperature transmitters designed to provide excellent measurement performance in a compact format.

XMP10 probes can operate as standalone measurement devices or serve as interchangeable sensing elements for compatible transmitters and data loggers. Multiple sensor, accuracy, output and probe-body options allow the series to support both general HVAC applications and demanding critical environments.

Selected configurations provide humidity accuracy up to ±1% RH and temperature accuracy up to ±0.1 °C. Every instrument is individually adjusted and supplied with a traceable ISO 9001 calibration certificate.

Why Choose the Vaisala XMP10 Series?

• High Measurement Accuracy Selected XMP10 models provide humidity accuracy up to ±1% RH and temperature accuracy up to ±0.1 °C.
• Multiple Accuracy Levels Choose the measurement performance required for general HVAC or critical environmental-control applications.
• Compact Probe Design The miniature format simplifies integration into transmitters, data loggers and third-party equipment.
• Analog and Digital Outputs Available with configurable voltage outputs or RS-485 Modbus RTU communication.
• Origo10 Compatibility Compatible with Vaisala Origo10 modular HVAC transmitters for wall, duct and remote-probe installations.
• Traceable Calibration Individually adjusted and delivered with a traceable ISO 9001 calibration certificate.
• Rugged Construction IP65-rated probe body with metal and plastic housing options.
• Field Configuration Supports calibration and adjustment using Vaisala Insight PC software and compatible handheld instruments.

XMP10 Probe Models

• Vaisala XMP10A Humidity and temperature probe with ±1.0% RH accuracy and Vaisala HUMICAP 180R sensor.
• Vaisala XMP10R Humidity and temperature probe with ±1.5% RH accuracy and Vaisala HUMICAP 180R sensor.
• Vaisala XMP10B Humidity and temperature probe with ±2.0% RH accuracy and Vaisala HUMICAP 180R sensor.
• Vaisala XMP10I Cost-effective humidity and temperature probe with ±3.0% RH accuracy and Vaisala INTERCAP sensor.
• Vaisala XMP10C Humidity and temperature probe with ±1.5% RH accuracy and a catalytically protected HUMICAP 180V sensor.
• Vaisala XMP10T Temperature-only probe using a high-accuracy Pt1000 RTD sensor.

Humidity Measurement Performance

• Measurement Range 0–100% RH.
• Best Available Accuracy Up to ±1.0% RH depending on the selected XMP10 model.
• Factory Calibration Uncertainty ±1.1% RH from 0–90% RH and ±1.8% RH from 90–100% RH.
• Long-Term Stability Less than 0.5% RH per year under optimal operating conditions.
• Humidity Response Time Approximately 12 seconds for T63 response.
• HUMICAP 180R Sensor Provides high accuracy, stability and environmental resistance.
• HUMICAP 180V Sensor Catalytically protected sensor option for environments involving vaporized hydrogen peroxide.
• INTERCAP Sensor Cost-effective sensor option for general environmental and HVAC applications.

Temperature Measurement Performance

• Temperature Measurement High-accuracy temperature measurement using a Pt1000 sensor element.
• Best Available Temperature Accuracy Up to ±0.1 °C depending on the selected probe and operating conditions.
• Metal Probe Operating Range −40 °C to +80 °C with HUMICAP 180R or HUMICAP 180V sensor.
• Plastic Probe Operating Range −40 °C to +60 °C with HUMICAP 180R or HUMICAP 180V sensor.
• INTERCAP Probe Operating Range −40 °C to +60 °C.
• Temperature-Only Model The XMP10T provides temperature measurement using a Pt1000 RTD sensor.

Calculated Humidity Parameters

• Dew Point and Frost Point Calculated dew-point or frost-point temperature output.
• Wet-Bulb Temperature Calculated wet-bulb temperature for HVAC and environmental applications.
• Absolute Humidity Calculated water-vapour concentration output.
• Mixing Ratio Calculated ratio of water vapour to dry air.
• Enthalpy Calculated enthalpy output for air-conditioning and energy-management applications.
• Configurable Parameters Available output parameters depend on the selected analog or digital configuration.

Outputs and Communication

• Two Analog Channels Configurable voltage-output ranges include 0–1 VDC, 0–2.5 VDC, 0–5 VDC and 1–5 VDC.
• Optional 4–20 mA Output Available through a separate single-channel loop-power converter.
• RS-485 Communication Two-wire half-duplex digital interface for compatible monitoring and control systems.
• Modbus RTU Digital-output models support Modbus RTU communication.
• Standard M8 Connector Enables convenient connection to transmitters, cables and service accessories.
• Origo10 Integration XMP10 probes can operate as interchangeable sensing elements for Vaisala Origo10 transmitters.

Electrical Specifications

• Typical Power Consumption Approximately 3.5 mW at a 15 V operating supply.
• Maximum Peak Consumption Approximately 20 mW at a 28 V operating supply.
• Supply for 1 V or 2.5 V Output 5–28 VDC.
• Supply for 5 V Output 8–28 VDC.
• Supply with Loop-Power Converter 8–28 VDC.
• Supply with Digital Output 5–28 VDC.
• Analog Start-Up Time Approximately two seconds at most valid operating voltages.
• Digital Start-Up Time Approximately two seconds.

Operating and Environmental Specifications

• Operating Humidity 0–100% RH under non-condensing conditions.
• Protection Rating IP65 protection against dust and water jets.
• Metal Probe Temperature Range Up to −40 °C to +80 °C depending on the installed sensor.
• Plastic Probe Temperature Range Up to −40 °C to +60 °C depending on the installed sensor.
• Storage Temperature −40 °C to +60 °C.
• Storage Humidity 0–100% RH under non-condensing conditions.

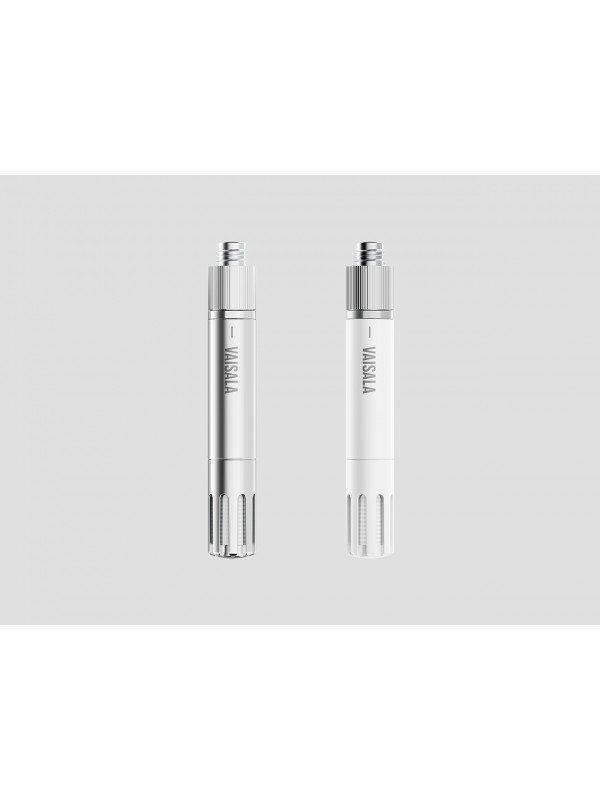

• Probe Body Options Metal and plastic versions are available according to the required application.
• Calibration Certificate Supplied with an individually traceable ISO 9001 calibration certificate.

Calibration and Maintenance

• Vaisala Insight Software Supports probe configuration, diagnostics, calibration and measurement adjustment.
• Multi-Point Humidity Adjustment Relative humidity can be adjusted at one to five measurement points using Vaisala Insight.
• Temperature Adjustment Temperature measurement can be adjusted using one-point or two-point calibration.
• Field Calibration The probe can be checked and adjusted on-site using appropriate humidity and temperature references.
• USB Service Connection An optional M8-to-USB service cable provides connection to Vaisala Insight PC software.
• Interchangeable Origo10 Probe A factory-calibrated XMP10 can replace an existing probe in a compatible Origo10 installation.

Typical Applications

• Data Centres Precise humidity and temperature measurement for server rooms, cooling systems and critical spaces.
• Commercial Buildings Reliable environmental measurement for HVAC and building-management systems.
• Hospitals and Healthcare Facilities Environmental control for spaces where indoor conditions and health security are important.
• Cleanrooms High-accuracy measurement for controlled manufacturing, laboratory and life-science environments.
• Semiconductor Facilities Stable humidity and temperature measurement for sensitive production processes.
• Airports and Transportation Facilities Dependable measurement for large ventilation and building-automation systems.
• Data Loggers Compact sensing element for fixed and portable environmental data-acquisition systems.
• Equipment Integration Integration into environmental chambers, controllers and equipment manufactured by third parties.

Data Centre Probe Networks with Indigo520 Supervisor

Compatible digital XMP10 configurations can be connected to the Vaisala Indigo520 Supervisor for managing multiple humidity and temperature measurement points. The Supervisor supports up to 100 compatible probes across two daisy chains, with local touchscreen access and Modbus TCP communication to the BMS.

For rack and aisle installations, select the XMP10 model according to the required measurement accuracy and operating conditions. Confirm the digital output configuration, cable arrangement and power requirements before ordering.

Vaisala XMP10 Supplier in Malaysia

Seacom Process Instruments supplies the Vaisala XMP10 Series humidity and temperature probes in Malaysia. Our team can assist with selecting the required accuracy level, humidity sensor, probe-body material, output signal and Origo10 transmitter configuration.

Contact Seacom for XMP10 product selection, pricing and availability for HVAC systems, data centres, hospitals, cleanrooms, commercial buildings and industrial facilities.
