Vaisala Origo10 Modular HVAC Transmitter

The Vaisala Origo10 Series provides modular measurement solutions for HVAC and building-automation applications. Interchangeable measurement probes allow the transmitter to measure humidity, temperature, carbon dioxide and dew point according to the selected configuration.

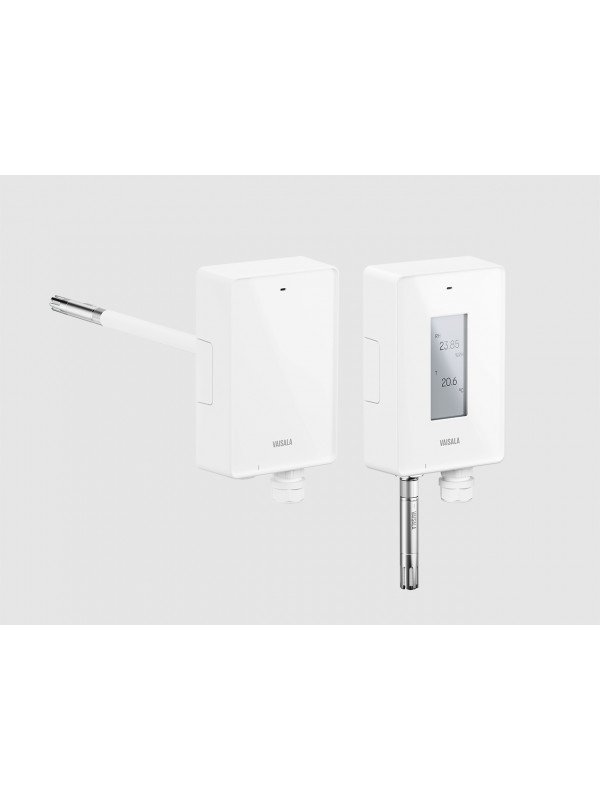

Origo10 transmitters combine reliable long-term measurement stability with flexible analog and digital outputs. Wall-mounted and duct-mounted versions are available for commercial buildings, data centres, hospitals, cleanrooms and demanding industrial facilities.

The modular platform enables users to select the appropriate probe, measurement accuracy, output signal and installation arrangement for each application.

Why Choose the Vaisala Origo10 Series?

• Modular Measurement Platform Select interchangeable probes for humidity, temperature, CO2 and dew-point measurement.

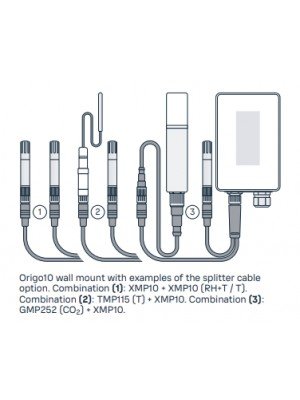

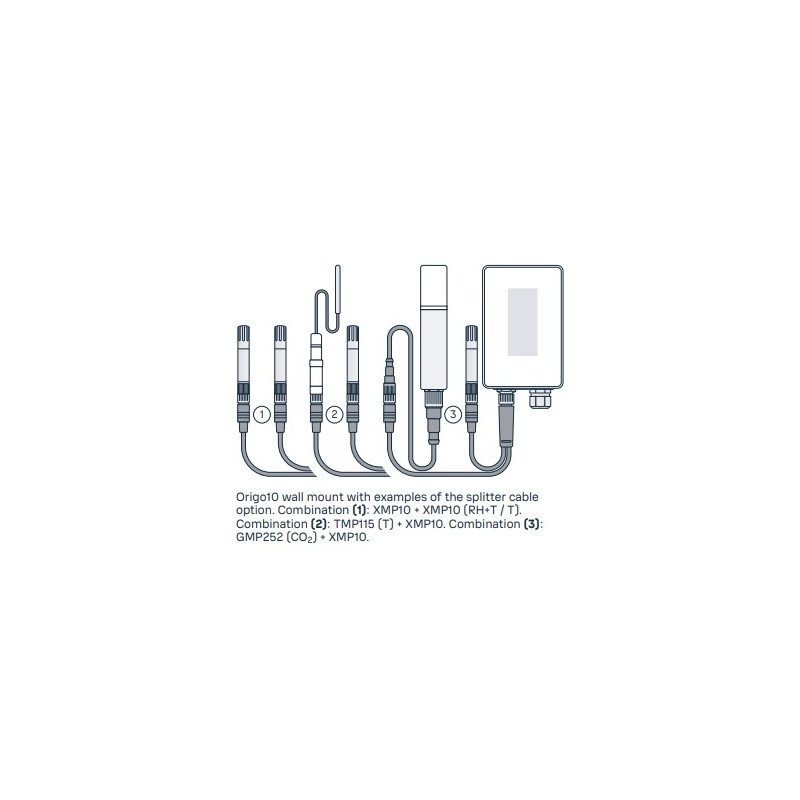

• Flexible Multi-Parameter Measurement Selected configurations can connect two probes to one transmitter using a splitter cable.
• Replaceable Factory-Calibrated Probes Measurement probes can be replaced without replacing the complete transmitter.
• Analog and Digital Outputs Choose 4–20 mA, 0–5 V, 0–10 V, Modbus RTU or BACnet MS/TP according to the transmitter model.

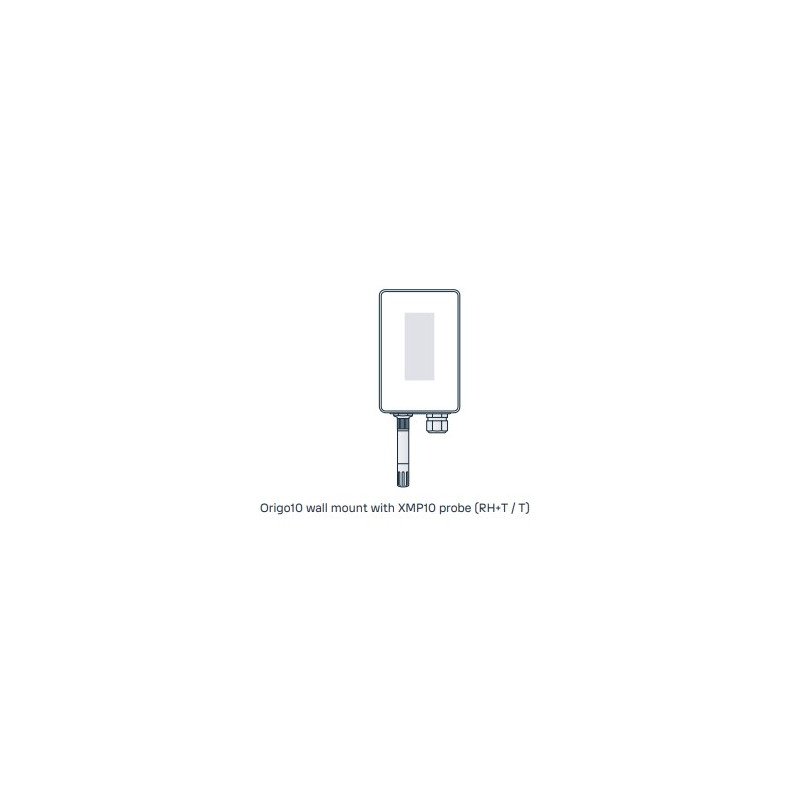

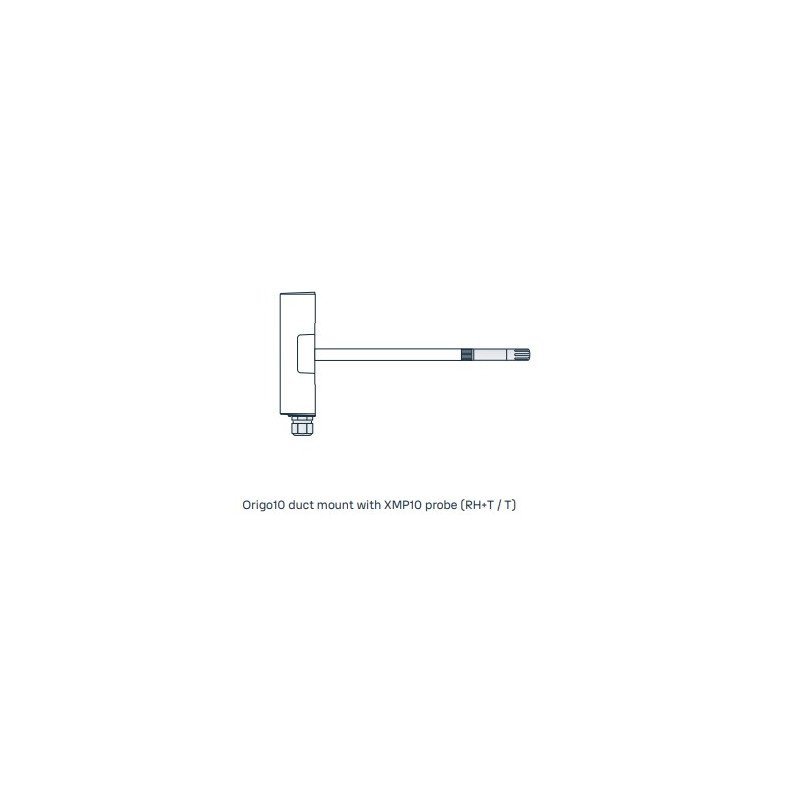

• Wall and Duct Mounting Multiple mounting configurations support room, duct, remote-probe and outdoor measurements.
• Cleanroom-Compatible Construction The IP65 enclosure is suitable for cleanrooms and other demanding indoor environments.

Origo10 Transmitter Models

• Vaisala Origo10A Supports humidity, temperature, CO2 and dew-point configurations with analog or digital outputs.
• Origo10A Analog Configuration Provides three configurable 3-wire analog outputs using 4–20 mA, 0–5 V or 0–10 V signals.
• Origo10A Digital Configuration Supports isolated RS-485 communication using Modbus RTU or BACnet MS/TP.
• Vaisala Origo10L Loop-powered configuration for humidity and temperature measurement.
• Origo10L Analog Configuration Provides two loop-powered 2-wire 4–20 mA outputs.
• Optional Display Available for displaying up to four measurement parameters.

Measurement Capabilities

• Relative Humidity Compatible probes are available for accurate humidity measurement in rooms, ducts and demanding environments.
• Temperature Multiple probe and module options support ambient, duct, freezer and wide-range temperature measurement.
• Carbon Dioxide Compatible with selected Vaisala CARBOCAP probes for CO2 measurement in HVAC and critical facilities.
• Dew Point Supports dew-point measurement using a compatible Vaisala dew-point transmitter.
• Calculated Humidity Parameters Available calculated parameters depend on the connected humidity and temperature probe.
• Two-Probe Measurement Selected Origo10A configurations can combine two compatible probes for multi-parameter measurement.

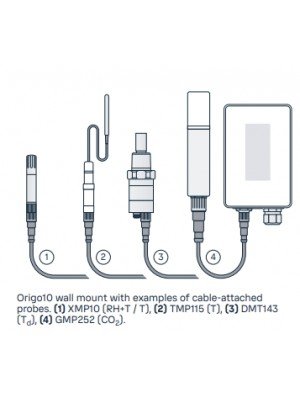

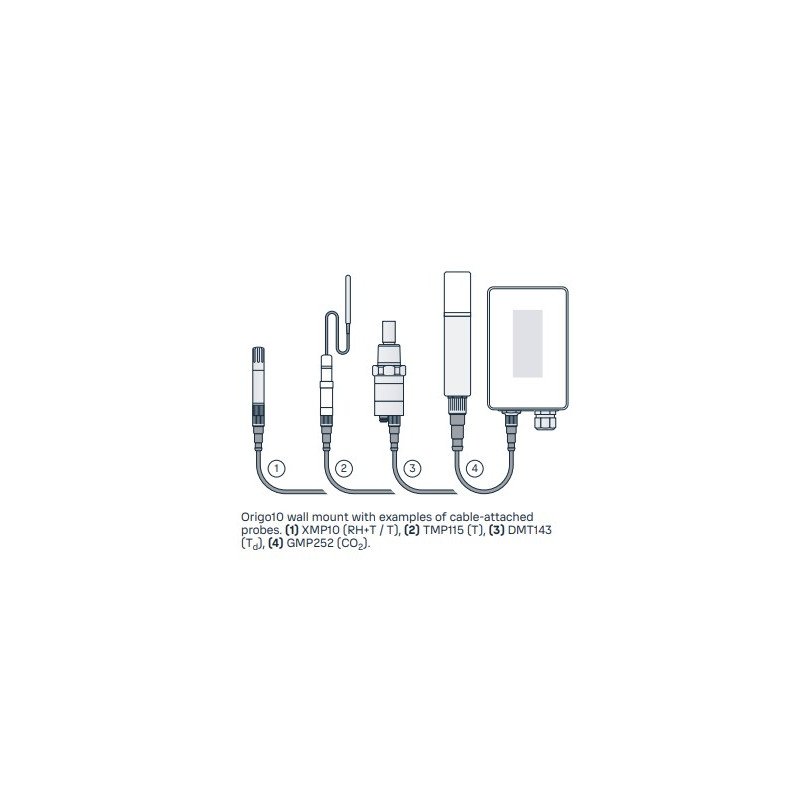

Compatible Vaisala Probes and Modules

• XMP10 Series Exchangeable probe options for humidity and temperature or temperature-only measurement.
• HMP60 and HMP110 Series Compatible probes for humidity and temperature measurement.
• TMP115 Wide-range temperature probe for demanding temperature measurement applications.
• TMM10 Temperature measurement module for compatible Origo10 configurations.
• GMP251 and GMP252 Compatible Vaisala CARBOCAP probes for carbon-dioxide measurement.
• DMT143 Compatible transmitter for industrial dew-point measurement.

General Specifications

• Operating Environment Designed for indoor use.
• Operating Temperature Without Display −40 °C to +60 °C.
• Operating Temperature With Display −20 °C to +60 °C.
• Operating Humidity 0–100% RH under non-condensing conditions.
• Storage Temperature −40 °C to +70 °C.
• Protection Rating IP65.
• Maximum Operating Altitude 2000 metres.
• Enclosure Dimensions 130 × 85 × 37 mm.
• Wall-Mount Weight Approximately 250 g without probes or optional modules.
• Duct-Mount Weight Approximately 270 g without probes or optional modules.
• Enclosure Material Glass-fibre-reinforced polycarbonate with a V-0 fire rating.
• Enclosure Colour RAL 9003 white.

Outputs and Communication

• Origo10A Current Output Three configurable 4–20 mA outputs using a 3-wire connection.
• Origo10A Voltage Output Three configurable 0–5 V or 0–10 V outputs.
• Origo10L Current Output Two loop-powered 4–20 mA outputs using a 2-wire connection.
• Modbus RTU Isolated RS-485 communication for integration with compatible control and monitoring systems.
• BACnet MS/TP Direct digital integration with compatible building-management and automation systems.
• Optional Relay Output The Origo10A supports an optional DIO10 relay module with an optional binary input.

Power Supply

• Origo10A DC Supply 18–30 VDC with a nominal voltage of 24 V.
• Origo10A AC Supply 24 VAC ±10% at 50 or 60 Hz.
• Origo10A Power Consumption Approximately 0.3 W for a transmitter with an XMP10 probe and Modbus or BACnet output; maximum consumption depends on the configuration.
• Origo10L Supply 20–30 VDC with loop resistance of up to 500 ohms.

Easy Configuration and Maintenance

• Exchangeable Probes Replace a probe with a new factory-calibrated probe for fast measurement restoration.
• Vaisala Insight Software Configure, calibrate and adjust the transmitter and connected probes using Vaisala Insight PC software.
• USB-C Service Port Provides convenient connection to Vaisala Insight PC software.
• Indigo80 Compatibility Compatible probes can be configured and calibrated using a Vaisala Indigo80 handheld indicator and the appropriate cable.
• Preconfigured Analog Outputs Analog configurations are supplied ready to transmit signals after a compatible probe is connected.

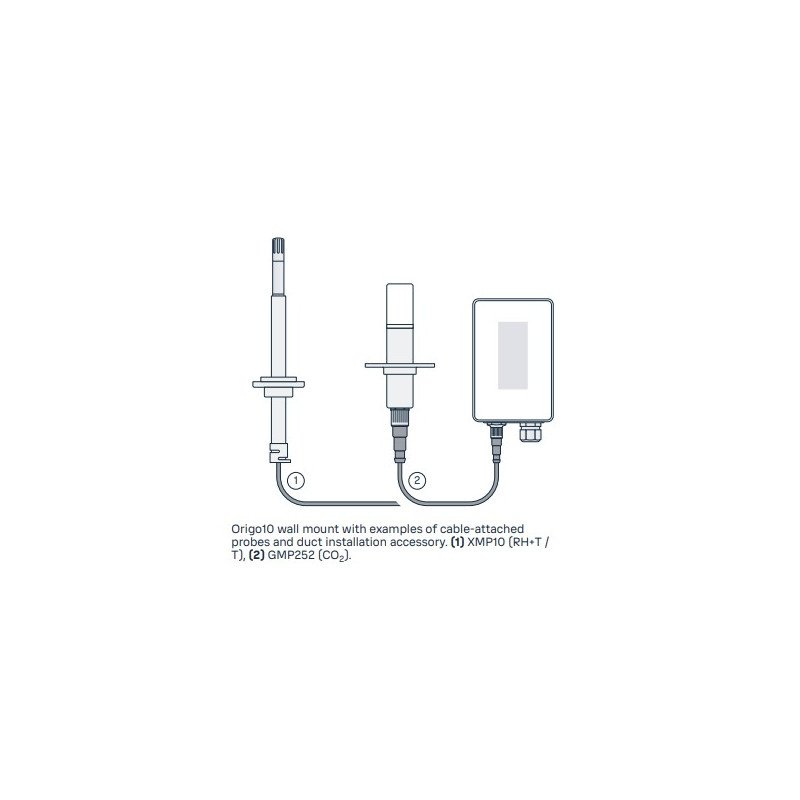

• Installation Accessories Optional duct kits, mounting flanges, probe holders, DIN-rail adapters and magnetic brackets are available.

Typical Applications

• Data Centres Humidity, temperature and dew-point monitoring for critical server rooms and cooling systems.
• Commercial Buildings Indoor environmental monitoring and control for energy-efficient HVAC operation.
• Hospitals and Healthcare Facilities Reliable environmental measurement for critical rooms and ventilation systems.
• Cleanrooms and Semiconductor Facilities Stable measurement for tightly controlled production and research environments.
• Airports and Transportation Facilities Dependable measurement for large-scale ventilation and building-automation systems.
• Industrial Buildings Flexible humidity, temperature, CO2 and dew-point monitoring for demanding facilities.

Vaisala Origo10 Supplier in Malaysia

Seacom Process Instruments supplies the Vaisala Origo10 Series in Malaysia. Our team can assist with selecting the Origo10A or Origo10L transmitter, compatible measurement probes, output signals and mounting accessories.

Contact Seacom for an Origo10 configuration suitable for HVAC systems, data centres, hospitals, cleanrooms, commercial buildings and industrial facilities.
