Vaisala CAB100 Industrial Cabinet for viewLinc CMS

Vaisala CAB100 Industrial Cabinet

The Vaisala CAB100 centralises differential-pressure transmitters, analog inputs and interface components for cleanroom and industrial monitoring with the viewLinc Continuous Monitoring System.

  • Preconfigured cabinet for viewLinc monitoring systems
  • CAB100A and higher-capacity CAB100B models
  • Differential pressure, analog input and hazardous-area options
  • IP54 or IP66 enclosure protection, depending on model

Vaisala CAB100 Industrial Cabinet for viewLinc Continuous Monitoring

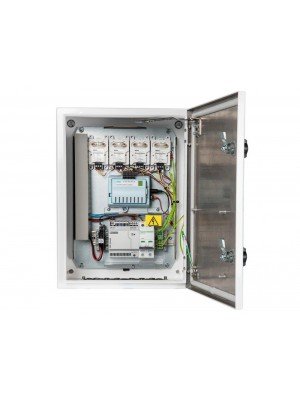

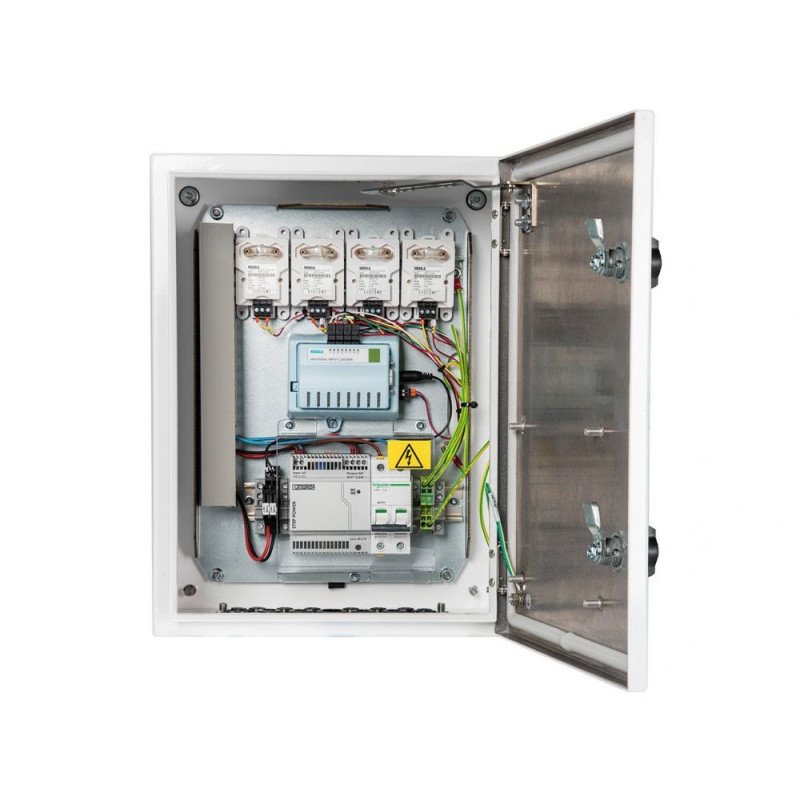

The Vaisala CAB100 is a preconfigured industrial instrument cabinet that centralises differential-pressure transmitters, analog measurement inputs and associated interface equipment for the Vaisala viewLinc Continuous Monitoring System.

Designed for cleanrooms, laboratories, pharmaceutical production and demanding industrial environments, the CAB100 simplifies field installation by integrating selected monitoring components inside one organised, protected enclosure.

Two cabinet sizes are available. The compact CAB100A supports smaller monitoring systems, while the larger CAB100B provides greater channel capacity and supports mixed configurations for more complex facilities.

Why Choose the Vaisala CAB100?

  • Centralised Instrument Integration: Combines selected transmitters, data-acquisition components, power supplies and communication devices inside one cabinet.
  • Designed for viewLinc: Connects compatible measurements to viewLinc Enterprise Server for real-time monitoring, alarming and reporting.
  • Preconfigured Construction: Reduces the amount of instrument assembly and wiring required at the installation site.
  • Flexible Measurement Options: Supports differential pressure, analog inputs, safety barriers and galvanic isolators according to the selected model.
  • Two Cabinet Sizes: CAB100A suits smaller applications, while CAB100B provides higher measurement capacity.
  • Hazardous-Area Integration: Safety-barrier and galvanic-isolator configurations can interface with suitable intrinsically safe measurement devices.
  • Expandable Architecture: Cabinet devices can be changed or expanded subject to the model capacity and approved configuration.
  • Protected Enclosures: CAB100A is rated IP54 and CAB100B is rated IP66 when factory-installed enclosure flanges are used correctly.

CAB100 in a viewLinc Monitoring System

The CAB100 forms the central interface between field measurement devices and the viewLinc monitoring system. It is particularly useful when several cleanroom pressure transmitters or remote analog instruments need to be collected at one organised location.

System LayerFunction
Field Measurement Remote transmitters measure differential pressure, humidity, temperature or another configured parameter
CAB100 Cabinet Centralises selected transmitters, analog input channels, interface devices, power components and wiring
Facility Network Transfers measurement records from the cabinet to the monitoring server
viewLinc Enterprise Server Provides real-time trends, alarms, reports, audit trails and centralised system visibility

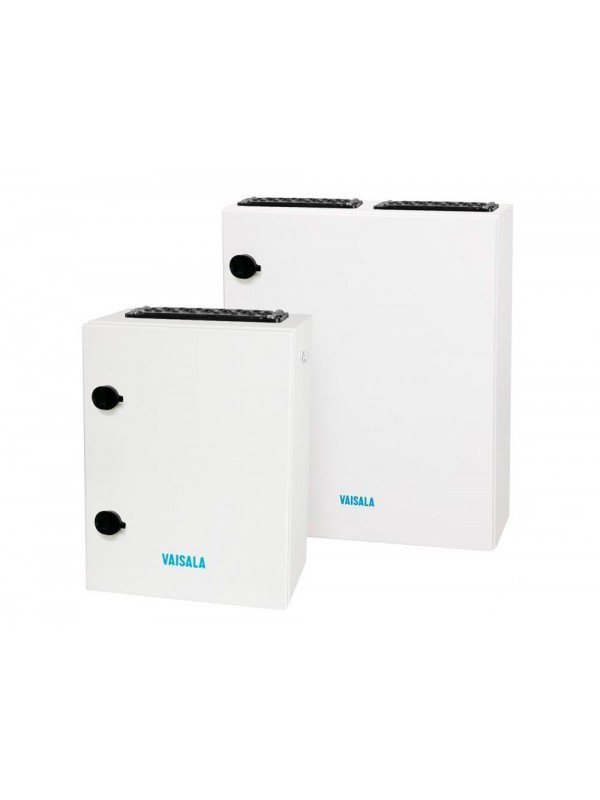

CAB100A and CAB100B Comparison

FeatureCAB100ACAB100B
Cabinet Size Compact cabinet Large-capacity cabinet
Typical Application Smaller cleanroom or industrial monitoring installations Larger facilities requiring more measurement channels or mixed configurations
Maximum PDT101 Transmitters 4 16
Maximum Analog Input Channels 4 32
Maximum Safety Barriers 4 16
Maximum Galvanic Isolators 4 12
Communication Interface Serial port server; vNet PoE interface is available for the applicable PDT101 model Multiport serial port server
Enclosure Protection IP54 IP66 and Type 4
Maximum Power Consumption 20 W 40 W

Important: Maximum capacities depend on the selected cabinet model and configuration. Mixed CAB100B configurations are available with limitations and should be specified according to the complete project requirement.

Available CAB100 Configurations

ConfigurationPurpose

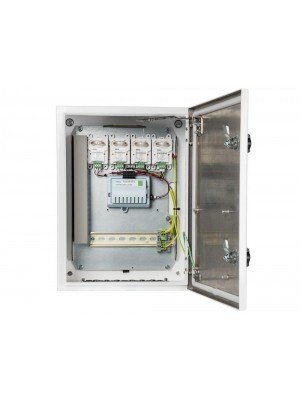

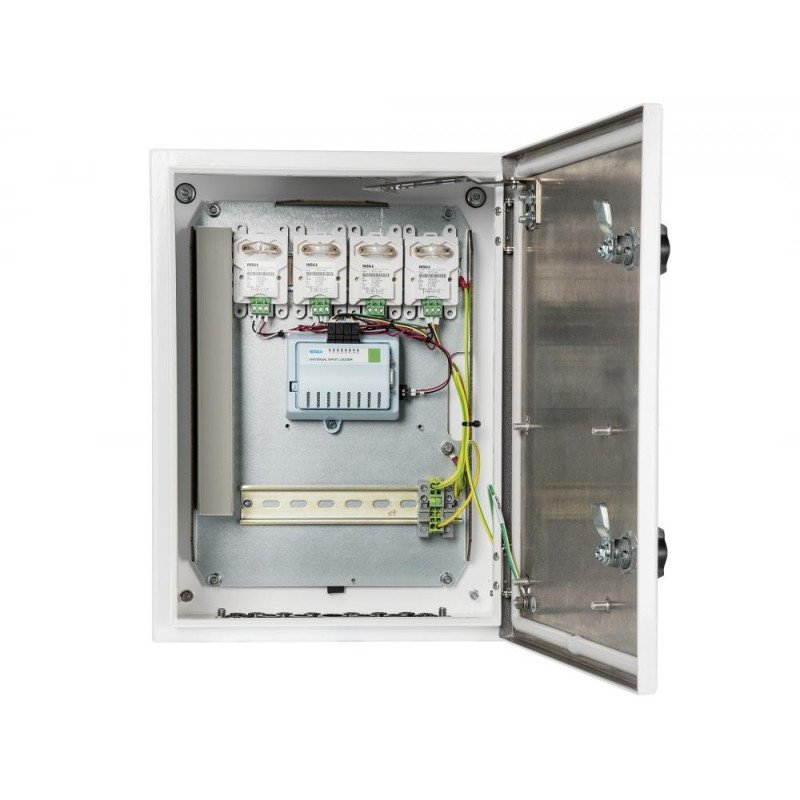

PDT101 Configuration Centralised differential-pressure monitoring for cleanrooms and pressure-controlled areas
Analog Input Configuration Connects compatible remote transmitters with current or voltage outputs through the selected input hardware
Safety-Barrier Configuration Limits electrical energy for suitable intrinsically safe measurement circuits in hazardous-area applications
Galvanic-Isolator Configuration Provides electrical isolation for suitable field measurement circuits

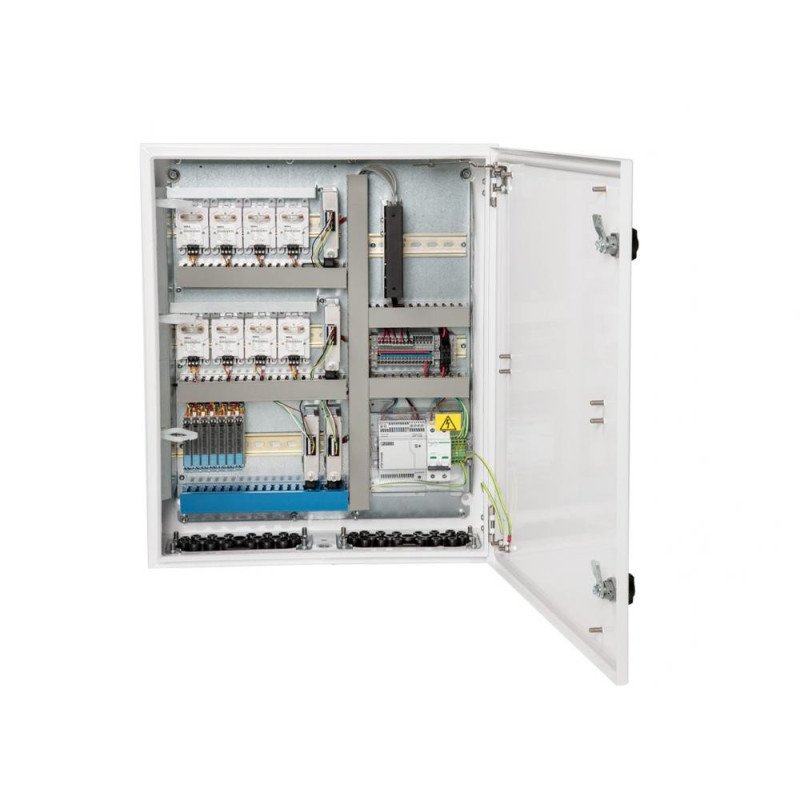

Mixed CAB100B Configuration Combines supported instrument types inside the larger cabinet, subject to configuration limitations

Cleanroom Differential-Pressure Monitoring

One of the principal CAB100 applications is centralised differential-pressure monitoring in pharmaceutical and high-technology cleanrooms. Multiple Vaisala PDT101 differential-pressure transmitters can be installed in the cabinet and connected to pressure tubing from the monitored rooms.

  • Room-to-Room Pressure: Verifies the intended pressure cascade between adjacent controlled spaces.
  • Room-to-Corridor Pressure: Confirms pressure direction between cleanrooms and surrounding corridors.
  • Airlock Monitoring: Supports monitoring of personnel and material airlocks.
  • Centralised Maintenance: Locating transmitters together simplifies access for inspection, zero adjustment and calibration.
  • Reduced Cleanroom Hardware: Pressure tubing can be routed to a cabinet positioned at an accessible technical location.

Analog Measurement Integration

Analog-input configurations allow compatible remote transmitters to be incorporated into the viewLinc monitoring system. This can support parameters beyond the directly connected Vaisala logger probes, provided the signal type, scaling, power requirements and cabinet configuration are compatible.

Common project considerations include:

  • Transmitter output type and measurement scaling
  • Loop-powered or externally powered operation
  • Required channel quantity
  • Cable routing and maximum wiring distance
  • Hazardous-area classification and intrinsic-safety requirements
  • Required measurement units and alarm thresholds in viewLinc

CAB100 analog input wiring is not surge protected. According to the installation requirements, analog input wiring must not exceed 30 metres and must not originate from outside the building in which the cabinet is installed.

Operating and Electrical Specifications

SpecificationValue
Operating Environment Indoor use; not intended for wet locations
Operating Temperature 0 °C to +45 °C
Storage Temperature -40 °C to +70 °C
Operating Humidity 5–90% RH, non-condensing
Maximum Operating Altitude 2,000 m
AC Power 100–240 V AC, 50–60 Hz, ±10%
Internal Power-Supply Module 24 V DC / 2.5 A, fused 2 A
Power over Ethernet IEEE 802.3af Class 1 for the applicable CAB100A PDT101 model
Maximum Power Consumption 20 W for CAB100A; 40 W for CAB100B

Mechanical Specifications

SpecificationCAB100ACAB100B
Enclosure Material Painted aluminium Painted AISI 316 stainless steel
Outer Dimensions 243 × 300 × 418 mm, including enclosure, mounting frame, lockable door and flanges 257 × 500 × 618 mm, including enclosure, mounting frame, lockable door and flanges
Enclosure Weight 5.4 kg with backplate 18.7 kg with backplate
Maximum Packaged Weight 10 kg, depending on configuration Approximately 30 kg, depending on configuration
Protection Rating IP54 IP66 and Type 4

Common CAB100 Applications

  • Pharmaceutical Cleanrooms: Differential-pressure and environmental monitoring for controlled production areas.
  • Biotechnology Facilities: Centralised monitoring of laboratories, processing rooms and controlled environments.
  • Medical-Device Manufacturing: Monitoring of cleanrooms and pressure-controlled production spaces.
  • Semiconductor Cleanrooms: Integration of critical environmental and pressure measurements.
  • Hazardous Areas: Connection of suitable intrinsically safe instruments through an approved safety-barrier or galvanic-isolator configuration.
  • Industrial Facilities: Central collection of compatible analog measurements for continuous monitoring.

Related viewLinc Monitoring Components

Selecting the Correct CAB100 Configuration

Project RequirementRecommended Starting Point
Up to four differential-pressure points CAB100A PDT101 configuration
Up to four remote analog inputs CAB100A analog-input configuration
More than four pressure points CAB100B PDT101 or suitable mixed configuration
Large analog monitoring system CAB100B analog-input or suitable mixed configuration
Intrinsically safe field instrumentation Safety-barrier or galvanic-isolator configuration selected according to the hazardous-area design
Multiple measurement types Mixed CAB100B configuration reviewed against capacity and component limitations

Vaisala CAB100 Supplier in Malaysia

Seacom Process Instruments supplies and supports the Vaisala CAB100 Industrial Cabinet and viewLinc Continuous Monitoring System in Malaysia.

Our team can assist with monitoring-point selection, cabinet sizing, differential-pressure range selection, analog-input requirements, system architecture, installation, commissioning, calibration planning and GxP validation documentation.

Contact Seacom with your room layout, measurement parameters, channel quantity, field transmitter signals, hazardous-area requirements and preferred network architecture for a suitable CAB100 configuration.
