Kunak Pro Air Quality Sensor

Kunak Air Quality Sensor

The Kunak AIR Pro is a high-performance, sensor-based air quality monitoring station engineered for precise, real-time, multi-pollutant environmental assessment. Awarded Most Accurate Multi-Pollutant Sensor in the AIRLAB Microsensors Challenge, it delivers near-reference data quality for cities, heavy industries, researchers and smart-city infrastructure.

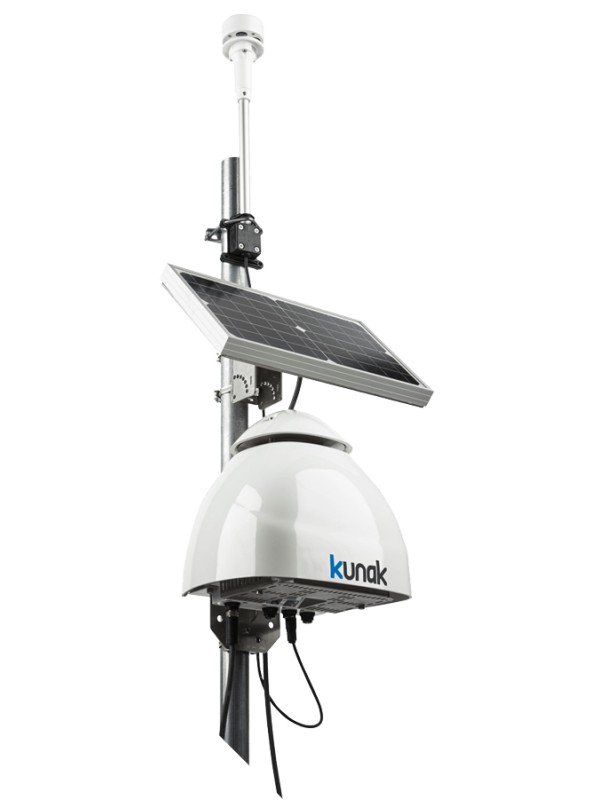

Kunak AIR Pro Outdoor Air Quality Monitor

The Kunak AIR Pro is a professional outdoor air quality monitoring station designed for accurate, real-time environmental assessment.

It provides near-reference measurement performance for smart cities, industrial facilities, research projects, construction sites and environmental studies.

Why Choose Kunak AIR Pro?

  • High Measurement Accuracy: Designed and field-tested for professional environmental monitoring applications.
  • Multi-Pollutant Measurements: Measures particulate matter and multiple target gases simultaneously.

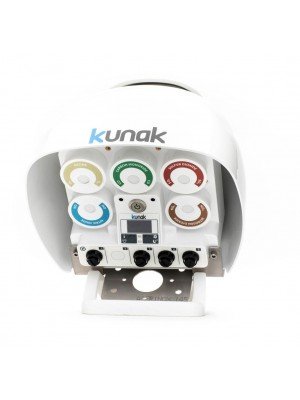

  • Smart Sensor Cartridges: Factory-calibrated sensor cartridges can be replaced without removing the complete monitoring station.
  • Autonomous Outdoor Operation: Supports continuous operation using solar power and an internal backup battery.
  • Remote Communication: Transmits measurements through cellular, Ethernet and Modbus communication.

Measurement Capabilities

  • Particulate Matter: PM1, PM2.5, PM10, total suspended particles and total particle count.
  • Target Gases: Carbon monoxide, carbon dioxide, nitrogen monoxide, nitrogen dioxide, ozone, sulphur dioxide, hydrogen sulphide, ammonia, methane and volatile organic compounds.
  • Environmental Parameters: Temperature, relative humidity, atmospheric pressure and dew point.
  • Optional External Measurements: Wind speed, wind direction, noise and rainfall.

Technical Specifications

  • Enclosure: IP65 weather-resistant construction.
  • Dimensions: 257 × 270 × 225 mm.
  • Weight: Less than 3.5 kg.
  • Operating Temperature: −20 °C to +60 °C.
  • Operating Humidity: Up to 99% RH under non-condensing conditions.
  • Sampling Interval: Configurable from 10 seconds to 24 hours.
  • Internal Battery: 26 Ah lithium battery for independent operation, depending on configuration.
  • Power Consumption: Low-power operation based on the selected sensor configuration.

Kunak AIR Cloud Platform

Kunak AIR Cloud centralizes monitoring stations in a browser-based interface. Users can review real-time measurements, visualize monitoring locations, analyse historical data and produce automated air-quality reports.

Measurement data can also be exported for integration with authorized third-party monitoring and reporting systems.

Common Applications

  • Smart Cities: Identify localized pollution conditions and evaluate traffic-management measures.
  • Industrial Perimeter Monitoring: Monitor emissions around factories, chemical plants, mines and manufacturing facilities.
  • Environmental Studies: Conduct baseline surveys for research, infrastructure projects and environmental audits.
  • Construction Monitoring: Monitor dust, gases and environmental conditions around active construction areas.
  • Community Monitoring: Provide reliable local air-quality information for public and private initiatives.

Download

  Kunak Air Pro Catalogue   (725.81k)
