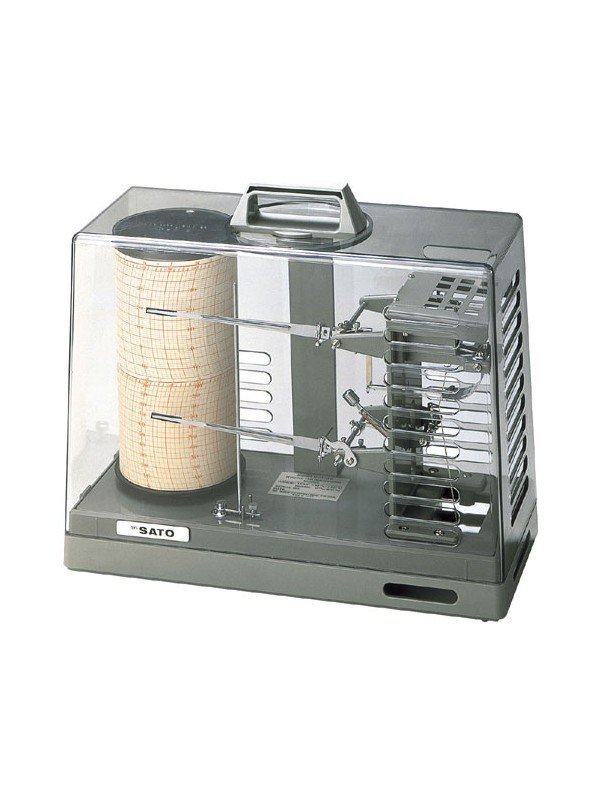

Quartz Thermohygrograph Sigma II

Sato Thermohygrograph NSII-Q (as known as Sato Thermohygrograph SigmaII, Sato Thermohygrograph 7210-00, Sato Thermohygrograph 7211-00) comes with all transparent acryl-resin made case provides a full view of the chart paper without opening the case

Features:
* The required time cycle is selected by simply pushing the changeover switch
* Recording charts is made by non-dust paper and it is with holes for easy binding in a file .

Model Sato SigmaII , Sato NSII-Q, 7210-00, 7211-00
Clock Quartz clock: 1 day, 7 day and 32 day, easily changeable by toggle of speed switch
Sensors Temperature: Aged bimetal strip
Humidity: Human hair bundle
Measurement Range Temperature: -15 to 40 deg C
Humidity: 0-100%rH
Accuracy Tempeature: ±1 º C (10-30 ºC), ±2 ºC (other temperature within the measurement range) Humidity: ± 3% (at 15 to 25 ºC, 20 to 95 %), ±5% (other condition within the measurement range)
Chart graduation Temperature: 1ºC, Humidity: 1%
Dimensions and weight 336 W x 295 H x 148 D mm, 3.1kg



Consumables

  • No. 7211-60 1 day chart, range -10/50°C, 0-100% (400 sheets/box)
  • No. 7210-60 1 day chart, range -15/40°C, 0-100% (400 sheets/box)
  • No. 7211-62 7 day chart, range -10/50°C, 0-100% (55 sheets/box)
  • No. 7210-62 7 day chart, range -15/40°C, 0-100% (55 sheets/box)
  • No. 7211-64 32 day chart, range -10/50°C, 0-100% (55 sheets/box)
  • No. 7210-64 32 day chart, range -15/40°C, 0-100% (55 sheets/box)
  • No. 7210-90 Spare cartridge pen (violet)
  • No. 7210-92 Spare cartridge pen (red)
  • No. 7238-22 Axial AC fan in 100 to 110VAC use

Specific References

Download

Sigma II catalogue

Quartz Thermohygrograph Sigma II

Download (309.1k)
