Vaisala HMM105 Digital Humidity Module for Environmental Chambers
The Vaisala HMM105 provides reliable humidity measurement for integration into environmental chambers, incubators and OEM equipment.
- 0–100% RH measurement range
- I2C output for relative humidity or dew point
- Detachable 12 mm probe with 300 mm flexible cable
- Probe withstands +180 °C continuously and +200 °C temporarily
Vaisala HMM105 Digital Humidity Module
The Vaisala HUMICAP® HMM105 is an open-frame module for equipment manufacturers who need dependable humidity measurement inside an environmental chamber or incubator. Its separate probe assembly allows the sensing point to be placed inside the chamber while the circuit board remains in a suitable protected location.
The module communicates directly with the host controller through an I2C interface. The controller can read relative humidity or dew point, monitor device status, change operating parameters and carry out measurement adjustments without adding an external transmitter.
Designed for Chamber and Incubator Integration

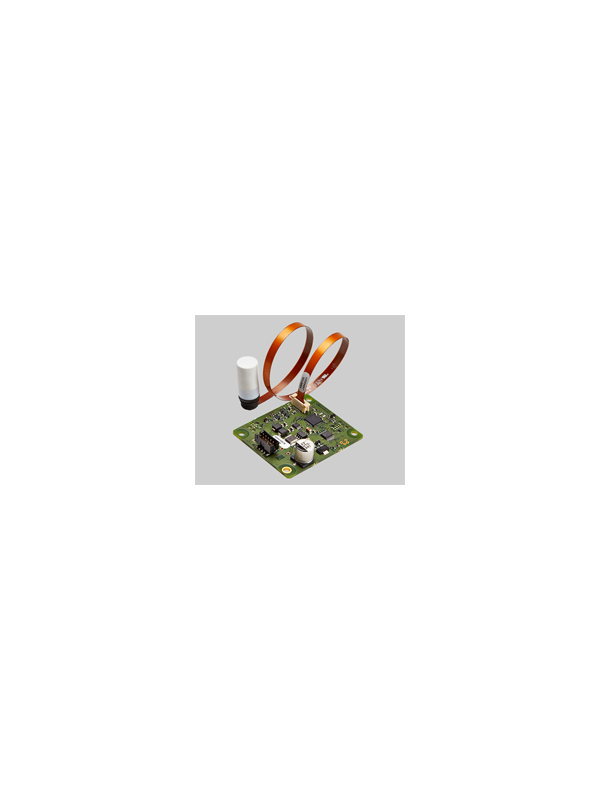

The HMM105 combines a compact circuit board with a detachable probe head, M10 × 1 mounting thread and 300 mm flexible cable. This arrangement simplifies installation in equipment where available space, service access and the separation of electronics from the measurement area must be considered.
Full temperature compensation supports reliable humidity measurement across demanding chamber conditions. The probe can operate continuously at temperatures up to +180 °C and tolerate short-term exposure up to +200 °C, making it suitable for equipment that includes high-temperature cycles or heat sterilisation. The component board must remain within its specified operating-temperature range.
Key HMM105 Features
- Measures relative humidity from 0–100% RH
- Provides relative-humidity or dew-point values through I2C
- I2C slave interface for integration with an OEM controller
- Vaisala HUMICAP® 180R sensor for stable humidity measurement
- Detachable probe assembly for practical equipment installation
- 12 mm probe head with M10 × 1 thread
- 300 mm flexible probe cable
- Two-point traceable calibration certificate supplied
HMM100, HMM105 or HMM170?
All three modules are intended for integration into environmental chambers or OEM equipment. The correct choice depends mainly on the required electrical interface, chamber conditions and maintenance functions.
| Selection point | Vaisala HMM100 | Vaisala HMM105 | Vaisala HMM170 |
|---|---|---|---|
| Best suited for | Conventional chambers requiring one analog measurement output | OEM chambers and incubators with direct I2C controller integration | Demanding chambers requiring higher accuracy, multiple outputs or condensation protection |
| Measured parameters | Relative humidity or dew point | Relative humidity or dew point | Relative humidity, temperature, dew point and other calculated parameters |
| Humidity range | 0–100% RH | 0–100% RH | 0–100% RH |
| RH accuracy at −20 to +40 °C | ±2% RH from 0–90% RH | ±2% RH from 0–90% RH | Approximately ±1.0 to ±1.7% RH, depending on the reading |
| Primary output | One configurable current or voltage output | Digital I2C | Modbus RTU and three configurable analog outputs |
| Probe temperature capability | Up to +180 °C, depending on probe and filter | Up to +180 °C continuously; +200 °C short-term peak | −70 to +180 °C |
| Probe arrangement | Plastic or stainless-steel probe with several cable and length options | Detachable 12 mm probe with fixed 300 mm flexible cable | 12 mm stainless-steel probe with 2, 5 or 10 m cable options |
| Condensation and chemical protection | Standard HUMICAP measurement without active probe heating | Standard HUMICAP measurement without active probe heating | Optional sensor purge, probe heating and sensor warming |
| Configuration and servicing | Service port and on-board adjustment trimmers | Configuration and adjustment through the I2C interface | Vaisala Insight software through the integrated service port |
Quick selection: choose HMM100 when the chamber controller needs a conventional analog signal. Choose HMM105 when direct I2C communication and a compact detachable probe are required. Choose HMM170 for new demanding designs that need better accuracy, Modbus RTU, several analog outputs, longer probe cables or active condensation protection.
Integration Information to Confirm
Before ordering the HMM105, confirm the chamber temperature and humidity range, controller supply voltage, I2C implementation, preferred output parameter, probe mounting position, electronics-board location and exposure during sterilisation or cleaning cycles.
The HMM105 is a component module intended for integration by an equipment manufacturer or system designer. The finished equipment should provide suitable mechanical protection, power, wiring, grounding and electromagnetic-compatibility arrangements.
Vaisala HMM105 Supplier and Technical Support in Malaysia
Seacom Process Instruments supplies and supports the Vaisala HMM105 Digital Humidity Module in Malaysia for environmental chambers, incubators, test equipment and other OEM humidity-measurement applications.
Our team can assist with model comparison, probe mounting, controller-interface requirements, installation planning and calibration support. We can also help determine whether the analog HMM100, I2C HMM105 or advanced HMM170 is the most suitable platform for your equipment.
Contact Seacom with your chamber operating range, sterilisation temperature, controller interface, available installation space and required output so we can recommend a suitable humidity-module configuration.
