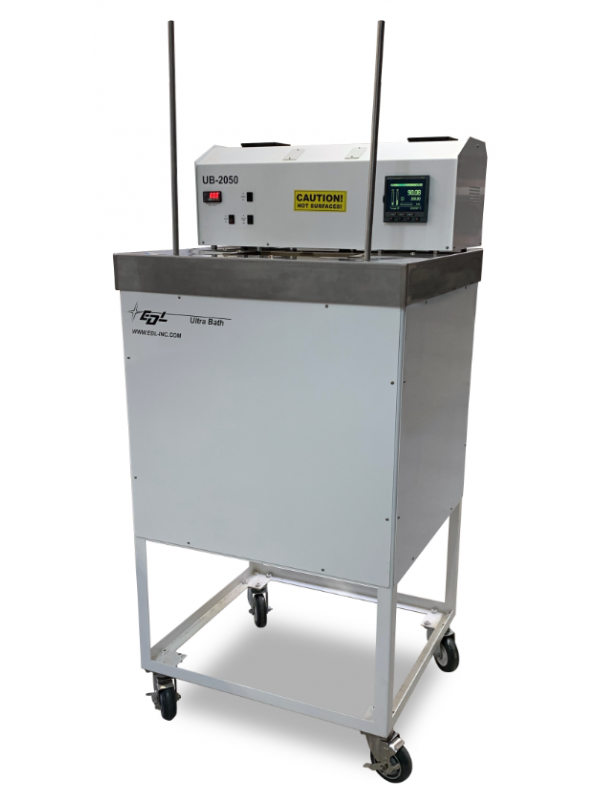

EDL Ultra Bath UB Series Temperature Calibration Baths
The EDL Ultra Bath (UB) Series provides a stirred temperature bath for comparison calibration of immersion thermometers and temperature probes. Its deep tank accommodates multiple sensors, helping laboratories organise calibration work around a shared temperature source.
Three models cover different operating ranges from −40°C to 550°C. Select the bath for your required calibration points; this combined range does not apply to a single model.
Key Features
- Large bath volume for comparing several suitable sensors at once.
- 18-inch tank depth for long immersion probes.
- Stirred medium for temperature stability and uniformity.
- Programmable controller and built-in sensor holding system.
- Filling and draining facilities for bath maintenance.
- iTools software and a NIST-traceable calibration report included by EDL.
Compare Ultra Bath Models
| Model | Temperature range | Selection focus |
|---|
| UB-4010 |
−40 to 100°C |
Calibration points below ambient and up to 100°C. |
| UB-1020 |
50 to 200°C |
Intermediate-temperature immersion calibration. |
| UB-2050 |
200 to 550°C |
High-temperature immersion calibration. |
The bath medium must suit the selected model and operating temperatures. Confirm the supplied medium and its handling requirements when specifying the system.
Thermometers and Probes
The UB range is intended for suitable bimetal thermometers, liquid-in-glass thermometers, standard platinum resistance thermometers (SPRTs), platinum resistance thermometers (PRTs), RTDs and other immersion probes.
Check the probe's permissible immersion depth, construction and temperature rating. Keep connectors and components that are not designed for immersion outside the bath medium.
Tank and System Specifications
| Parameter | Published specification |
|---|
| Inside tank depth |
457.2 mm (18 inches) |
| Access opening |
127 × 279.4 mm (5 × 11 inches) |
| Capacity |
42 litres |
| Wetted parts |
304 stainless steel |
| Resolution |
0.01°C |
| Interface |
RS-232 and iTools |
| Published power rating |
240 V AC, 25 A, 60 Hz; confirm the required site configuration before ordering. |
Display resolution is not calibration accuracy. Bath stability and uniformity depend on temperature and operating conditions; the complete measurement uncertainty also includes the reference instrument and calibration method.
Original Specification Illustration
Need Help Selecting a Temperature Calibration Bath?
Contact Seacom with your calibration temperature range, probe types and dimensions, number of sensors and available power supply. We can help review the appropriate UB model and the requirements for your calibration setup.
