The EDL DBB Series combines hot and cold black body targets for checking compatible infrared thermometers and pyrometers.
The EDL DBB Series combines hot and cold black body targets in one instrument for checking compatible infrared thermometers and pyrometers. The two target ranges support calibration work across low and high temperatures without changing to a separate source.
Choose the DBB-350-DRL or DBB-650-DRL according to the highest temperature you need. Both models provide a cold-side range of −30°C to 110°C.
| Model | Cold-side range | Hot-side range |
|---|---|---|
| DBB-350-DRL | −30 to 110°C | Ambient to 350°C |
| DBB-650-DRL | −30 to 110°C | Ambient to 650°C |
| Parameter | Published specification |
|---|---|
| Target diameter | 50.8 mm (2 inches) |
| Emissivity | 0.98 ±0.02 |
| Stability | ±0.05°C |
| Accuracy | ±1°C; EDL also notes ±2°C depending on the environment. |
| Resolution | 0.1°C |
| Control sensors | RTD on the cold side; thermocouple on the hot side. |
| External reference provision | 0.125-inch (3.175 mm) reference sensor holes on both sides; reference sensors sold separately. |
| Weight | Approximately 9.07 kg |
| Power supply | 120 V AC, 10 A, 50/60 Hz; 240 V AC version available. |
Stability and display resolution are not the complete calibration uncertainty. Confirm performance at your required temperatures, with the intended reference system and operating environment.
The thermometer's measurement spot must fit within the usable target at the chosen distance. Check its optical specification, spectral range and emissivity setting before selecting the calibrator. A laser aiming mark alone does not establish the full measurement spot size.
Position the instrument consistently and allow the target to stabilise before recording readings. For traceable calibration work, use the applicable source calibration data and measurement procedure.
External reference sensors can be selected for the hot and cold sides with a suitable calibrated readout. Confirm the temperature rating and reference configuration when ordering. The optional BB-APP aperture supports assessment of spot-size and size-of-source effects.

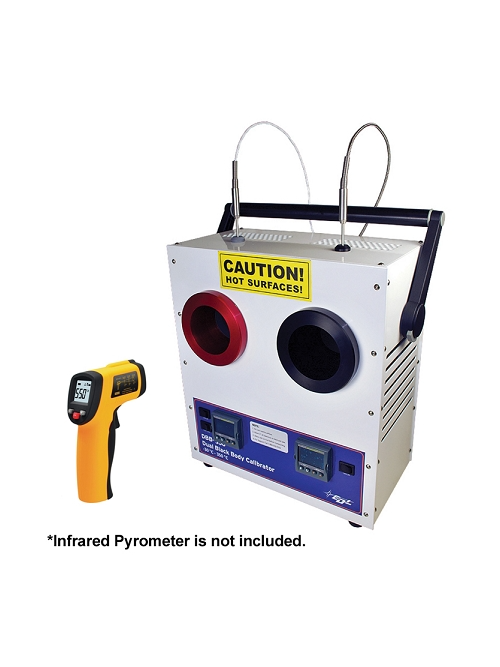

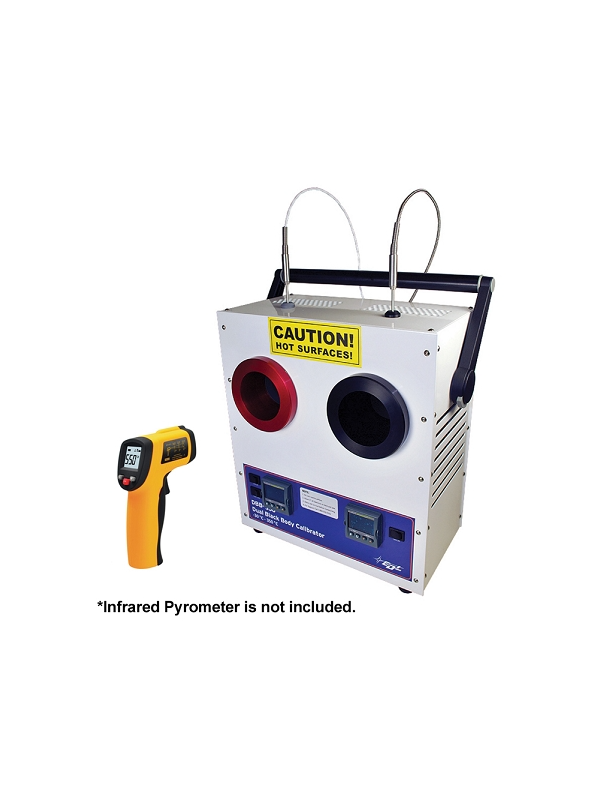

The illustration is retained from the existing page. Use the current temperature ranges above and confirm the supplied configuration before ordering.
Contact Seacom with your infrared thermometer model, required temperature points, measurement distance and accuracy requirements. We can help review the appropriate DBB model, reference sensors and accessories for your calibration setup.
