3-in-1 Dewpoint, Pressure, Temperature Transmitter for SF6 Gas DPT145
618.88KB
Vaisala DPT145 SF6 Multiparameter Transmitter – Discontinued
The Vaisala DPT145 provides online dew-point, pressure and temperature measurement for SF6-insulated electrical equipment. The model is being discontinued and should not be specified for new projects.
- Measures dew point, pressure and temperature
- Calculates SF6 density, normalised pressure and moisture in ppm
- RS-485 communication with Modbus RTU
- Contact Seacom for availability and replacement assessment
Product transition: Vaisala is discontinuing the DPT145 and advises that it must not be specified for new projects. No universal direct replacement has been announced because the correct solution depends on the SF6 equipment, required parameters, mechanical connection and monitoring architecture. Existing users should contact Seacom for availability, service support and an application-specific replacement assessment.

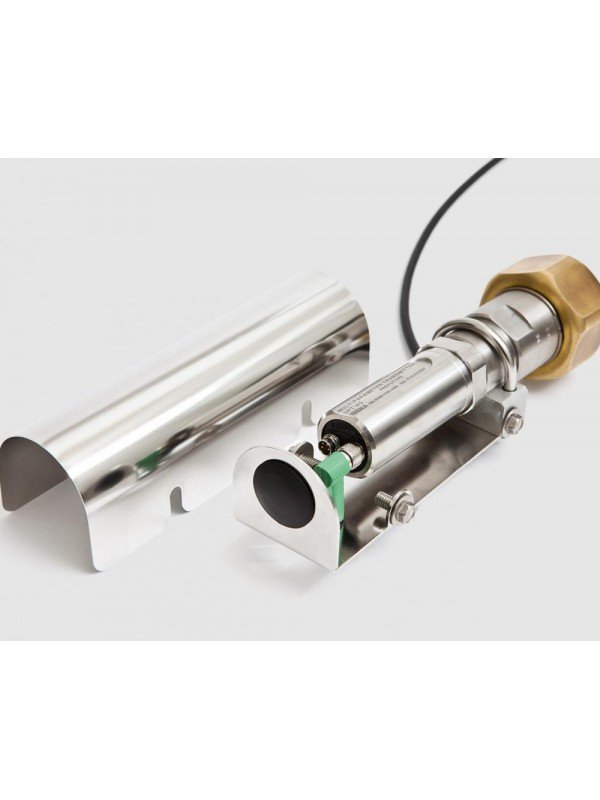

Vaisala DPT145 Multiparameter Transmitter for SF6 Gas
The Vaisala DPT145 is a compact multiparameter transmitter developed for online condition monitoring of SF6 gas used in high-voltage switchgear, circuit breakers and other gas-insulated electrical equipment.
One instrument measures dew point, absolute pressure and temperature. From these measurements, it calculates SF6 or SF6/N2 mixture density, pressure normalised to +20 °C, moisture concentration in ppm and dew point converted to atmospheric pressure.
Seven SF6 Parameters from One Transmitter
| Parameter | Type | Measurement or calculation range |
|---|---|---|
| Dew point | Measured | −60 to +30 °C Td |
| Absolute pressure | Measured | 1–12 bar |
| Temperature | Measured | −40 to +80 °C |
| Normalised pressure | Calculated | 1–12 bar, normalised to +20 °C |
| SF6 or SF6/N2 density | Calculated | 0–100 kg/m³ |
| Moisture by volume | Calculated | 40–40,000 ppm |
| Atmospheric-pressure dew point | Calculated | −65 to +30 °C |
Online Monitoring of SF6 Insulation Condition
Moisture and gas pressure are important indicators of SF6 insulation condition. Online dew-point measurement identifies increasing moisture, while direct and normalised pressure measurements help reveal gradual or sudden leakage.
Combining seven parameters in one transmitter reduces the number of mechanical connections, cables and separate instruments required by an OEM or condition-monitoring system. Continuous trend data also reduces the need for manual sampling and helps avoid unnecessary SF6 release during routine checks.
Measurement Performance
| Specification | DPT145 performance |
|---|---|
| Dew-point accuracy | ±3 °C Td within the specified measurement area |
| Pressure accuracy | ±0.4% of full scale at +23 °C |
| Temperature accuracy | ±0.5 °C from 0 to +40 °C; ±1 °C across −40 to +80 °C |
| Density accuracy for pure SF6 | ±1% FS from 0 to +40 °C; ±2.2% FS from −40 to +60 °C |
| Digital output | RS-485 with Vaisala protocol or Modbus RTU |
| Operating pressure | 1–12 bar |
| Mechanical durability | 0–50 bar |
| Enclosure | AISI 316L stainless steel, IP66 |
Mechanical Connection Options
- DILO DN20 connector
- DILO DN8 connector
- ABB Malmquist-compatible connector
- Alstom G1/2-inch-compatible connector
Each mechanical connection is helium leak-tested at the factory. A compatible weather shield is required for continuous outdoor installation.
Important Replacement Guidance
The DPT145 combines SF6-specific calculations with dew-point, pressure and temperature measurement. A standard compressed-air dew-point transmitter is therefore not automatically a direct replacement.
Do not substitute DPT146 without an engineering review: DPT146 is intended for compressed air and does not reproduce the complete SF6-specific density and normalised-pressure functions of DPT145.
For a replacement assessment, confirm the measured gas, pressure range, required parameters, mechanical connector, electrical supply, Modbus integration, installation environment, existing controller calculations and whether a single-device or multi-instrument solution is acceptable.
Existing DPT145 Installations
For an installed DPT145, retain the full model code, mechanical-connector details, communication settings, calibration records and controller register mapping. This information is important when checking remaining product availability, arranging service or developing a replacement plan.
Continue operating and maintaining existing instruments according to the Vaisala documentation and the safety procedures applicable to SF6-insulated electrical equipment.
Vaisala DPT145 Support in Malaysia
Seacom Process Instruments supports existing Vaisala DPT145 SF6 multiparameter transmitter installations in Malaysia and can assist with product-status checks, remaining availability, connector identification, Modbus integration, calibration planning and replacement assessment.
Contact Seacom with the DPT145 model code, equipment manufacturer, SF6 pressure range, mechanical connection, required measurement parameters and control-system details so we can review the most suitable path forward.
