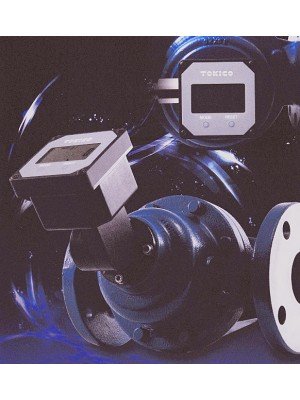

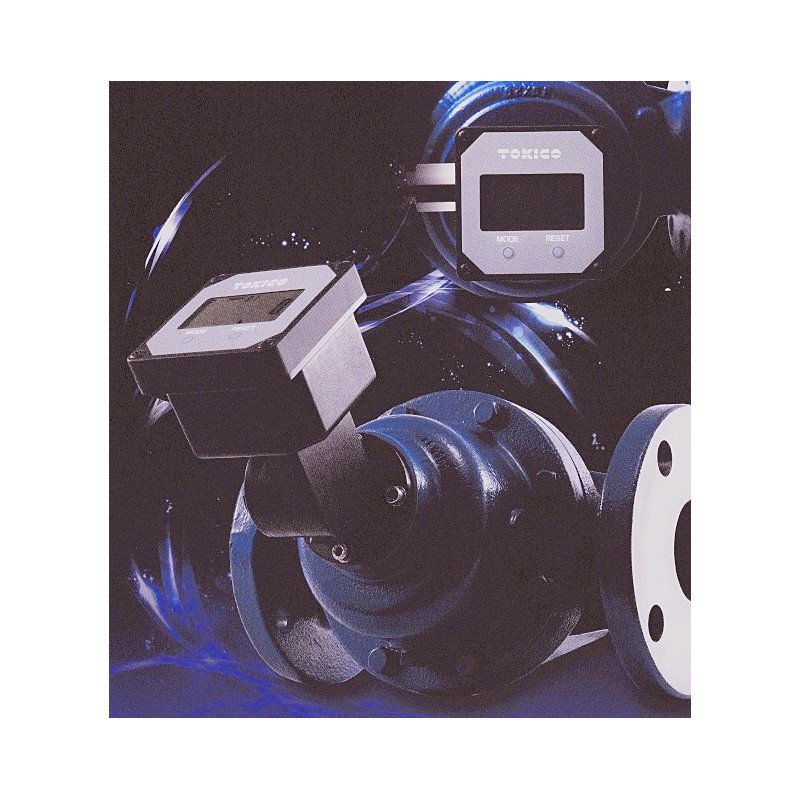

Tokico FGB FRL FRY Electronic Positive Displacement Oil Flow Meter

The Tokico FRL and FRY are high-accuracy electronic positive displacement flow meters for diesel, kerosene, fuel oil, heavy oil, lubricating oil, crude palm oil and other compatible industrial liquids.

The Tokico 75 Series combines direct volumetric measurement with a large LCD display and optional pulse, analogue and alarm outputs for local indication and integration with industrial monitoring systems.

Tokico Electronic 75 Series Oil Flow Meter

The Tokico Electronic 75 Series provides accurate positive-displacement measurement of kerosene, diesel, fuel oil, heavy oil and lubricating oil. Choose the compact FGB, broad-range FRL or high-temperature FRY measuring unit, followed by the required 75XX, 75PX, 75XA or 75PA output configuration.

  • ±0.5% measurement accuracy
  • Easy-to-read multifunction digital indicator
  • Pulse and 4–20 mA output options
  • Models for flow rates from 5 L/h to 160 m³/h

Tokico Electronic 75 Series Positive Displacement Oil Flow Meter

The Tokico Electronic 75 Series combines a high-accuracy positive-displacement measuring unit with an easy-to-read electronic indicator. It is designed for measuring kerosene, diesel, light oil, fuel oil, heavy oil, lubricating oil and other compatible petroleum products.

The series is available with three measuring-unit families. The FGB covers smaller connection sizes and lower flow rates, the FRL provides the widest standard size and flow range, and the FRY is intended for robust heavy-oil and lubricating-oil service at fluid temperatures up to 150 °C.

After selecting the appropriate measuring unit, choose one of four electronic configurations: 75XX, 75PX, 75XA or 75PA. These variants determine whether the instrument provides local indication only, pulse output, 4–20 mA output or both output signals.

Why Choose the Tokico Electronic 75 Series?

  • High Measurement Accuracy: Positive-displacement measurement provides an accuracy of ±0.5% across the specified operating range.
  • Wide Product Range: FGB, FRL and FRY measuring units cover connection sizes from 15 to 100 mm and flow rates from 5 L/h to 160 m³/h.
  • Clear Digital Display: The multifunction electronic indicator provides convenient local flow information and totalisation.
  • Flexible System Integration: Select pulse output, 4–20 mA analog output, both signals or a local-display-only configuration.
  • Oil-Service Construction: Available configurations support kerosene, diesel, light oil, heavy oil, lubricating oil and other compatible petroleum products.
  • Horizontal or Vertical Installation: FRL and FRY models can be installed in horizontal or vertical piping when the installation requirements are followed.
  • High-Temperature Option: The FRY is a dedicated heavy-oil and lubricating-oil model rated for fluid temperatures up to 150 °C.
  • Industrial Durability: The simple positive-displacement measuring principle supports dependable long-term operation in fuel-transfer and process applications.

FGB, FRL and FRY Model Selection

The meter-body code identifies the hydraulic measuring unit. It must be selected separately from the electronic output suffix.

Meter ModelPosition in the SeriesConnection SizeFlow-Rate RangeRecommended Application

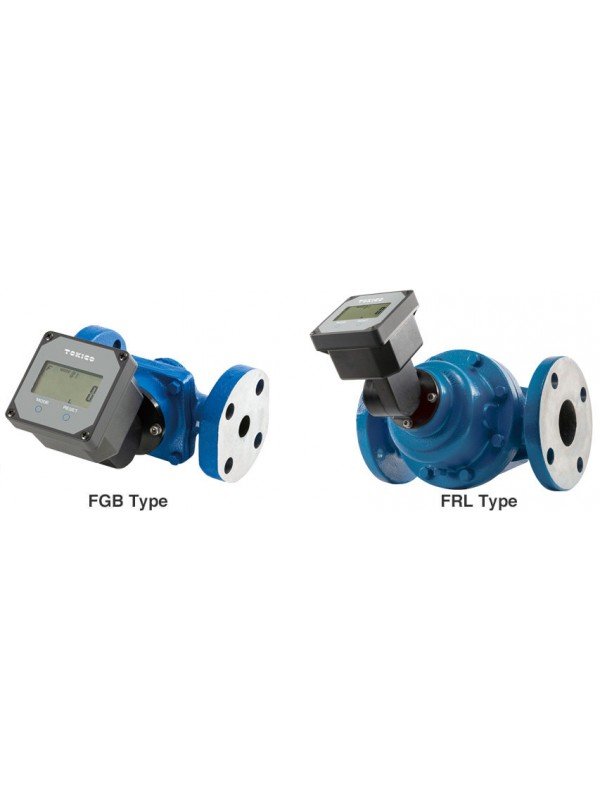

FGB Compact model for smaller connections and lower flow rates 15–25 mm
½–1 inch		 5–3,000 L/h Small fuel lines, burners, generators, machinery and low-volume oil-consumption measurement
FRL Standard model with the broadest connection-size and flow-range coverage 25–100 mm
1–4 inches		 0.07–160 m³/h Boiler fuel, diesel transfer, lubricant systems, industrial plants and general oil-flow measurement
FRY Robust model for demanding, higher-temperature oil service 40–50 mm
1½–2 inches		 0.1–15 m³/h Heavy oil, lubricating oil and applications requiring fluid temperatures up to 150 °C

Tokico 75 Series Model Hierarchy

SMALLER SIZE

Tokico FGB

Choose the FGB for compact pipelines, smaller connections and relatively low oil-flow rates.

STANDARD RANGE

Tokico FRL

Choose the FRL for the widest selection of connection sizes, flow ranges, materials and general industrial oil applications.

HIGHER TEMPERATURE

Tokico FRY

Choose the FRY for heavy oil, lubricating oil and demanding applications requiring operation at fluid temperatures up to 150 °C.

Tokico FGB Electronic Oil Flow Meter

The FGB is the compact member of the Electronic 75 Series. Its 15–25 mm connections and 5–3,000 L/h flow range make it suitable for smaller fuel lines, individual burners, generator fuel consumption, machinery lubrication and other low-volume oil-measurement points.

FGB SpecificationPerformance
Applicable Fluids Kerosene, light oil, heavy oil and lubricating oil
Accuracy ±0.5%
Flow-Rate Range 5–3,000 L/h
Connection Size 15–25 mm (½–1 inch)
Kerosene and Light-Oil Temperature 0–80 °C
Heavy-Oil Temperature 0–120 °C; maximum 80 °C for the 15 mm connection
Maximum Working Pressure 0.98 MPa
Maximum Fluid Viscosity 300 mPa·s
Flange Rating JIS 10K FF
Rotor PPS resin
O-Ring Fluorine rubber

Tokico FRL Electronic Oil Flow Meter

The FRL is the broad-range standard model in the series. It covers connection sizes from 25 to 100 mm and flow rates up to 160 m³/h, making it suitable for a wide variety of industrial fuel, oil-transfer and process-measurement duties.

FRL SpecificationPerformance
Applicable Fluids Gasoline, kerosene, light oil, heavy oil, lubricating oil and compatible fluids
Accuracy ±0.5%
Flow-Rate Range 0.07–160 m³/h
Connection Size 25–100 mm (1–4 inches)
Standard Fluid-Temperature Range -5–120 °C
Rotor-Dependent Temperature Limits Maximum 50 °C with AC7A roots; selected FC200 configurations can support up to 150 °C
Maximum Working Pressure Up to 2.5 MPa, depending on configuration
Maximum Fluid Viscosity 150,000 mPa·s
Main-Body Materials FC250, FCD400 or SCPH2, depending on configuration
Rotor Materials FC200, AC7A or ADC, depending on configuration
Piping Installation Horizontal or vertical

Tokico FRY High-Temperature Electronic Oil Flow Meter

The FRY is the robust Electronic 75 Series model for heavy oil and lubricating oil. It is particularly suitable when the process requires a dedicated meter construction for fluid temperatures up to 150 °C.

FRY SpecificationPerformance
Applicable Fluids Heavy oil, lubricating oil and compatible fluids
Accuracy ±0.5%
Flow-Rate Range 0.1–15 m³/h
Connection Size 40–50 mm (1½–2 inches)
Fluid-Temperature Range 0–150 °C
Maximum Working Pressure 1.0 MPa
Maximum Fluid Viscosity 300 mPa·s
Flange Rating JIS 10K FF
Main-Body Material FCD400
Rotor Material FC200
Rotor Shaft SUS416 with hard-chrome plating
Driving Gear SUS316
Piping Installation Horizontal or vertical

75XX, 75PX, 75XA and 75PA Output Options

The electronic suffix identifies the output configuration. Select it only after confirming the correct FGB, FRL or FRY measuring unit.

Electronic VariantPulse Output4–20 mA OutputRecommended Use
75XX No No Local flow indication and totalisation without an external output signal
75PX Yes No Remote totalisers, batch controllers and PLC pulse inputs
75XA No Yes Continuous flow-rate transmission to a PLC, recorder or control system
75PA Yes Yes Complete integration requiring both pulse and analog flow signals
Selection sequence: Choose the hydraulic measuring unit first—FGB, FRL or FRY—then choose the electronic output configuration: 75XX, 75PX, 75XA or 75PA.

Typical Tokico 75 Series Applications

  • Boiler Fuel Measurement: Monitoring diesel, light oil or heavy-oil consumption at industrial boilers.
  • Generator Fuel Consumption: Measuring fuel supplied to diesel generator sets and standby-power systems.
  • Fuel Transfer: Totalising oil transferred between tanks, day tanks and process equipment.
  • Burner Consumption: Measuring fuel use at individual burners, furnaces and thermal equipment.
  • Lubricating-Oil Systems: Monitoring oil delivery and consumption in industrial machinery and process plants.
  • Heavy-Oil Service: FRY measurement of heated heavy oil and lubricant at temperatures up to 150 °C.
  • Process Measurement: Supplying local indication, pulse totalisation or a 4–20 mA flow-rate signal to a plant control system.

Choosing the Correct Configuration

Measurement RequirementRecommended Selection
Small pipe and low flow rate FGB measuring unit
General industrial oil measurement FRL measuring unit
Wide pipe-size or flow-range requirement FRL measuring unit
Heavy oil or lubricant up to 150 °C FRY measuring unit
Local indication only 75XX electronic configuration
Pulse signal for a counter, PLC or batch controller 75PX electronic configuration
4–20 mA flow-rate signal 75XA electronic configuration
Both pulse and 4–20 mA signals 75PA electronic configuration

Important Selection Information

The final model must be selected using the actual fluid, minimum and maximum flow rate, operating and design temperature, operating and design pressure, viscosity, connection size, flange standard, piping orientation and required electrical output.

Where the fluid temperature approaches a model limit, the material and rotor configuration must also be confirmed. In particular, FRL temperature capability depends on the selected construction, while FRY is the dedicated 0–150 °C option for compatible heavy-oil and lubricating-oil applications.

Tokico Electronic 75 Series Supplier in Malaysia

Seacom Process Instruments supplies the Tokico FGB, FRL and FRY Electronic 75 Series oil flow meters in Malaysia. Our team can assist with selecting the measuring unit, connection size, flow range, temperature rating, material and electronic output configuration.

For accurate selection, provide the fluid name, normal and maximum flow rate, temperature, pressure, viscosity, connection size and required output signal when requesting a quotation.

Contact Seacom for Tokico 75 Series Selection

Download

  FRL/FRY catalogue - Oil, Diesel, Crude Palm Oil (CPO) Positive Displacement Flowmeter (Electronic) FRL/FRY (853.21k)
