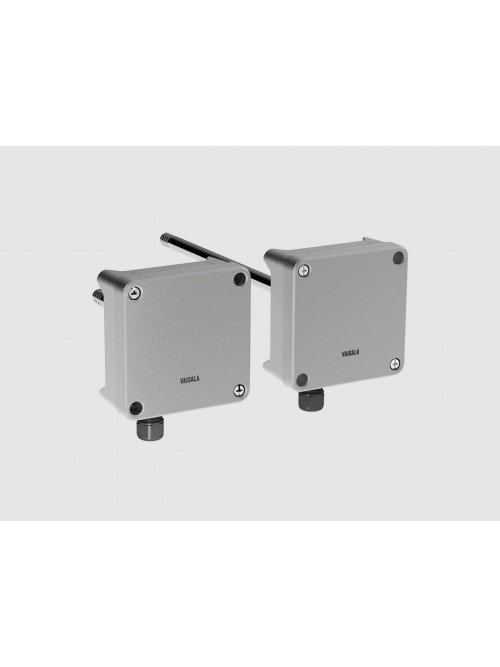

Vaisala HMD60 High-Performance Duct Humidity and Temperature Transmitter
The Vaisala HMD60 Series provides high-accuracy humidity and temperature measurement for demanding HVAC ducts and light-industrial applications.
- Humidity accuracy up to ±1.5% RH
- Temperature accuracy up to ±0.1 °C
- Analog, Modbus RTU and BACnet MS/TP options
- Robust IP66 metal enclosure

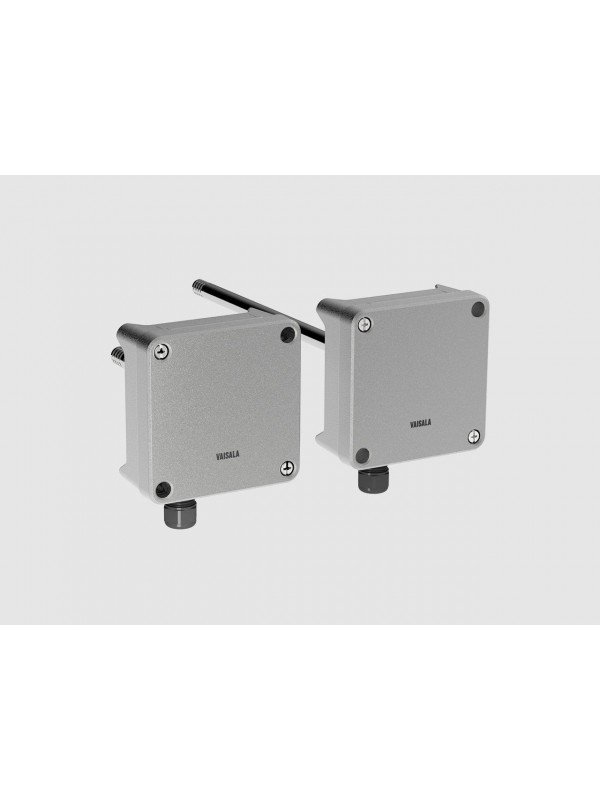

Vaisala HMD60 Duct Humidity and Temperature Transmitter
The Vaisala HUMICAP® HMD60 Series is designed for accurate humidity and temperature measurement in demanding HVAC ducts and light-industrial applications. Its high measurement performance, durable metal enclosure and resistance to dust and chemicals make it suitable for cleanrooms, laboratories, museums and critical air-handling systems.
The series includes analog humidity-and-temperature and temperature-only models, together with a digital model supporting Modbus RTU and BACnet MS/TP. Every HMD60 Series transmitter is supplied with a traceable calibration certificate.
High-Performance Duct Measurement
The HMD60 Series measures relative humidity from 0–100% RH with accuracy up to ±1.5% RH from 0–90% RH at 0 to +40 °C. Temperature accuracy reaches ±0.1 °C under specified conditions.
The stainless-steel probe operates from −40 to +80 °C, while the IP66 cast-aluminium enclosure protects the electronics in demanding plant-room and industrial environments. A sintered filter allows use at duct air speeds up to 50 m/s.
Analog, Modbus and BACnet Integration
Choose HMD62 for loop-powered 4–20 mA humidity and temperature outputs, TMD62 for temperature-only 4–20 mA output, or HMD65 when voltage outputs and digital building-automation communication are required.
The HMD65 provides two 0–10 V outputs and an isolated RS-485 interface. Modbus RTU or BACnet MS/TP can be selected and configured using on-board switches or Vaisala Insight PC software.
Calculated Humidity Parameters
In addition to relative humidity and temperature, configurable models can provide dew point, dew/frost point, absolute humidity, mixing ratio, wet-bulb temperature and enthalpy. Select the required parameters and output scaling according to the building-management or process-control system.
Key HMD60 Series Features
- 0–100% RH measurement range
- Humidity accuracy up to ±1.5% RH
- Temperature accuracy up to ±0.1 °C
- 4–20 mA, 0–10 V, Modbus RTU and BACnet MS/TP options
- IP66 cast-aluminium enclosure
- Stainless-steel duct probe
- HUMICAP® R2 or catalytic HUMICAP® 180V sensor
- Calculated humidity-parameter options
- Configuration and calibration using Vaisala Insight software
- Traceable calibration certificate included
Individual HMD60 Series Models
| Model | Measurement | Output | Recommended use |
|---|---|---|---|
| HMD62 | Humidity and temperature | 2 × 4–20 mA, loop powered | High-accuracy analog duct measurement |
| TMD62 | Temperature only | 1 × 4–20 mA, loop powered | High-accuracy duct temperature measurement |
| HMD65 | Humidity and temperature | 2 × 0–10 V plus Modbus RTU or BACnet MS/TP | Digital building automation or combined analog and network integration |
Quick selection: choose HMD62 for conventional 4–20 mA humidity and temperature signals, TMD62 when only temperature is required, or HMD65 for 0–10 V outputs with Modbus RTU or BACnet MS/TP communication.
Vaisala HMD60, HMD80 or HMD110?
All three families provide duct-mounted humidity and temperature measurement. Select the series according to the required accuracy, enclosure construction, output interface, calibration documentation and project budget.
| Selection point | Vaisala HMD60 Series | Vaisala HMD80 Series | Vaisala HMD110 Series |
|---|---|---|---|
| Product position | High-performance duct measurement | Cost-effective routine HVAC | Balanced high-accuracy HVAC |
| Humidity accuracy | Up to ±1.5% RH | Up to ±3% RH | Up to ±2% RH |
| Temperature accuracy | Up to ±0.1 °C | Up to ±0.3–0.5 °C, depending on model and conditions | Up to ±0.2 °C |
| Installation | Ventilation duct | Ventilation duct | Ventilation duct |
| Enclosure | IP66 cast aluminium | IP65 polymer enclosure | IP65 glass-reinforced polymer enclosure |
| Output options | 4–20 mA, 0–10 V, Modbus RTU or BACnet MS/TP | 4–20 mA or 0–10 V | 4–20 mA or Modbus RTU |
| Local display | No | Available on selected models | Optional |
| Calibration certificate | Traceable certificate included | Not supplied | Traceable certificate included |
| Best fit | Critical ducts, harsh plant rooms and projects requiring BACnet or the highest accuracy | Routine HVAC where economy is the priority | Demanding HVAC needing good accuracy, IP65 protection and calibration documentation |
Quick selection: choose HMD60 when the highest accuracy, a metal IP66 enclosure or BACnet is required. Choose HMD110 for a strong balance of accuracy, IP65 protection and traceable calibration. Choose HMD80 for routine HVAC projects where standard accuracy and lower cost are the priorities.
Common HMD60 Applications
- Cleanroom and laboratory ventilation systems
- Museums, archives and collections storage
- Pharmaceutical and medical-device facilities
- Critical supply-air and return-air ducts
- Industrial air-handling and drying systems
- Building automation using Modbus RTU or BACnet MS/TP
Information Required for Model Selection
Before ordering, confirm whether humidity and temperature or temperature only must be measured, the required accuracy, duct temperature, maximum air speed, output signal, communication protocol, calculated parameters, sensor type and calibration requirements.
For digital integration, provide the controller protocol, RS-485 network settings and available power supply. For analog models, confirm the controller input type, loop resistance and required measurement scaling.
Humidity Monitoring for Data Centres
Planning measurements for server rooms or air-handling systems? Explore sensor placement, relative humidity, dew point and monitoring-system requirements.
Read our data centre humidity and temperature monitoring guide
Vaisala HMD60 Supplier and Technical Support in Malaysia
Seacom Process Instruments supplies and supports the Vaisala HMD60 Series duct humidity and temperature transmitters in Malaysia for cleanrooms, laboratories, museums, pharmaceutical facilities, critical HVAC systems and light-industrial applications.
Our team can assist with HMD62, TMD62 or HMD65 selection, humidity sensor, output signal, Modbus or BACnet settings, duct installation, controller integration, commissioning and calibration planning.
Contact Seacom with your duct conditions, required accuracy, measurement parameters and building-automation interface so we can recommend a suitable HMD60 configuration.
