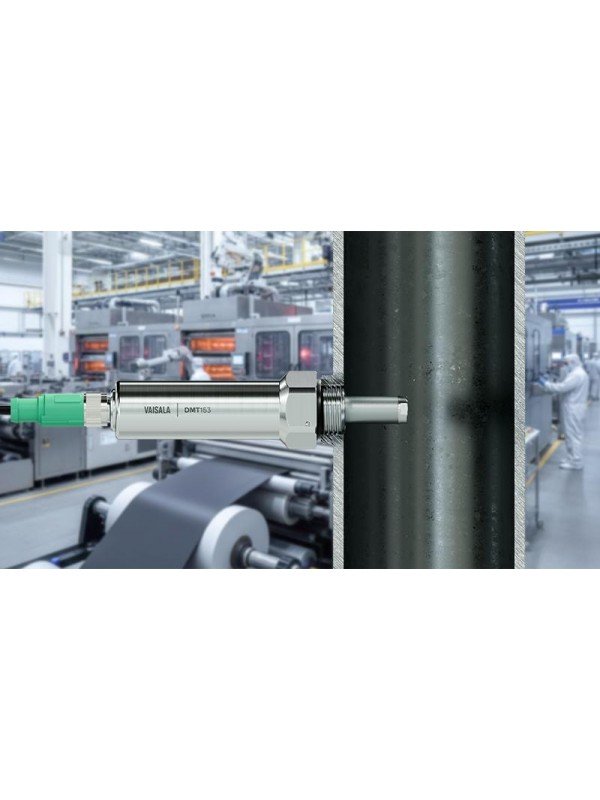

Vaisala DMT153 Dew Point Transmitter for Ultra-Dry Applications
The Vaisala DMT153 provides traceable low-dew-point measurement for ultra-dry industrial processes. It is the current replacement for the DMT152, with modern analog, Modbus and Vaisala Indigo connectivity.
- Calibrated dew-point range from −80 to −20 °C Td/f
- Dew-point accuracy up to ±2 °C Td/f
- Operating pressure from vacuum to 50 bar absolute
- Analog outputs or RS-485 with Modbus RTU
- Compatible with Vaisala Indigo transmitters and Indigo80
- DRYCAP® sensor with automatic calibration and sensor purge
Reliable Measurement for Ultra-Dry Industrial Processes
The Vaisala DRYCAP® DMT153 is designed for applications where a small increase in moisture can affect product quality, process stability or production yield. It measures dew point down to −80 °C Td/f and provides continuous data for process control, alarms, quality records and troubleshooting.
Its compact stainless-steel body fits OEM equipment and process installations. The transmitter can be installed directly into a suitable gas line or used with a Vaisala sampling cell when isolation, controlled sample flow or easier maintenance access is required.
Typical DMT153 Applications
| Application | What the DMT153 monitors | Why it matters |
|---|---|---|
| Battery manufacturing | Dry rooms, dry booths, glove boxes and process equipment | Helps detect moisture excursions that can affect sensitive electrode materials and cell quality |
| Semiconductor production | Process tools, specialty-gas lines and ultra-dry enclosures | Provides continuous moisture indication for tightly controlled manufacturing processes |
| Pure-gas systems | Air, nitrogen, argon, helium and oxygen | Supports moisture-quality verification during production, distribution and use |
| Compressed air | Critical low-dew-point dryer outlets and distribution lines | Confirms dryer performance and identifies moisture breakthrough |
| OEM equipment | Compact dryers, test chambers, isolators and research systems | Combines a small installation footprint with analog or digital integration |
Measurement Performance
| Specification | DMT153 performance |
|---|---|
| Calibrated dew/frost-point range | −80 to −20 °C Td/f |
| Non-calibrated output range | −100 to +20 °C Td/f |
| Accuracy from −80 to −40 °C Td/f | ±2 °C Td/f |
| Accuracy from −40 to −20 °C Td/f | ±3 °C Td/f |
| Typical dry-to-wet response | 2 seconds to 63%; 5 seconds to 90% |
| Typical wet-to-dry response | 30 seconds to 63%; 7.5 minutes to 90% |
| Measurement cycle | 1 second |
| Digital resolution | 0.01 °C Td/f |
| Calibration | SI-traceable calibration certificate included |
Available Measurement Outputs
- Dew point or frost point temperature in °C or °F
- Dew point over water in °C or °F
- Water concentration in ppmv or ppbv
- Water mass fraction in ppmw
Analog, Modbus or Indigo Integration
| Integration method | Available functions | Important selection point |
|---|---|---|
| Standalone analog mode | One scalable current channel and one scalable voltage channel | Choose 4–20 mA or 0–20 mA, plus 0–5 V or 0–10 V |
| Standalone digital mode | RS-485 communication using Modbus RTU | Analog and digital modes cannot operate simultaneously on a standalone DMT153 |
| Vaisala Indigo transmitter | Local display, additional outputs, logging and extended system connectivity depending on transmitter | Select the Indigo model according to output, display and network requirements |
| Vaisala Indigo80 | Portable display, configuration, diagnostics, data logging and field calibration | DMT153 is not compatible with the older MI70 handheld platform |
| Vaisala Insight software | Configuration, diagnostics, temporary monitoring and calibration adjustment | Use the correct service cable and a supported Windows computer |
Output-mode note: a standalone DMT153 operates in either analog mode or Modbus RTU mode. If the application requires simultaneous analog outputs and digital access, use a compatible Vaisala Indigo transmitter and confirm the complete system configuration before ordering.
Operating and Mechanical Specifications
| Specification | Available configuration |
|---|---|
| Operating temperature | −40 to +70 °C |
| Operating pressure | 0 to 50 bar absolute |
| Measurement gases | Air, nitrogen, argon, helium, oxygen and vacuum applications, subject to compatibility review |
| Protection rating | IP66 |
| Body material | AISI 316L stainless steel |
| Process connections | ISO G1/2, NPT 1/2 or UNF 3/4-16 |
| Electrical connector | M12 five-pin A-coded male |
| Dimensions | 30 × 33 × 136.5 mm |
| Weight | Approximately 190 g |
| Nominal supply | 24 VDC; permitted range depends on output mode and operating conditions |
DRYCAP® Stability in Demanding Conditions
The DMT153 uses the Vaisala DRYCAP® 180U sensor. Automatic calibration reduces possible dry-end drift, while sensor purge heats the sensor to remove certain contaminants that could affect long-term performance. The sensor also tolerates temporary condensation and recovers when the measurement conditions become dry again.
The transmitter is supplied with factory calibration and a traceable certificate. A 24-month calibration reminder is enabled by default, although the appropriate interval should be based on the application, quality requirements and measurement conditions.
Replacing a Vaisala DMT152
The DMT153 is the current successor to the discontinued DMT152. It retains the established DRYCAP® 180U sensor, measurement range and core performance while adding Modbus RTU, Vaisala Indigo compatibility, Insight software support and an industrial M12 connector.
| Migration point | DMT152 | DMT153 |
|---|---|---|
| Product status | Being discontinued | Current replacement |
| Calibrated range | −80 to −20 °C Td/f | −80 to −20 °C Td/f |
| Sensor | DRYCAP® 180U | DRYCAP® 180U |
| Digital protocol | RS-485 | Modbus RTU over RS-485 |
| Portable indicator | MI70 platform | Indigo80 |
| Software | Legacy configuration tools | Vaisala Insight PC software |
| Electrical connection | Two M8 four-pin connectors | One M12 five-pin connector |
| Process threads | Included a 5/8-18 UNF option | G1/2, NPT 1/2 or UNF 3/4-16 |
DMT152 replacement check: DMT153 is the functional successor, but it is not a drop-in electrical replacement. Review the connector, wiring, output mode, process thread, handheld indicator and receiving-system configuration before changing an installed DMT152.
Compare DMT143, DMT132 and DMT153
| Selection point | DMT143 / DMT143L | DMT132 | DMT153 |
|---|---|---|---|
| Current status | Current | Current | Current; successor to DMT152 |
| Best application | Small dryers, glove boxes, compressed air and general OEM integration | Refrigerant dryers and economical dryer-performance monitoring | Very-low-dew-point OEM and industrial applications |
| Calibrated dew-point range | Configuration-dependent; family coverage extends from −70 to +60 °C Td/f | −30 to +50 °C Td/f | −80 to −20 °C Td/f |
| Typical accuracy | Up to ±2 °C Td/f | Up to ±1 °C in the refrigerant-dryer range | ±2 °C from −80 to −40 °C Td/f; ±3 °C from −40 to −20 °C Td/f |
| Sensor technology | DRYCAP® | HUMICAP® | DRYCAP® |
| Pressure capability | Up to 20 bar standard; selected DMT143 configurations up to 50 bar | Up to 20 bar | Up to 50 bar absolute |
| Primary output options | Analog output and RS-485 Modbus RTU | Two-wire 4–20 mA; service RS-485 | Analog output or RS-485 with Modbus RTU |
| Portable and transmitter compatibility | Indigo80 handheld indicator | HM70 or DM70 handheld for spot-checking | Indigo transmitters and Indigo80 handheld indicator |
| Best choice when | You need a small, versatile transmitter for dry industrial gas | You need cost-effective verification of a refrigerant dryer | You need traceable measurement down to −80 °C Td/f with modern connectivity |
Choose by operating range: DMT132 is intended mainly for refrigerant dryers, DMT143/DMT143L provide compact and flexible OEM dew-point measurement, and DMT153 is the current choice for demanding ultra-dry applications down to −80 °C Td/f.
Vaisala DMT153 Supplier and Technical Support in Malaysia
Seacom Process Instruments supplies and supports the Vaisala DMT153 Dew Point Transmitter in Malaysia for battery manufacturing, semiconductor production, pure-gas systems, critical compressed air, glove boxes, dry chambers and OEM equipment.
Our team can assist with measurement-point selection, process connections, sampling cells, analog or Modbus configuration, Indigo transmitter integration, Indigo80 portable use, installation review and calibration planning.
Contact Seacom with your required dew-point range, gas type, process pressure and temperature, connection thread, output signal, equipment layout and calibration requirements so we can recommend a suitable DMT153 configuration.
