Vaisala DMT345 and DMT346 High-Temperature Dew Point Transmitters – Discontinued
The Vaisala DMT345 and DMT346 provided direct dew-point measurement in hot industrial drying processes. Both models are discontinued and replaced by Vaisala DMP5 or DMP6 smart probes with an Indigo transmitter.
- DMT345: former solution for processes up to +180 °C
- DMT346: former solution for very hot processes up to +350 °C
- DMT345 replacement: DMP5 with a suitable Indigo transmitter
- DMT346 replacement: DMP6 with a suitable Indigo transmitter
- Direct in-process measurement without a conventional sampling system
- Contact Seacom for mechanical and electrical migration review

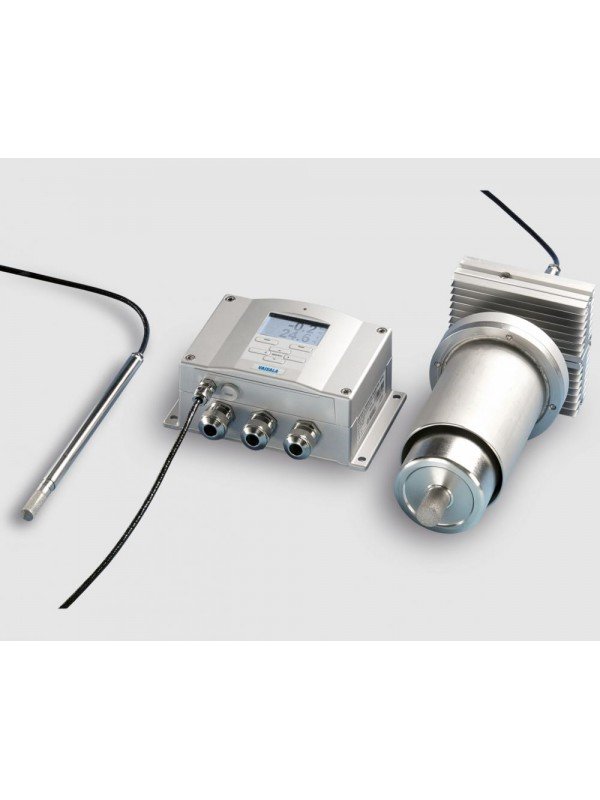

Vaisala DMT345 and DMT346 High-Temperature Dew Point Transmitters
The Vaisala DMT345 and DMT346 provided direct dew-point measurement in hot industrial drying processes. Both models are discontinued and replaced by Vaisala DMP5 or DMP6 smart probes with an Indigo transmitter.
- DMT345: former solution for processes up to +180 °C
- DMT346: former solution for very hot processes up to +350 °C
- DMT345 replacement: DMP5 with a suitable Indigo transmitter
- DMT346 replacement: DMP6 with a suitable Indigo transmitter
- Direct in-process measurement without a conventional sampling system
- Contact Seacom for mechanical and electrical migration review
Product status: The Vaisala DMT345 and DMT346 are discontinued. Vaisala identifies DMP5 and DMP6 with an Indigo500 Series transmitter as their current equivalents: use DMP5 for high-temperature processes up to +180 °C and DMP6 for very-high-temperature processes up to +350 °C.
Legacy Direct Measurement in Hot Industrial Processes
The Vaisala DMT345 and DMT346 were developed for dew-point and humidity measurement in industrial drying processes where ordinary probes cannot tolerate the process temperature. Direct installation avoided long sampling lines, sample cooling and trace heating, helping the measurement represent the real conditions inside the process.
Typical applications included industrial ovens, kilns, dryers, food processing, ceramics, timber drying and other hot, low-humidity processes. The correct model depended primarily on the process-temperature range and the required probe installation.
DMT345 or DMT346?
| Selection point | DMT345 | DMT346 |
|---|---|---|
| Legacy application | Hot and dry industrial processes | Very-hot industrial processes |
| Process-temperature capability | Up to +180 °C | Best performance from approximately +140 to +350 °C |
| Probe arrangement | Long stainless-steel probe with adjustable installation depth | Probe installed through a passive cooling set |
| Cooling requirement | No separate cooling system normally required | Passive cooling set supplied as part of the measurement arrangement |
| Current equivalent | DMP5 + Indigo transmitter | DMP6 + Indigo transmitter |
Current Replacement: DMP5 or DMP6
| Selection point | DMP5 | DMP6 |
|---|---|---|
| Replaces | DMT345 | DMT346 |
| Best application | Direct measurement in hot processes, ovens and dryers | Direct measurement in very-hot processes and furnaces |
| Probe-head operating range | −40 to +180 °C | +100 to +350 °C for direct high-temperature operation |
| Dew-point range | −40 to +100 °C Td/f | −25 to +100 °C Td/f |
| Dew-point accuracy | Up to ±2 °C Td/f | Up to ±2 °C Td/f |
| Temperature measurement | 0 to +180 °C; ±0.4 °C at +100 °C | Cooling arrangement protects the sensor; select a separate temperature measurement if required by the application |
| Mechanical arrangement | Long probe; optional flange and adjustable insertion depth | Probe with passive cooling set and configurable cooling fins |
| Standalone communication | Modbus RTU over RS-485 | Modbus RTU over RS-485 |
| Portable and service tools | Indigo80 and Vaisala Insight software | Indigo80 and Vaisala Insight software |
Explore the Vaisala DMP5 for processes up to +180 °C
Explore the Vaisala DMP6 for processes up to +350 °C
DMP6 Passive Cooling for Very-Hot Processes
The DMP6 uses a passive cooling set to conduct heat away from the probe head and keep the sensor within its permitted temperature. The system has no moving parts and requires no cooling water, compressed air or separate electrical supply.
The cooling-fin arrangement must match the actual process temperature and air movement. High gas velocity can change the cooling performance, so the probe should be commissioned under representative conditions and its diagnostic values checked after stabilisation.
DMP6 installation limit: the process may reach +350 °C, but the sensor itself must remain within its permitted temperature. Cooling-set installation, insertion depth, cooling fins and process velocity must therefore be reviewed as one complete arrangement.
Selecting the Indigo Transmitter
DMP5 and DMP6 include Modbus RTU and can operate as standalone smart probes. Add an Indigo transmitter when the installation requires a local display, analog signals, relays, additional power options, data logging or Ethernet connectivity.
| Transmitter | Typical reason to select it | Main system features |
|---|---|---|
| Indigo201 | Compact single-probe installation requiring analog outputs and relays | Three analog outputs and two relays |
| Indigo202 | Compact single-probe installation using Modbus RTU and relays | Digital communication and two relays |
| Indigo300 | Rugged local display with straightforward analog integration | Metal enclosure, colour display and up to three analog outputs |
| Indigo510 | Flagship single-probe installation | Two isolated analog outputs, Ethernet web interface and Modbus TCP |
| Indigo520 | Dual-probe or relay-intensive installation | Two probe inputs, four isolated analog outputs, two relays, logging and Modbus TCP |
| Indigo80 | Portable commissioning, spot-checking and service work | Connect up to two compatible probes for display, diagnostics, data logging, calibration and adjustment |
Explore Vaisala Indigo201 and Indigo202 transmitters
Explore the Vaisala Indigo300 transmitter
Compare Vaisala Indigo510 and Indigo520 transmitters
Explore the Vaisala Indigo80 handheld indicator
Other Vaisala DMP Probes Available from Seacom
| Probe | Main strength | Typical application | Product page |
|---|---|---|---|
| DMP1 | Fixed probe for low-humidity rooms | Battery dry rooms and semiconductor areas | View Vaisala DMP1 |
| DMP5 | Long probe for temperatures up to +180 °C | Ovens, dryers and high-temperature processes | View Vaisala DMP5 |
| DMP6 | Passive cooling for temperatures up to +350 °C | Very-hot dryers, ovens and furnaces | View Vaisala DMP6 |
| DMP7 | Short remote probe for limited spaces | Compact equipment, dry rooms and semiconductor tools | View Vaisala DMP7 |
| DMP8 | Adjustable insertion for pressurised pipelines | Compressed air and pressurised industrial gases | View Vaisala DMP8 |
Information Needed for Replacement
- Complete DMT345 or DMT346 order code
- Normal, minimum and maximum process temperatures
- Required dew-point and temperature ranges
- Gas composition, pressure and flow velocity
- Process-wall and insulation thickness
- Existing flange, insertion depth and available clearance
- Analog outputs, relays and communication requirements
- Power supply, display, data logging and alarm requirements
The legacy probe flange or opening may not provide a direct mechanical fit for the new probe. Check insertion depth, sealing, cable routing and the surrounding temperature before manufacturing an adapter or modifying the process connection.
Existing DMT345 and DMT346 Installations
For an operating transmitter, retain its order code, probe arrangement, output scaling, relay settings, communication configuration, installation drawings and calibration history. These details are necessary for service support and for specifying the correct DMP and Indigo replacement.
A functioning legacy transmitter does not need to be removed solely because it is discontinued. Plan the change according to calibration status, spare availability, shutdown access and the risk that measurement failure presents to production.
Vaisala DMT345 and DMT346 Replacement Support in Malaysia
Seacom Process Instruments supports existing Vaisala DMT345 and DMT346 installations in Malaysia and supplies current DMP5, DMP6 and Indigo transmitter configurations for industrial dryers, ovens, kilns and other high-temperature processes.
Our team can assist with process-temperature review, cooling-set selection, insertion depth, mounting flanges, Indigo transmitter configuration, analog and digital integration, commissioning and calibration planning.
Contact Seacom with the legacy model code, process-temperature range, dew-point requirement, gas velocity, process dimensions, outputs and control-system details so we can assess the appropriate DMP5 or DMP6 replacement arrangement.
