Sato Chart Paper and Replacement Recording Pens
Find Sato recording chart paper and cartridge pens using your recorder model, existing part number or printed chart code. Seacom helps match the correct measurement scale, recording period and pen colour.

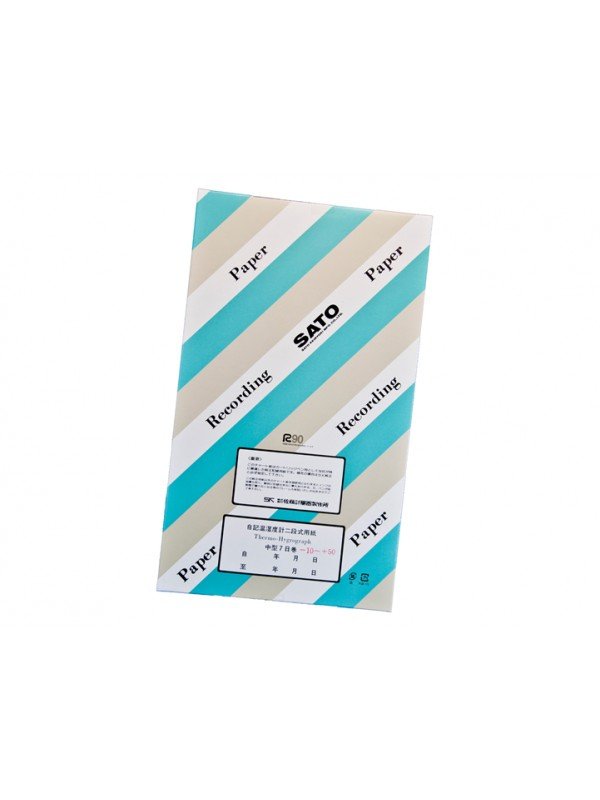

Sato Chart Paper — Current and Previous References
The table combines current ordering numbers with confirmed previous references. All charts listed have a humidity scale of 0–100% RH.
| Current reference / chart code | Previous reference / chart code | Temperature scale | Period / packing |
|---|
7210-80
NTH011540 |
7210-60
C241540 |
−15 to 40°C |
1 day
400 sheets/box |
7210-82
NTH071540 |
7210-62
C1681540 |
−15 to 40°C |
7 days
55 sheets/box |
7210-84
NTH321540 |
7210-64 |
−15 to 40°C |
32 days
55 sheets/box |
| 7211-60 |
No replacement mapping listed here |
−10 to 50°C |
1 day
400 sheets/box |
| 7211-62 |
No replacement mapping listed here |
−10 to 50°C |
7 days
55 sheets/box |
| 7211-64 |
No replacement mapping listed here |
−10 to 50°C |
32 days
55 sheets/box |
Paper material change: Sato discontinued the 7210-60 / C241540 and 7210-62 / C1681540 clean-paper charts and introduced the ordinary-paper alternatives 7210-80 / NTH011540 and 7210-82 / NTH071540 from January 2025. If your application requires clean paper, confirm the material requirement before ordering.
If your existing chart carries an SKN/C marking, 7210-64 or another older reference, send us a clear photograph of the complete code and printed scale so we can check the appropriate alternative.
Matching Charts to the Recorder
| Sato recorder | Chart references |
|---|
| 7210-00 — Sigma II, quartz type |
7210-80, 7210-82 and 7210-84 |
| 7215-00 — Sigma II, spring-wound type |
7210-80 and 7210-82 |
| 7211-00 — Sigma II, quartz type |
7211-60, 7211-62 and 7211-64 |
Match the chart period to the recorder’s drum-speed setting. Confirm the temperature scale as well as the instrument model before selecting the paper.
Sato Recording Pens — Combined References
The individual pen references are grouped together below. The 12-piece packs have separate ordering numbers.
| Pen references | Ink colour | Pack quantity |
|---|
| 7238-04 / 7210-90 |
Violet |
1 pen |
| 7238-02 |
Violet |
12 pens |
| 7238-08 / 7210-92 |
Red |
1 pen |
| 7238-06 |
Red |
12 pens |
Compatible Instrument Families for These Pens
- Sigma II and Sigma series
- Mini-Star, Mini-Alpha and Mini-Cube series
- Aurora-90 series
- Ratona series
- Event Recorder
This list applies to the recording pens. Chart paper must be matched separately to the recorder model, measurement scale and recording period.
Other Sato Chart Paper
For Mini-Cube, Mini-Alpha, Mini-Star, Aurora, thermograph, hygrograph or barograph charts, send us the recorder model and existing chart reference to check the required paper and availability.
Need Help Identifying Your Chart or Pen?
- Recorder: provide the model number or a photograph of the nameplate.
- Chart: show the complete printed code, measurement scale and recording period.
- Pen: provide the existing reference, ink colour and pack quantity.
- Quantity: specify the number of boxes or individual pens required.
