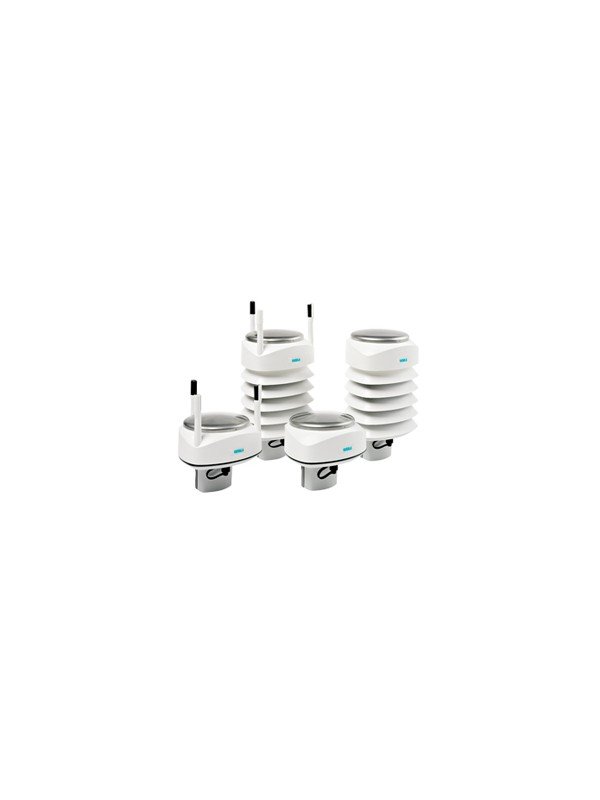

Vaisala WXT530 Series Multi-Parameter Weather Transmitter

Vaisala WXT530 Series Weather Transmitter

The compact Vaisala WXT530 Series measures wind, precipitation, barometric pressure, air temperature and relative humidity in selectable combinations for industrial and environmental weather monitoring.

  • Choose one to six essential weather parameters
  • Ultrasonic wind and acoustic precipitation measurement
  • No moving parts and low maintenance requirements
  • Modbus RTU, SDI-12, ASCII and NMEA communication options

Vaisala WXT530 Compact Multi-Parameter Weather Transmitter

The Vaisala WXT530 Series is a compact family of solid-state weather transmitters for measuring wind speed, wind direction, liquid precipitation, barometric pressure, air temperature and relative humidity. Six model combinations allow users to purchase only the weather parameters required by the application.

Unlike a conventional automatic weather station assembled from several separate sensors, the WXT530 integrates the selected measurements into one lightweight instrument. Its solid-state design has no moving wind or rain-measurement parts, helping reduce mechanical wear, routine maintenance and installation complexity.

The fully equipped WXT536 measures all six parameters. Other models provide dedicated rain, wind, pressure-temperature-humidity, or combined measurement packages.

Why Choose the Vaisala WXT530 Series?

  • Selectable Measurement Package: Choose the WXT531, WXT532, WXT533, WXT534, WXT535 or WXT536 according to the parameters required.
  • Six Essential Weather Parameters: The complete WXT536 measures air pressure, air temperature, relative humidity, precipitation, wind speed and wind direction.
  • No Moving Parts: Ultrasonic wind and acoustic precipitation technologies avoid rotating cups, vanes and tipping mechanisms.
  • Low Maintenance: Solid-state sensors and a compact enclosure support dependable unattended operation.
  • Flexible Integration: Digital interfaces include RS-232, RS-485, RS-422 and SDI-12, with Modbus RTU, ASCII and NMEA protocol options.
  • Industrial Wind Output: The WXT532 can be configured with 0–20 mA or 4–20 mA outputs for wind speed and direction.
  • Expandable Weather Hub: WXT536 analog inputs can accept compatible external solar-radiation, temperature, voltage or tipping-bucket sensors.
  • Outdoor Protection: Rated IP65 without the mounting kit and IP66 when installed with the specified mounting kit.
  • Low Power Consumption: Suitable for remote and solar-powered installations when the complete power system is correctly designed.

WXT530 Model Selection

ModelPressure, Temperature and HumidityPrecipitationWindRecommended Use
WXT531 — Yes — Compact rain and hail measurement
WXT532 — — Yes Wind speed and wind direction
WXT533 — Yes Yes Wind and precipitation monitoring
WXT534 Yes — — Pressure, temperature and humidity monitoring
WXT535 Yes Yes — PTU and precipitation monitoring
WXT536 Yes Yes Yes Complete six-parameter weather monitoring

Selection guidance: Choose WXT532 when only wind speed and direction are required. Choose WXT536 for a complete compact weather station. WXT533 is suitable when wind and rain are needed without pressure, temperature and humidity, while WXT534 provides the PTU parameters without wind or precipitation.

Solid-State Vaisala Measurement Technologies

MeasurementTechnologyOperational Benefit
Wind Speed and Direction Vaisala WINDCAP ultrasonic sensors No rotating cups or mechanical wind vane
Precipitation Vaisala RAINCAP acoustic impact sensor No collecting bucket that can flood or clog
Barometric Pressure Vaisala BAROCAP sensor Stable capacitive pressure measurement
Relative Humidity Vaisala HUMICAP R2 sensor Established capacitive humidity measurement
Air Temperature Resistive platinum sensor Accurate ambient-temperature measurement

Wind Measurement Performance

SpecificationPerformance
Wind-Speed Observation Range 0–60 m/s
Wind-Speed Reporting Range 0–75 m/s
Wind-Speed Accuracy ±3% at 10 m/s
Wind-Speed Resolution 0.1 m/s; km/h, mph and knots also available
Wind Direction 0–360° azimuth
Wind-Direction Accuracy ±3° at 10 m/s
Wind-Direction Resolution 1°
Response Time 0.25 seconds
Reported Variables Average, maximum and minimum

Pressure, Temperature and Humidity Performance

ParameterRangeAccuracy
Barometric Pressure 500–1100 hPa ±0.5 hPa at 0 °C to +30 °C and 600–1100 hPa; ±1 hPa across the wider specified temperature range
Air Temperature -52 °C to +60 °C ±0.3 °C at +20 °C for the sensor element
Relative Humidity 0–100% RH ±3% RH from 0–90% RH; ±5% RH from 90–100% RH

The PTU module used for pressure, temperature and humidity is replaceable, simplifying scheduled maintenance of models equipped with these measurements.

Precipitation and Hail Measurement

The RAINCAP sensor detects the acoustic impact of individual raindrops on its stainless-steel surface. The transmitter calculates accumulated rainfall, current and peak intensity, rain-event duration and hail-related values without a conventional tipping bucket.

SpecificationPerformance
Collecting Area 60 cm²
Rainfall Resolution 0.01 mm
Daily Accumulation Field Accuracy Better than 5%, weather dependent
Rain-Intensity Observation Range 0–200 mm/h; broader reporting with reduced accuracy
Rain-Intensity Resolution 0.1 mm/h
Rain Duration Resolution 10 seconds
Hail Detection Cumulative hits, current intensity, peak intensity and event duration

Communication and System Integration

Interface or ProtocolApplication
Modbus RTU PLC, SCADA, industrial automation and control-system integration
SDI-12 Low-power environmental data loggers and remote monitoring stations
ASCII Automatic or Polled General serial data collection and custom integrations
NMEA 0183 Marine and compatible navigation-system integration
RS-232, RS-485 or RS-422 Selectable serial electrical interfaces according to system architecture
0–20 mA or 4–20 mA Optional WXT532 industrial analog output for wind speed and direction; digital communication is unavailable when this option is used

WXT536 External Sensor Inputs

Selected WXT536 configurations can operate as a compact weather-parameter hub by digitising signals from compatible third-party sensors.

  • Solar-radiation sensor input
  • 0–2.5 V, 0–5 V or 0–10 V voltage input
  • Pt1000 external temperature input
  • Tipping-bucket rain-gauge input

Confirm the required external sensor, input range, cable and configuration before ordering.

Operating and Mechanical Specifications

SpecificationValue
Operating Environment Outdoor use
Operating Temperature -52 °C to +60 °C
Storage Temperature -60 °C to +70 °C
Operating Humidity 0–100% RH
IP Rating IP65 without mounting kit; IP66 with the specified mounting kit
Weight Approximately 0.5 kg for WXT531–WXT533; approximately 0.7 kg for WXT534–WXT536
Operating Voltage 6–24 V DC, subject to specified tolerance and selected configuration
Heated Option Available for installations where snow or ice accumulation may occur; requires a correctly sized separate heating supply

Common WXT530 Applications

  • Industrial Sites: Weather input for plant operations, alarms and environmental records.
  • Ports and Maritime Facilities: Wind and weather monitoring for exposed coastal operations.
  • Renewable Energy: Local weather information for solar and wind-energy sites.
  • Agriculture: Compact agro-meteorological measurement and irrigation support.
  • Construction and Cranes: Wind monitoring for operational awareness and site records.
  • Environmental Monitoring: Multi-parameter input for remote monitoring networks and research.
  • Building Automation: Outdoor reference data for HVAC and facility control.
  • Sports and Events: Local wind, rain and atmospheric-condition measurement.
  • Fire Weather: Weather observations supporting site-specific risk assessment.

Installation and Ordering Considerations

  • Select the WXT530 model according to the exact required parameter combination.
  • Install the transmitter in an open location away from buildings, trees and other airflow obstructions.
  • Align the wind transmitter correctly to true or magnetic north according to the project convention.
  • Confirm the mast, mounting kit, cable length, surge protection and grounding requirements.
  • Select the communication interface and protocol that match the data logger, PLC or monitoring platform.
  • Specify the heated version and adequate heating power where snow or ice is possible.
  • For remote sites, calculate the complete energy budget before selecting solar panels and batteries.

Vaisala WXT530 Supplier in Malaysia

Seacom Process Instruments supplies and supports the Vaisala WXT530 Series weather transmitter in Malaysia. Our team can assist with model selection, measurement parameters, communication protocol, mounting accessories, cabling, surge protection and system integration.

Contact Seacom for a WXT531, WXT532, WXT533, WXT534, WXT535 or WXT536 configuration suitable for industrial, environmental, maritime, agricultural, renewable-energy or building-automation weather monitoring.
