Leak Detector

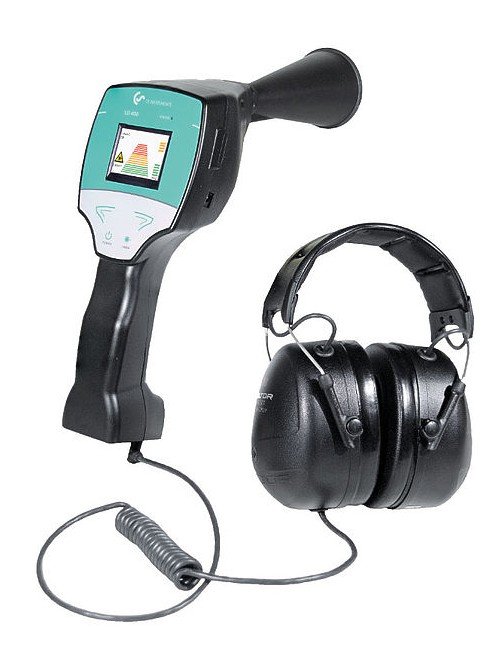

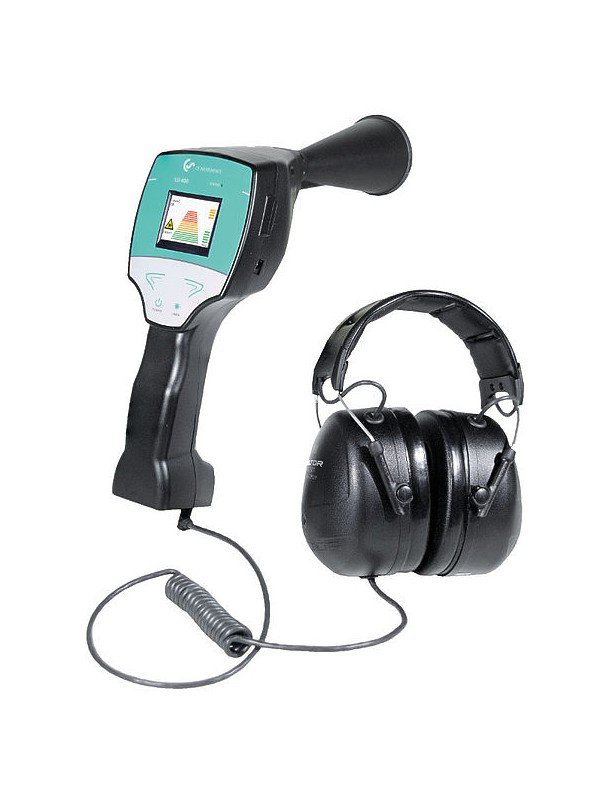

If gases escape through leaks in piping systems (e.g. untight screwed connections, corrosions and so on) ultrasonic noises are generated. By means of LD 400 even the smallest leakages which cannot be heard by the human ear can be detected even from distances of several meters. LD 400 transforms the inaudible signals into a frequency which can be identified. By means of the comfortable sound-proof headset these noises can be realized even in extremely noisy environments.

Due to a particularly designed acoustic trumpet a better focusing of the acoustic waves is achieved. This acoustic trumpet acts like a directional microphone while interfering ambient noises are cushioned and the accurate localization of the leakages is eased even in areas which are difficult to access.

Model Leak Detector LD400
Fixed / Portable Portable
Tolerance Maximum temperature: 40 deg C
Maximum pressure:
Remarks Special features of LD 400

- Robustness and the little weight ensure a fatigue-proof use in industrial environments

- Improved detection of leaks with optional acoustic trumpet

- Modern lithium-ion battery with high capacity, external recharger

- Minimum operating time 10 h

- Easy operation via keypad

Specific References
