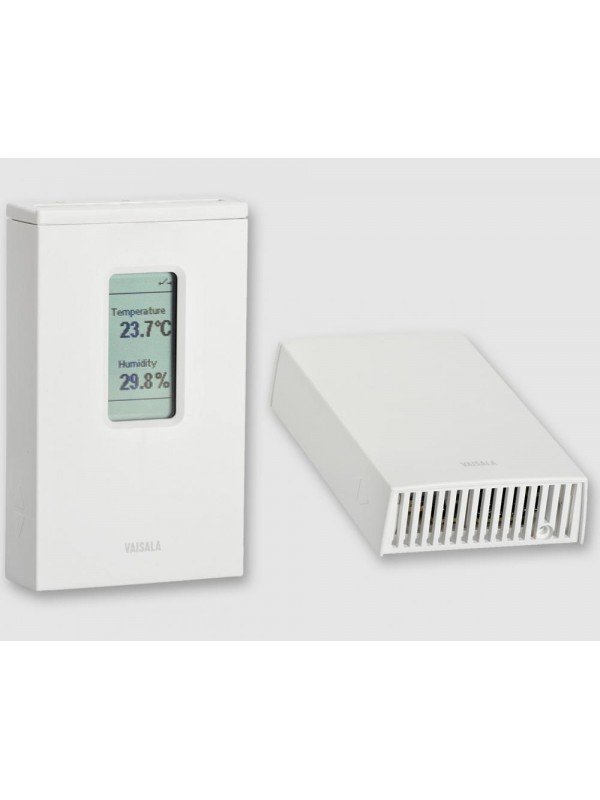

High Accuracy Humidity & Temperature Transmitter - Wall Mounted With Display
The Vaisala HMW90 Series has been complemented with four new models: TMW92 and TMW93 temperature transmitters for applications where only temperature measurement is needed and the configurable HMW90 and TMW90 for special scalings. The HMW90 and TMW90 transmitters are available in four color options: standard white, black, grey and ivory.
|Fixed / Portable||Fixed|
|Measurement Range||0-100% rH, -5 to 55 deg C|
|Accuracy||+-1.7% rH, +-0.2 deg C|
|Output||4-20mA, 0-5V, 0-10V|
|Remarks||TMW92: T-only 2-wire, current output
TMW93: T-only 3-wire, voltage output
TMW90: T-only configurable model
HMW92: RH+T 2-wire, current output
HMW92D: RH+T 2-wire, current output with display
HMW93: RH+T 3-wire, voltage output
HMW93D: RH+T 3-wire, voltage output with display
HMW90: RH+T configurable model
12 other products in the same category:
Vaisala HMT330 series are easy-to-use transmitters for demanding industrial and air conditioning applications. The transmitters measure relative humidity and temperature and from these calculate dew point and wet bulb temperature, mixing ratio and absolute humidity. They can be configured to the customer's requirements on the production line, but configuration and parameters can also be set by the user. The series has both analogue and serial outputs as well as several options: different cable lengths, power supply modules and serial interface modules as well as a local display.
All Dickson chart recorders feature a large 8″ or 6" chart and user-selectable recording timeframes (1-day, 1-week, 1-month) and ranges.
Choose from the following features:
- Replaceable Sensor
- Audible Alarms
- K-Thermocouple Probe
- Battery Operation
The Vaisala 2000 recorder combines internal temperature and RH sensors with an optional external channel for either current or voltage inputs for recording parameters such as differential pressure, CO2, level, particles, or conductivity. The Vaisala 2000 recorder can include a Boolean channel for door switches or alarm contacts.
The new Vaisala HM70 portable humidity meter provides fast and convenient spot-checks of relative humidity and temperature. Apart from that, it can be also used to calibrate other Vaisala humidity instruments such as HMT330, HMT120, HMT130, HMW90, HMD90, HMW110, HMD110
The Vaisala HMT140 wireless data logger is designed for humidity, temperature and analog signal monitoring in warehouses, freezer and cryogenic farms, laboratories, blood banks and many other life science applications.
The Vaisala HMT140 incorporates Vaisala HUMICAP® technology to measure relative humidity and temperature accurately and reliably. The Vaisala HUMICAP sensor is resistant to dust and most chemicals. Alternatively, the Vaisala HMT140 can connect to Resistance Temperature Detectors (RTDs), Voltage, Current and Contact sensors, making the Vaisala HMT140 the most versatile Vaisala data logger for life science applications.
The Vaisala HUMICAP® Digital Humidity Module HMM105 is an open frame module for integration into environmental chambers. The modules provide an I2C output
for relative humidity (RH) or dew point (Td). The module consists of a detachable probe assembly – a probe head with M10x1 threads and a flex cable – and the module circuit board. The probe assembly is 30 cm in length. The module incorporates the Vaisala HUMICAP® 180R sensor which ensures excellent measurement accuracy.
Sato Thermohygrograph NSII-Q (as known as Sato Thermohygrograph SigmaII) comes with all transparent acryl-resin made case provides a full view of the chart paper without opening the case
* The required time cycle is selected by simply pushing the changeover switch
* Recording charts is made by non-dust paper and it is with holes for easy binding in a file .
The Vaisala HM40 is a compact, robust and affordable hand-held meter for various portable measurement applications. It is an ideal spot-checking tool that is easy to use and provides reliable measurement. The HM40 hand-held utilizes the interchangeable HMP110 probe that was launched earlier this year and is equipped with the latest humidity sensor technology, the HUMICAP® 180R.
Model available: HM41, HM42, HM45, HM46
Sekonic ST-50M is microprocessor based thermohygrograph. Apart from measuring and recording temperature and relative humidity, it also has large LCD display and alarm output. Remote application is applicable with its electronic remote sensor. ST-50M comes with extra memory slot for digital recording and time printing on chart.
